In the world of metal fabrication and manufacturing, machine tools play a pivotal role in shaping and forming materials with precision and efficiency. Among these tools, punch presses and stamping presses are two foundational machines that often serve similar end goals—creating holes, shapes, and features in sheet metal. However, they have distinct mechanisms, capabilities, and optimal use cases that can dramatically impact production quality, speed, and cost. This article demystifies the core differences between punch presses and stamping presses, compares their operating principles, discusses typical applications, and provides practical guidance for selecting the right machine for a given job. By understanding these differences, engineers, shop managers, and procurement professionals can make informed decisions that align with project requirements, throughput targets, and long-term maintenance considerations.
A punch press is a machine designed to create holes or shapes by driving a punch through a workpiece into a die. The primary action is a rapid linear punch that compresses material to shear it and form the desired geometry. Punch presses are commonly used for high-speed, repetitive punching operations and are often configured with a single punch-and-die set or multiple stations that allow parallel or sequential punching actions.

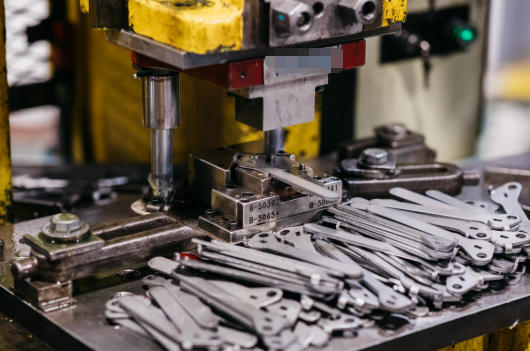

A stamping press, more broadly, refers to any press used in stamping operations, where a press is used to form sheet metal through a die set that may include punches, dies, and auxiliary tooling. Stamping presses encompass a wide range of architectures, including mechanical presses, hydraulic presses, and servo-driven presses. Stamping often involves multiple forming steps within a single stroke or a sequence of strokes, producing more complex parts such as protrusions, bends, flanges, and intricate profiles.
Note: In common industry practice, the term “punch press” is sometimes used interchangeably with “stamping press,” particularly in light- to mid-duty contexts. To avoid confusion, this article treats punch presses as devices primarily dedicated to punching (hole making and simple profiles) and stamping presses as broader forming systems capable of multi-operation forming using dedicated dies.
- Drive system: Typically mechanical or hydraulic (or servo in advanced configurations) that delivers a short, high-velocity punch stroke.
- Tooling: A punch and die set, with possible multiple stations for different hole sizes or shapes.
- Material flow: Material remains stationary relative to the punch during the brief contact period; the punch shears material against the die to create the feature.
- Speed emphasis: High-speed punching with substantial tonnage needed for piercing and perforating operations.
- Drive system: Can be mechanical, hydraulic, servo-electric, or a combination, depending on the application and required control.
- Tooling: A complete stamping die set composed of multiple components (strippers, progressive dies, compound dies, transfer dies) that enable a sequence of forming operations in one press cycle.
- Material flow: The workpiece experiences a series of forming actions, potentially including bending, drawing, embossing, or forming complex geometry across multiple stations.
- Flexibility emphasis: Designed to perform multiple forming steps per cycle, often enabling high-part complexity and high automation through die design and transfer systems.
- Purpose and complexity
- Punch press: Best for high-speed punching and simple hole/shape features.
- Stamping press: Best for complex forming sequences, multi-operation parts, and intricate profiles.
- Tooling and dies
- Punch press: Simpler tooling (punch and die sets).
- Stamping press: Advanced dies (progressive, compound, transfer) with intricate components.
- Throughput and cycle time
- Punch press: Extremely fast for punching repetitive holes but limited in forming complexity.
- Stamping press: Throughput can be optimized via automation and multi-station dies, enabling complex parts in fewer cycles.
- Material handling and setup
- Punch press: Quick setup for basic holes; lower capital cost per station.
- Stamping press: Higher setup cost due to complex dies but lower per-part labor for multi-feature parts.
- Tonnage and stroke control
- Punch press: Tonnage reflects hole size and material thickness; stroke is typically fixed but can be adjusted in some models.
- Stamping press: Tonnage plus die design determine the ability to form deeper draws and more aggressive features; stroke may be adjustable and synchronized with automation.
- Primary need is rapid hole punching, notching, or simple cutouts.
- High-volume production with minimal secondary operations.
- Materials include sheet metal of moderate thickness where piercing is predominant.
- Cost sensitivity favors lower initial investment and simpler maintenance.
- Applications include fast-throughput perforation, skincare or filtration manufacturing, electronics enclosures with vent holes, and simple gasket-cutting tasks.
- Parts require multiple forming operations beyond punching: bending, drawing, shaping, piercing, and finishing in a single press cycle or through a well-designed die set.
- Complex geometries or tight tolerances necessitate controlled forming sequences and precise tool alignment.
- High automation is desired via progressive or transfer dies to minimize manual intervention and optimize cycle time.
- Materials are challenging to form and demand careful control of flow, thinning, and wrinkling.
- Applications include automotive body panels, appliance housings, aerospace components, and engineered parts requiring consistent repeatability and integration of multiple features.
Punch press tooling considerations
- Quick-change tooling: A single punch and die pair, with standardized tooling blocks, can rapidly switch between hole sizes or patterns.
- Multi-station fixtures: Some punch presses offer two-to-three stations to perform sequential or parallel punching tasks.
- Maintenance: Tool wear primarily affects the punch edge and die surface; regular sharpening and replacement keep tolerance and finish within spec.
- Material savings: Carefully designed hole patterns can minimize scrap while meeting design requirements.
- Progressive dies: Allow a sequence of operations to occur with each press stroke, streamlining production for complex parts.
- Transfer dies: Move a part from one station to another automatically, enabling long-run production with minimal operator intervention.
- Die wear and maintenance: More components mean more potential wear points; dies must be regularly tested, aligned, and tuned.
- Die tryouts: Setting up stamping dies requires significant validation, simulation, and trial runs to ensure proper timing, material flow, and tolerance control.
- Capital expenditure
- Punch press lines are typically less expensive upfront, particularly for basic punching operations.
- Stamping lines, especially with progressive or transfer dies and automation, can require substantial capital investment.
- Operating costs
- Punch presses may have lower operating costs due to simpler tooling and maintenance.
- Stamping lines can achieve higher per-part throughput for complex parts but require expensive dies and higher energy consumption for multi-station operations.
- Quality control
- Punch presses deliver high repeatability for holes and simple shapes when tooling is well maintained.
- Stamping presses, with carefully designed dies and transfer mechanisms, can achieve complex geometries with consistent tolerances and surface finishes across high volumes.
- Maintenance and uptime
- Punch presses typically have simpler maintenance cycles.
- Stamping lines demand rigorous die maintenance, alignment checks, and downtimes for die changes and retooling.
- Assess part requirements
- Break down the component into features: holes, cuts, bends, draws, and profiles.
- Determine if a single-stroke operation suffices or if multiple forming steps are necessary.
- Evaluate part volume and cadence
- High-volume, uniform features favor dedicated punch presses for speed and cost efficiency.
- High-mix or high-complexity parts benefit from stamping with programmable dies and automation.
- Consider future flexibility
- If product designs are expected to evolve, stamping lines with modular dies and transferable automation offer more adaptability.
- Punch presses can be upgraded with additional stations or quick-change tooling but are generally less adaptable to complex future variants.
- Compatibility with materials
- Thicker or harder materials may require stamping with robust dies and advanced forming strategies.
- Softer sheet metals with straightforward geometries are well-suited to punch presses for high-speed punching.
- Both machine categories involve significant hazards, including pinch points, shear forces, and hot surfaces during operation.
- Implement guarding, interlocks, escape routes, and lockout/tagout procedures.
- Regular training on safe operating procedures (SOPs) and emergency shutdowns is essential.
- Ensure proper die and tool maintenance to reduce unexpected failures during production.
- Automotive: stamping presses are widely used for body panels, brackets, and closures; punch presses contribute to fast hole punching and fastener placement.
- Consumer electronics: precision punching for venting and feature holes, with stamping dies enabling compact enclosures and integrated features.
- Household appliances: stamping lines produce complex inner structures and outer housings with consistent finishes.
- Aerospace and defense: stamping lines support high-precision, repeatable forming for critical components, often with strict tolerances and traceability.
- Regular inspection cycles: schedule inspections for wear and alignment of punches, dies, and tooling.
- Die storage and handling: store dies in clean, organized racks to prevent deformation or contamination.
- Lubrication regimes: apply appropriate lubricants to reduce friction and extend die life.
- Calibration: periodic calibration of press controls and die seating ensures consistent performance.
- Operator proficiency: skilled operators can recognize early signs of tool wear and material misfeeds.
- Die setters and maintenance technicians: specialized training reduces setup times and improves quality outcomes.
- Cross-functional teams: collaboration between design, tooling, and production optimization teams accelerates problem-solving and process improvements.
- Energy efficiency: select servo-electric or high-efficiency hydraulic systems when appropriate to reduce energy consumption.
- Material waste reduction: optimize die geometry and nesting to minimize scrap and improve yield.
- Recyclability: design for easy disassembly and recycling of tooling at end-of-life.
- Digital twins and simulation: using advanced simulation to validate stamping and punching processes before production reduces trial-and-error.
- Hybrid and servo-driven stamping: integrating servo axes to enhance control over forming sequences and tooling life.
- Automation integration: robotic loading/unloading, part inspection, and automated die-change systems improve overall equipment effectiveness (OEE).
- Lightweight materials and advanced alloys: drive need for more precise control and stronger tooling to handle increased demands.
Punch presses and stamping presses serve distinct roles within metal forming and manufacturing environments. Punch presses excel at high-speed punching tasks with straightforward hole patterns, offering lower upfront costs and simpler maintenance. Stamping presses, on the other hand, shine in complex forming operations, enabling multi-feature parts through advanced die designs and automation. The choice between these machines should be guided by part complexity, required tolerances, production volume, and long-term adaptability. A thoughtful assessment of tooling strategies, total cost of ownership, and future manufacturing goals will help determine the most suitable equipment for a given production line. When planning a new facility layout or upgrading an existing line, it is prudent to map out the entire process, including material handling, die maintenance, and staffing needs, to avoid bottlenecks and ensure sustained productivity. Embracing automation, continuous improvement methodologies, and data-driven monitoring will further enhance performance, minimize downtime, and maximize yield across both punch and stamping operations.
Punch presses are optimized for high-speed punching of holes and simple shapes, while stamping presses are capable of performing multi-step forming operations using complex dies to produce more intricate parts.
Key factors include part complexity, required tolerances, production volume, available floor space, initial investment, and the potential for automation with Dies and transfer systems.
Yes, by upgrading tooling, adding multi-station setups, or integrating specialized dies, but this often involves significant retooling and may not match the efficiency of a dedicated stamping line for complex parts.
Typically, a punch press is more cost-effective due to lower tooling complexity, faster setup, and lower maintenance requirements.
Both require guarding and training, but stamping presses with complex dies may demand more extensive die maintenance, alignment checks, and scheduled retooling to sustain accuracy and quality.
