Uncoiler machines are essential components in modern manufacturing operations, designed to feed coils of metal, plastic, or composite materials into processing lines with precision, reliability, and speed. Whether in automotive, construction, electronics, or packaging sectors, selecting and operating the right uncoiler directly influences plant efficiency and product quality. This guide presents a systematic overview, covering all core aspects of uncoiler machines, from definitions and working principles to advanced features, industry trends, troubleshooting, and vital maintenance practices. By exploring every facet in depth, manufacturers and engineers can make informed decisions that enhance their business success.

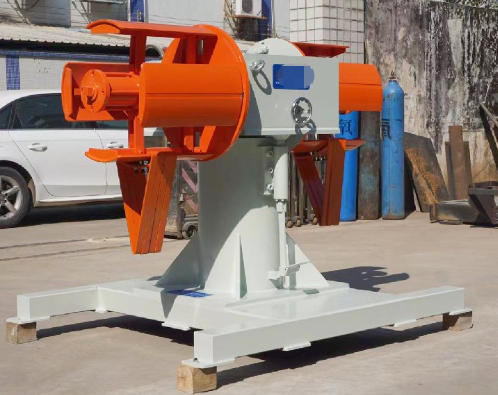

An uncoiler machine is an industrial device built to hold, support, and unwind large coils of material at the beginning of an automated production line. These machines offer a controlled, steady feed to downstream processes, minimizing manual handling and streamlining material flow. Used for steel, aluminum, copper, plastics, and composites, uncoilers are designed with safety, efficiency, and durability as top priorities.
- Supports Heavy Coils: Secures large weights for stable, fault-free operation.
- Feeds Material: Unwinds sheets or strips into press, stamping, or forming machinery.
- Controls Tension: Applies constant force, reducing breakage or deformation.
- Enhances Automation: Integrates with modern production lines for continuous material supply.
The uncoiling process begins the moment a coil is loaded onto the machine's mandrel or arms. A robust expansion mechanism locks the coil in place, preventing slippage during high-speed operation. Depending on the configuration, an electric, hydraulic, or mechanical drive rotates the coil, unwinding material and feeding it into the next piece of equipment. Sensors, tension controls, and brake systems ensure precise, uninterrupted delivery. Sophisticated models utilize adjustable speed controls, feedback systems, and automation for maximum precision.
1. Coil Loading: Position and secure the raw material coil.
2. Expansion/Locking: Activate mechanical or hydraulic expansion to secure the coil.
3. Drive & Feed: Motor-driven rotation unwinds the coil as required.
4. Tension Management: Brakes, sensors, or clutches maintain desired tension.
5. Material Output: Sheet or strip is guided into straighteners, feeders, or presses.
Uncoilers exist in varied designs to accommodate industry-specific needs, offering flexibility and scalability for manufacturers.
- Operation: Manual or gravity-driven uncoiling, suitable for lightweight coils.
- Application: Low-volume or basic lines.
- Operation: Electric motors drive rotation.
- Strengths: Handles larger coils, better speed and tension management.
- Operation: Hydraulic expansion and drive offer strength for extra-heavy coils.
- Benefits: Supports 10-ton plus coils, precision adjustment, stable output.
- Design: Dual mandrels allow coil changeover with minimal downtime.
- Application: High-output, continuous operations.

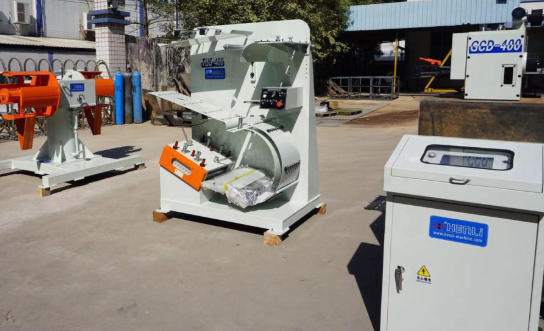

Integrated machines combine uncoiler, straightener, and feeder into one compact system. Hydraulic expansion secures coils, while high-accuracy rollers and numerical position control enable precise leveling and feeding. This design means rapid setup, reduced space consumption, and minimization of human error in precision applications.
- Space-Saving Layout: Requires only 4.5–6 meters, maximizing floor efficiency.
- Automation: Intelligent controllers, hydraulic carts, numerical settings.
- Precision: Feed precision up to ±0.2mm; adjustable for different coil weights and sizes.
Advanced uncoilers incorporate many features beyond fundamental design, engineered for safety, accuracy, and ease of use:
- Mandrel Construction: Hydraulic, pneumatic, or mechanical expansion, adjustable length and diameter.
- Tension Control System: Emergency brakes, clutches, and feedback sensors optimize material flow.
- Drive Mechanisms: Variable frequency drives (VFDs), premium efficiency motors, and speed control panels.
- Safety Systems: Emergency stop switches, light towers indicating machine status, coil snag detectors.
- Automation and Diagnostics: Touch panels for user interface, alarm histories, maintenance schedules, and fault detection.
- Customization: Modular bases, risers, wire guides, and extended mandrels allow adaptability.
- Remote & Smart Controls: Wireless pendant systems, remote troubleshooting, and HMI-integrated interfaces for easy operation.
Employing a suitable uncoiler brings significant value across a manufacturing operation:
- Improved Material Handling: Reduces manual intervention, increases speed, and decreases labor costs.
- Higher Precision and Consistency: Provides uniform feed rates, essential for stringent quality standards.
- Reduced Material Damage: Stable tension minimizes defects like wrinkling, stretching, and surface marks.
- Enhanced Safety: Modern safety standards protect operators and equipment during coil loading and unwinding.
- Versatility: Uncoilers are used for both metal and non-metal applications, from automotive to packaging.
- Modular Flexibility: Adaptable configurations suit both new and existing lines, facilitating future growth.
- Production Optimization: Automated systems boost line speed, decrease downtime, and enable high-volume output.
Emerging technologies are transforming uncoiler machine capabilities:
- Integrated Data Analytics: Sensors and monitors analyze performance and predict maintenance needs, reducing unscheduled downtime.
- Industry 4.0 Automation: Networked controls and digital integration enable real-time monitoring, remote adjustment, and line-wide optimization.
- Precision Tension Control: Servo-driven systems and adaptive brakes maintain tension for ultra-thin or specialty materials.
- Enhanced Safety Mechanisms: Automated interlocks, emergency stops, and snag detector switches improve workplace protection.
- Modular Design Philosophy: Facilitates easy upgrades and customization, essential for evolving production needs.
- Digital Remote Monitoring: Allows for installation in smart factories, with remote alerts and diagnostics.
Uncoiler machines are ubiquitous in:
- Automotive: Body panels, exhaust components, and structural parts.
- Construction: Roofing sheets, structural beams, and architectural panels.
- Appliance Manufacturing: Sheet metal for casings and components.
- Electronics: Cable, wire, and thin foil processing.
- Packaging: Flexible packaging, containers, and boxes.
- Aerospace: Thin-gauge specialty metals, composite sheet manufacturing.
Selecting the optimal uncoiler for your facility requires detailed planning:
- Coil Capacity: Match weight, diameter, and width to maximum machine capabilities.
- Material Compatibility: Consider the machine's support for particular alloys or plastics.
- Speed & Automation: Assess your required throughput and potential for integration into automated lines.
- Safety & Compliance: Validate emergency stops, guards, and operational safety features.
- Customization Options: Identify modular bases, controllers, or accessories needed for future expansion.
- Supplier Support: Prioritize manufacturers offering robust service, documentation, and technical help.
Consistent, proactive maintenance is essential for the reliable running of uncoiler machines:
- Routine Inspections: Check mandrel expansion, drive function, brakes, and tension controls for wear.
- Lubrication: Keep moving parts well-greased to prevent friction and premature breakdown.
- Clean Sensors and Lines: Dust and material debris can interfere with feedback systems and automation.
- Hydraulic System Checks: Monitor oil levels, filter condition, and look for leaks in hydraulic uncoilers.
- Electrical System Care: Inspect connections, PLC controllers, and wiring for faults.
- Calibration: Regularly calibrate accuracy settings for tension and speed, especially when switching material types.
- Coil Misalignment: Correct coil positioning and check infeed guides.
- Material Slippage: Adjust tension on the mandrel or brake for better grip.
- Vibration or Noise: Inspect and tighten all bolts, bearings, or drive couplings.
- Oil Leaks: Identify and seal hydraulic issues promptly; replace filters on schedule.
- Sensor Faults: Clean or replace malfunctioning sensors for correct feedback.
- Control System Errors: Reset PLC controllers and check interface connections.
The global uncoiler market is experiencing consistent growth, driven by rapid industrialization, increased automation, and the demand for high-precision coil handling. Critical trends include:
- Automation & Industry 4.0: Integration with smart production lines enables remote monitoring and data-driven optimization.
- Demand for High-Precision Systems: Automotive, aerospace, and electronics industries require uncoilers capable of reliably handling ultra-thin gauge materials.
- Enhanced Safety Features: Regulatory pressures push manufacturers to include advanced interlocks, emergency stops, and improved sensor systems.
- Growth in Emerging Markets: Asia-Pacific and South American manufacturing sectors are propelling market expansion.
- Sustainability Initiatives: Energy-efficient motors and improvements in material handling reduce waste and environmental impact.
- Modular and Customizable Design: Adaptation for specific customer requirements and future upgrades.
Uncoiler machines are indispensable assets for manufacturers aiming for superior workflow, safety, and product quality. By understanding their types, features, innovations, and the latest trends, businesses can select, operate, and maintain uncoilers to meet evolving production goals. Automated, precise, and reliable, modern uncoilers drive the next generation of manufacturing efficiency, whether in automotive, construction, electronics, or packaging industries. With proactive maintenance, troubleshooting, and adoption of future-facing technologies, manufacturers can achieve lasting value and productivity.
An uncoiler machine is used to unwind and feed coils of sheet metal, wire, or other materials into production equipment, enabling automated and consistent processing.
Uncoilers can handle metals like steel, aluminum, copper, stainless steel, as well as plastics and composites, provided the machine's weight and size limits match the material.
Both terms refer to machines for unwinding coils, but uncoilers often feature added control options, safety systems, and automation. The terms are interchangeable in many industries.
Consider coil dimensions, material type, required speed, safety features, integration options, and supplier support before making a selection.
Routine lubrication, inspections, calibration, cleaning, and prompt attention to unusual noises or wear are essential practices for reliability and long machine life.
