Uncoiler machines sit at the heart of modern coil-processing operations, delivering raw materials seamlessly to downstream processes and ensuring maximum efficiency, quality, and workplace safety. Selecting the best uncoiler machine is vital for any industry relying on continuous sheet or strip production—metal forming, stamping, packaging, or even electronics assembly. This expanded guide dives deeper into the construction, features, applications, and advanced tech of top uncoiler machines, offering exhaustive information to help you select the optimal solution for your manufacturing scenario.
In industrial manufacturing, every second, every fraction of a millimeter, and every step of the process matters. Uncoiler machines, which unwind heavy coils into production lines, prove essential for uninterrupted, high-quality, and safe material supply. As product specifications diversify and automation becomes mainstream, investing in a next-generation uncoiler unlocks efficiency, flexibility, and product excellence.

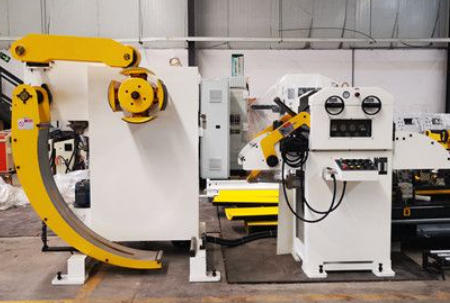

An uncoiler is an automated device purpose-built to securely hold, expand, and unwind large metal coils (steel, aluminum, copper, specialty alloys, plastics, or composites) at the onset of the production line. By automating what was once a laborious, risky manual job, the uncoiler enables consistent material flow while protecting both operator and product quality.
The process begins with coil loading—manual or automated—that places the coil on a mandrel, shaft, or specially designed arms. Advanced uncoilers secure coils using hydraulic, pneumatic, or mechanical expansion mechanisms, accommodating variable diameters and weights. A powerful drive system unwinds the coil at controlled speeds, while tension-control mechanisms ensure the material is neither too tight nor too slack. The result: perfectly regulated sheet or strip fed directly into subsequent machines, be it straighteners, feeders, presses, roll formers, or slitters.

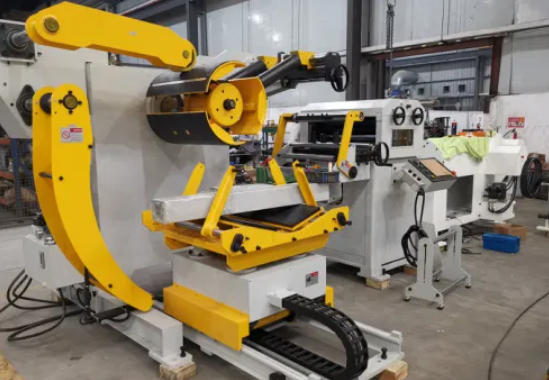

- Handles coils weighing from 3 to 50 tons, ensuring safe, stable operation for any industrial scale.
- Customizable mandrels and supports, adaptable for varied coil diameters, widths, and material types.
- High-precision tension management via electronic, hydraulic, or pneumatic brakes and feedback sensors.
- Maintains stable unwinding force, eliminating slack, breakage, or deformation and optimizing downstream material quality.
- Variable frequency drives (VFDs), digital speed panels, and programmable motors allow precise control over unwinding speed.
- Ramp-up/ramp-down functions prevent material stretching or bending during start-stop transitions.
- Emergency stop switches, safety chucks, light towers, coil snag sensors, and safety interlocks prioritize worker safety.
- Guard covers and monitored safety zones further minimize operational risks.
- Built-in PLCs, HMIs, and data feedback loops ensure seamless integration with presses, feeders, and robotic cells.
- Auto coil cars, motorized threading arms, and modular expansion support rapid changeovers and continuous production.
- Intuitive control interfaces (touch panels, wireless pendants) simplify setup, monitoring, and maintenance.
- Visual indicators, automatic alignment guides, and self-diagnostics minimize operator error.
- Accommodates steel, aluminum, copper, brass, composite foils, and plastic films, supporting diversified product lines.
- Adjustable mandrels and reel designs permit rapid switching among varying material types and thicknesses.
- Chassis and frames built with high-carbon steel, heat-treated/shot-blasted for strength and longevity.
- Modular construction, easy-access panels, coil carts, and simple-to-replace wear parts streamline routine upkeep.
The internal makeup of an uncoiler reflects advanced engineering for high performance, reliability, and precision.

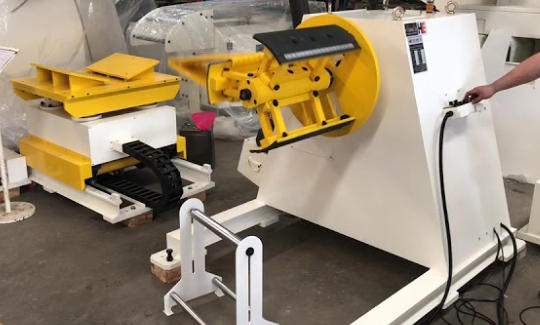

- Hydraulic or pneumatic expansion systems for mandrels ensure uniform grip, minimizing runout and slip.
- Coil carts or lifters equipped with V-shaped frames guide coils into position, supporting weights from 3–50 tons.
- Some models feature dual-mandrels or double-head designs for minimized downtime during coil changeover.
- Frames are beam-steel welded and shot-blasted, providing rigidity under heavy load.
- Mandrels machined from high-carbon chromium-manganese steel, heat-treated to 58–60 HRC for wear resistance.
- Mandrel expansion by hydraulic drawbar, piston guide, or manual wedge system, enabling diameter adjustment (e.g., 465–515mm ID).
- Motor-driven shaft rotation via gear reducers and chain drive for efficiency.
- Digital control panels for fine adjustment of speed and tension; speeds commonly range 30–300m/min depending on application.
- Advanced tension feedback (0–60kg, stability ±15%) adjusts automatically per coil diameter and material thickness.
- Servo-motor upgrades for premium-grade machines, offering ultra-low runout (≤0.005mm TIR).
- Touchscreen HMIs with visual alarm history, maintenance prompts, and real-time diagnostics.
- Remote troubleshooting via Wi-Fi or Bluetooth-enabled pendant controllers.
- Integration with ERP/MES systems for traceability, production reporting, and predictive health monitoring.
| Feature | Specification Range | Note |
|---|---|---|
| Coil Weight Capacity | 3–50 tons | Customizable per application |
| Coil Inner Diameter (ID) | 465–515mm; 508mm standard | Mandrel adjustment for standard coils |
| Coil Outer Diameter (OD) | Up to 1250–2200mm | Variable upon design/model |
| Coil Width | 1000–1500mm | Multi-width, adjustable |
| Uncoiling Speed | 30–300m/min | Varies by drive system & application |
| Tension Stability | ±15%, 0–60kg | Hydraulic/pneumatic damping & feedback |
| Motor Power | 5.5–55kw | Bigger coils need larger motors |
| Hydraulic Pressure | 4–15MPa | For expansion, coil cart, mandrel control |
| Control Interface | PLC, HMI, wireless pendant | Visual, easy set-up & troubleshooting |
- Efficient Handling: Reduces manual work, enhances operator safety, and boosts productivity.
- Consistent Material Flow: Advanced tension/speed control ensures uniform supply, reducing defects.
- Flexible Operations: Adaptability across materials, thicknesses, and coil dimensions for agile production.
- Durability & Reliability: Rugged mechanical assembly and premium electronics ensure longevity.
- Reduced Downtime: Automation, quick-change features, and smart diagnostics enable rapid changeover and preventative maintenance.
Consider these criteria for decision-making:
- Maximum coil weight and dimensions expected.
- Material specifications: thickness, hardness, and composition.
- Required speed, accuracy, and tension management.
- Automation needs: integration with current/future equipment.
- Maintenance access and support: local service teams, spare parts.
- Vendor reputation and technical expertise.
Top uncoiler machines empower industries such as:
- Automotive metal stamping: for high-speed, precise steel or aluminum feed.
- Construction materials: supplying sheet steel or alloys to roll forming and slitting lines.
- Electronics and packaging: uncoiling copper, plastics, and composites for punch presses and laminators.
- Pipe/tube production: feeding metal strips into roll formers and welders for continuous tube manufacturing.
- AI-Enabled Monitoring: Predictive analytics for maintenance and production optimization.
- Green Engineering: Energy-efficient motors, regenerative braking, and sustainable material selection.
- Adaptive Automation: Instant reconfiguration for multiple product lines, IoT connectivity, and real-time data sharing.
- Ergonomic Advances: Automated loading/unloading, improved user interfaces, and safety upgrades.
The modern uncoiler is more than just a mechanical unwinding device—it is a sophisticated, multi-functional system delivering safety, productivity, flexibility, and product quality for demanding manufacturing environments. Key features such as heavy-duty support, enhanced tension and speed control, advanced automation, and precision engineering set the best models apart. As technological innovation accelerates and product requirements diversify, investing in adaptable, future-ready uncoilers is essential for sustaining competitive advantage in manufacturing.
Top uncoiler machines efficiently process steel, aluminum, copper, brass, composite foils, and plastics thanks to advanced mandrel systems and adjustable support arms.
By maintaining precise, consistent tension through brake systems and sensors, the uncoiler prevents slack or overstretching, minimizing bends, breaks, and surface defects.
Yes. High-end uncoiler machines feature PLC controls, data interfaces, and modular components for plug-and-play integration with presses, feeders, robotic handling devices, and ERP systems.
Choose equipment with emergency stops, safety chucks, machine guards, coil jam sensors, safety interlocks, and visual alerts (light towers) for optimal operator protection.
Routine lubrication, wear component inspections, brake and tension checks, and regular validation of sensors and safety systems are essential for peak performance.
