Understanding the tonnage of a flywheel punch press is essential for anyone involved in metalworking, manufacturing, or mechanical engineering. The tonnage indicates the maximum force the press can exert during punching or stamping operations, which directly affects the quality, safety, and efficiency of your production process. This comprehensive guide will walk you through the fundamentals of flywheel punch presses, methods to calculate tonnage, factors influencing tonnage, safety considerations, and maintenance tips. Additionally, you will find illustrative explanations, formulas, and practical examples to help you master this critical aspect of punch press operation.

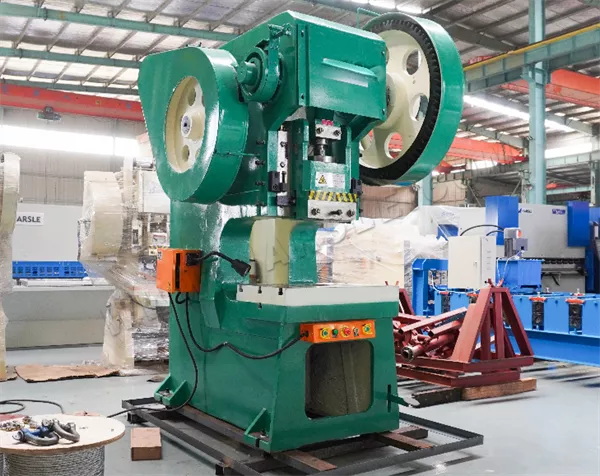

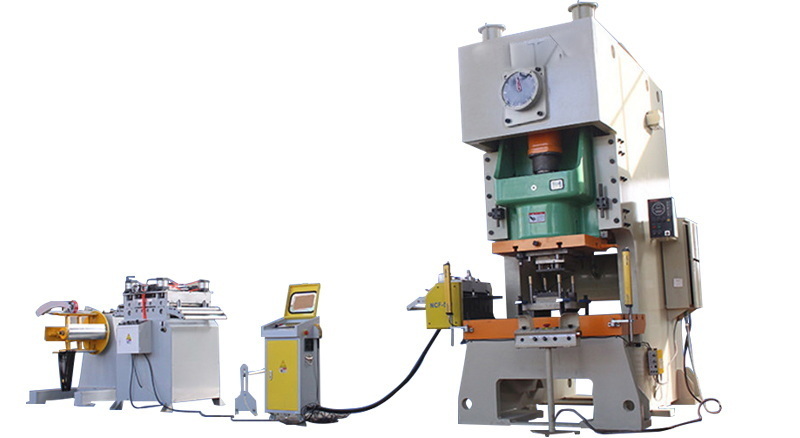

A flywheel punch press is a mechanical device that uses a heavy rotating flywheel to store kinetic energy. This energy is then transferred to the ram (or slide), which performs the punching or stamping operation on metal sheets or other materials. The flywheel's stored energy allows the press to deliver a powerful, instantaneous force necessary for shaping or cutting materials.
- Flywheel: Stores and releases kinetic energy.
- Clutch: Engages and disengages the flywheel to control the ram movement.
- Ram (Slide): The moving part that applies force to the punch.
- Punch: The tool attached to the ram that shapes or cuts the workpiece.
- Die: The stationary tool that supports the workpiece and shapes the punch.
- Frame: The structural body supporting all components.
- Motor: Powers the flywheel.
- Lubrication System: Ensures smooth movement of mechanical parts.
Understanding these components is crucial before calculating the tonnage, as the flywheel's energy and the mechanical setup determine the force output.
Tonnage refers to the amount of force, measured in tons, that a punch press can exert during its operation. This force is critical because:
- It determines whether the press can punch or form a specific material.
- Operating beyond the rated tonnage can damage the press or the tools.
- It affects the quality and precision of the punched parts.
- Ensures operator safety by preventing mechanical failures.
Flywheel punch presses are typically rated for their maximum tonnage near the bottom of the ram stroke, commonly within a fraction of an inch from the bottom dead center (BDC).
The simplest way is to check the press's nameplate or manual, which usually lists the maximum tonnage. However, this information might be missing for older or custom-built machines.
Load cells or strain gauges can be installed between the ram and die to measure the actual force during operation. This method provides real-time, accurate tonnage data but requires specialized equipment.
Since the flywheel stores kinetic energy, you can estimate tonnage by calculating the energy stored and the distance over which the force is applied.
- Kinetic Energy (KE) of Flywheel:
Where:
- I= Moment of inertia of the flywheel
- w = Angular velocity (rad/s)
- Force (Tonnage) Calculation:
Where the distance is the ram's travel during the punching operation.
This method requires knowledge of flywheel specifications, rotational speed, and ram stroke length.
For practical estimation, especially punching round holes in mild steel, use the formula:
- Punch diameter and material thickness are in inches.
- The result is in tons of force.
For example, punching a 1/2" hole in 1/4" thick mild steel:
For shaped holes, use:
Note: Material thickness should not exceed punch diameter.
A more general formula for any piercing or trimming operation is:
Where:
- Perimeter is the length of the cutting line (in inches).
- Thickness is the material thickness (in inches).
- Shear strength is material dependent (e.g., 80 ksi for mild steel).
This formula accounts for the actual cutting length and material properties, providing a more precise tonnage estimate.
- Thickness: Thicker materials require more force.
- Hardness: Harder materials increase required tonnage.
- Type: Different metals have varying shear strengths.
Proper clearance reduces force and improves product quality. Too tight clearance increases tonnage and tool wear.
Larger or complex-shaped punches increase the perimeter length, raising tonnage requirements.
Lubrication, clutch and brake condition, and flywheel health affect the effective tonnage output.
The stroke length and speed of the ram affect how the energy is transferred. A longer stroke requires the flywheel to deliver energy over a greater distance, which can influence the force applied at the point of contact.
Suppose you have a flywheel punch press punching a 3/4" diameter hole in 0.125" thick mild steel.
1. Use the empirical formula:
2. If the hole is rectangular, say 1" x 2", calculate the perimeter:
Then,
This shows shaped holes require more force due to longer cutting edges.
Different materials have different shear strengths, which directly influence the tonnage required. For example:
| Material | Approximate Shear Strength (ksi) |
|---|---|
| Mild Steel | 60 - 80 |
| Stainless Steel | 70 - 90 |
| Aluminum | 20 - 30 |
| Copper | 25 - 35 |
Adjust the tonnage formula accordingly by replacing the shear strength value.
As punches and dies wear, the clearance may increase or the cutting edges become dull, requiring more force to complete the operation. Regular maintenance and tool sharpening can reduce unnecessary tonnage increases.
Increasing the flywheel's moment of inertia or rotational speed increases the stored kinetic energy, which can enhance the tonnage capacity. However, this must be balanced with mechanical limits and safety considerations.
- Flywheel Inspection: Ensure no cracks, smooth rotation without wobble or noise.
- Clutch and Brake: Must engage/disengage smoothly and stop the ram promptly.
- Lubrication: Keep all moving parts well-lubricated.
- Guards and Safety Devices: Use fixed guards, presence-sensing devices, and emergency stops.
- Operator Training: Only trained personnel should operate the press.
- PPE: Use gloves, safety glasses, ear protection, and proper clothing.
- Work Area: Keep clear of obstructions and hazards.
- Avoid Overloading: Do not exceed rated tonnage to prevent mechanical failure and accidents.
- Emergency Procedures: Operators should be trained on emergency stop functions and first aid.
- Regularly check and tighten mold screws and fasteners.
- Inspect belts, gears, and shafts for wear.
- Conduct empty run tests to listen for abnormal sounds.
- Follow manufacturer maintenance schedules.
- Replace worn or damaged parts promptly.
- Keep detailed records of inspections and repairs.
- Monitor lubrication levels and quality.
- Calibrate force measurement devices periodically.
- Inspect clutch and brake components for wear and adjust as necessary.
Figuring out the tonnage of a flywheel punch press is vital for ensuring the machine's proper use, maintaining product quality, and guaranteeing operator safety. Whether you rely on manufacturer specifications, direct force measurements, or calculations based on material properties and flywheel energy, understanding tonnage helps optimize your manufacturing process. By considering the factors that influence tonnage and adhering to safety and maintenance protocols, you can maximize the efficiency and lifespan of your punch press. Always remember that accurate tonnage calculation not only protects your equipment but also ensures consistent, high-quality production output.
Estimate tonnage by multiplying the punch perimeter, material thickness, and material shear strength. For round holes in mild steel, use the formula: Punch diameter × Thickness × 80.
Yes, by calculating the flywheel's kinetic energy and dividing by the ram stroke distance, you can estimate the force exerted. This requires knowing the flywheel's moment of inertia and rotational speed.
Exceeding rated tonnage can cause mechanical damage, reduce tool life, produce poor-quality parts, and create safety hazards.
Safety inspections should be done before every operation and periodically as per manufacturer guidelines, including checking the flywheel, clutch, brake, lubrication, and guards.
Operators should wear gloves, safety glasses, ear protection, and suitable clothing. Use machine guards, emergency stops, and presence-sensing devices for additional safety.
