Maintaining an OEM punch press machine is essential to ensure its longevity, reliability, and optimal performance in industrial metalworking operations. Whether you operate a mechanical, hydraulic, or turret punch press, following a comprehensive maintenance routine will minimize downtime, reduce repair costs, and maintain product quality. This detailed guide covers best practices, daily to annual maintenance tasks, lubrication tips, safety checks, and troubleshooting techniques specifically for OEM punch press machines.

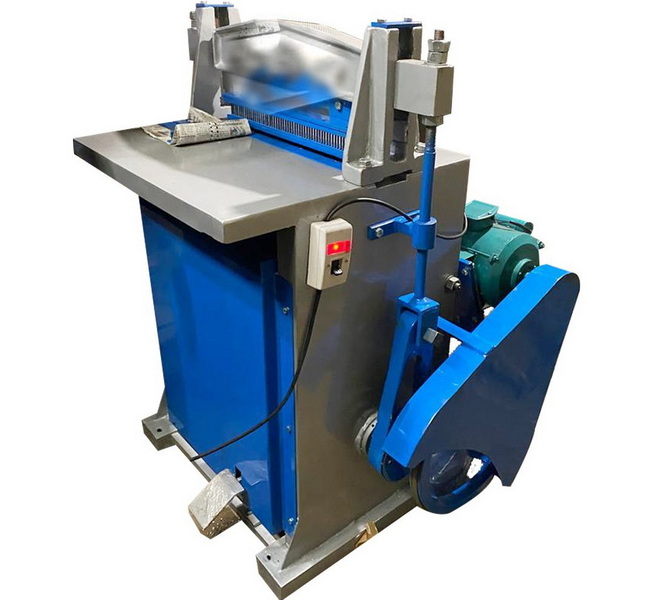

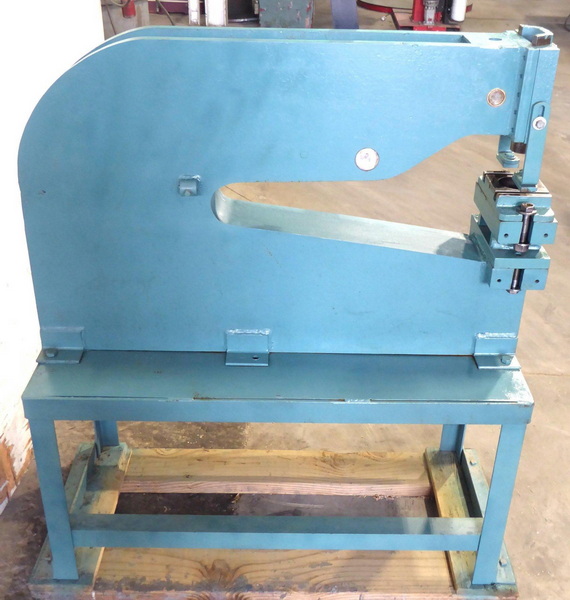

An OEM punch press machine is designed and manufactured to original equipment specifications, ensuring precision and compatibility of parts. These machines are widely used for punching holes and shaping metal sheets in industries such as automotive, construction, and electrical equipment manufacturing. Proper maintenance tailored to OEM standards preserves the machine's integrity and performance.
- Wipe down the entire machine with a clean, dry cloth or a soft brush to remove dust, metal shavings, and oil residues.
- Avoid moisture accumulation to prevent rust on exposed metal parts.
- Clean hard-to-reach areas thoroughly to avoid debris buildup that can impair moving parts.
- Apply manufacturer-recommended lubricants to guide rails, crankshafts, connecting rods, and punch holders.
- For machines with automatic lubrication systems, check oil levels and ensure pumps are functioning properly.
- Lubricate daily or as per the OEM schedule to reduce friction and wear.
- Verify that emergency stop buttons and safety interlocks are operational.
- Ensure that protective devices such as guards and light curtains are in place and functioning.
- Do not allow manual feeding or retrieval of parts directly into the dies to prevent injuries.
- Check hydraulic oil levels and look for leaks in hoses and fittings.
- Confirm air pressure stability and inspect pneumatic valves and cylinders for smooth operation.
- Examine dies and punches for signs of wear, cracks, or misalignment.
- Replace or regrind tooling as necessary to maintain cutting precision and reduce strain on the machine.
- Inspect clutch pins and brake components for wear.
- Apply high-temperature grease to clutch and brake parts to ensure smooth engagement.
- Clean oil distribution tubes and lubricate slide rails, screws, and sliders.
- Check the oil circuit and oil pump for leaks or malfunctions.
- Tighten loose contacts and check wiring for damage.
- Test solenoid valves and control relays for proper operation.
- Monitor hydraulic oil pressure and temperature.
- Replace hydraulic filters and inspect hoses and seals for wear or damage.
- Flush and replace hydraulic oil as recommended by the OEM.
- Use precision tools to check the parallelism and perpendicularity of the machine frame and dies.
- Adjust punch stroke length and pressure settings to OEM specifications.
- Calibrate sensors and control systems to maintain accuracy.
- Apply anti-rust oil or paint to exposed metal surfaces such as press tables and guide rails.
- Protect the machine from environmental factors like humidity and dust.
- Remove bearings, copper bushings, and shafts for cleaning and inspection.
- Re-grease or replace components showing excessive wear.
- Disassemble clutch and manipulator arms.
- Clean, lubricate, and replace worn parts to ensure proper function.
- Test emergency stop systems, photoelectric safety eyes, and limit switches.
- Inspect wiring insulation resistance and tighten all electrical connections.
- Inspect gears, belts, flywheels, and frame welds for signs of fatigue or damage.
- Realign or replace worn mechanical components.
- Flush the hydraulic system completely.
- Replace seals, valves, and worn hoses.
- Recalibrate pressure and stroke controls.
- Review maintenance logs and update schedules.
- Provide refresher training for operators on machine care and safety protocols.
Proper lubrication is critical to reduce friction, prevent overheating, and extend the life of moving parts.
- Use only OEM-recommended lubricants or equivalents specified in the machine manual.
- Avoid over-lubrication, which can attract dirt and cause buildup.
- For tooling, apply specialized lubricants or assembly pastes to punches and dies to reduce wear and heat during operation.
- Maintain lubrication schedules strictly, adjusting frequency based on machine usage intensity.
- Always disconnect power and close air valves before performing maintenance.
- Never bypass safety devices or operate the machine with guards removed.
- Use safety brackets or supports when punching long workpieces.
- Train all operators on emergency procedures and proper machine handling.
- Regularly clean tooling and work areas to prevent debris buildup.
- Inspect material alignment and tooling condition before operation.
- Replace worn or damaged punches and dies promptly.
- Check for loose bolts, worn bearings, or misaligned components.
- Lubricate moving parts and tighten all fasteners.
- Inspect hydraulic hoses, seals, and filters.
- Replace contaminated hydraulic oil and clean the system.
To ensure your OEM punch press machine operates at peak efficiency and longevity, it's essential to implement advanced maintenance techniques that go beyond basic care. These techniques focus on predictive maintenance, condition monitoring, and precision adjustments, helping to identify and address potential issues before they lead to costly breakdowns.
Predictive maintenance involves using data analysis and advanced sensor technology to monitor the condition of critical components and predict when maintenance is needed. This approach reduces unnecessary maintenance and minimizes downtime by addressing issues only when necessary.
- Vibration Analysis: Use vibration sensors to monitor bearings, gears, and motors for signs of wear or imbalance. Changes in vibration patterns can indicate the need for bearing replacement or machine realignment.
- Oil Analysis: Regularly analyze hydraulic and lubricating oils to detect contaminants, wear particles, and changes in viscosity. This can help identify internal component wear and prevent damage.
- Thermal Imaging: Use thermal cameras to detect hotspots in electrical components, hydraulic systems, and mechanical parts. Overheating can indicate loose connections, failing components, or lubrication issues.
- Ultrasonic Testing: Employ ultrasonic testing to detect leaks in hydraulic and pneumatic systems, as well as early signs of bearing wear.
Maintaining the precision of your OEM punch press machine requires regular adjustments and calibration. These procedures ensure that the machine operates within specified tolerances, producing accurate and consistent results.
- Die Clearance Adjustment: Ensure that the clearance between the punch and die is correct for the material being processed. Incorrect clearance can lead to poor cut quality, excessive wear, and increased force requirements.
- Ram Alignment: Periodically check and adjust the alignment of the ram to ensure it is perpendicular to the bolster plate. Misalignment can cause uneven wear on tooling and reduce punching accuracy.
- Stroke Length Adjustment: Verify that the stroke length is set correctly for the application. Adjust as needed to optimize punching speed and minimize energy consumption.
- Backgauge Calibration: Calibrate the backgauge to ensure accurate material positioning. This is critical for producing parts with precise dimensions and tight tolerances.
Consider upgrading or retrofitting your OEM punch press machine with the latest technology to improve performance, safety, and efficiency.
- CNC Control Upgrades: Retrofit older machines with modern CNC controls to enhance programming capabilities, improve accuracy, and reduce setup times.
- Automatic Tool Changers: Install automatic tool changers to reduce setup times and increase productivity. This is particularly beneficial for machines that process a variety of parts with different tooling requirements.
- Safety System Upgrades: Upgrade safety systems with advanced light curtains, laser scanners, and interlock guards to improve operator safety and reduce the risk of accidents.
- Energy Efficiency Upgrades: Install variable frequency drives (VFDs) on motors and pumps to reduce energy consumption and improve machine efficiency.
A computerized maintenance management system (CMMS) can help you streamline and automate your maintenance processes. A CMMS can track maintenance schedules, manage work orders, and provide valuable insights into machine performance.
- Scheduled Maintenance: Set up recurring maintenance tasks based on OEM recommendations and machine usage.
- Work Order Management: Create and track work orders for all maintenance activities, including repairs, inspections, and adjustments.
- Inventory Management: Manage spare parts inventory and track usage to ensure that critical components are always available.
- Reporting and Analysis: Generate reports on maintenance activities, machine performance, and costs to identify trends and optimize your maintenance program.
Proper training and certification are essential for maintenance personnel to ensure they have the knowledge and skills to perform maintenance tasks safely and effectively.
- OEM Training Programs: Enroll maintenance personnel in training programs offered by the OEM to learn about the specific maintenance requirements of your machine.
- Safety Training: Provide regular safety training to all personnel who work with the punch press machine.
- Certification Programs: Encourage maintenance personnel to pursue certification programs in areas such as hydraulics, pneumatics, and electrical systems.
Consider the environmental impact of your maintenance activities and take steps to minimize waste and pollution.
- Recycle Used Oil: Recycle used hydraulic and lubricating oils to reduce waste and conserve resources.
- Proper Disposal of Waste: Dispose of waste materials such as filters, rags, and contaminated fluids properly.
- Use Environmentally Friendly Products: Use environmentally friendly cleaners, lubricants, and other products whenever possible.
Maintaining an OEM punch press machine is a multifaceted process that requires diligence, adherence to manufacturer guidelines, and a proactive approach. Daily cleaning and lubrication, regular inspections, timely replacement of worn parts, and thorough annual overhauls are essential to keep your machine running efficiently and safely. By following a structured maintenance schedule and prioritizing safety, you not only extend the life of your punch press but also ensure consistent product quality and minimize costly downtime. Empower your operators with training and maintain detailed records to optimize your maintenance program further.
Lubrication frequency depends on usage, but generally, daily lubrication of guide rails and moving parts is recommended, with more in-depth lubrication weekly or monthly as per OEM instructions. Automatic lubrication systems should be checked regularly to ensure proper function.
Signs include visible wear, cracks, poor-quality punched holes, increased force requirements, and unusual noises during operation. Regular inspection of punches and dies helps detect these issues early.
Basic daily and weekly maintenance such as cleaning, lubrication, and visual inspections can be done by trained operators. However, complex tasks like hydraulic system flushing, clutch repairs, and electrical system checks should be performed by qualified technicians.
Always disconnect power and pneumatic or hydraulic supplies before maintenance. Use proper personal protective equipment, never bypass safety guards, and follow OEM safety protocols strictly.
Poor maintenance can lead to increased wear, frequent breakdowns, reduced accuracy, safety hazards, and costly downtime. It also shortens the machine's lifespan and affects product quality.
