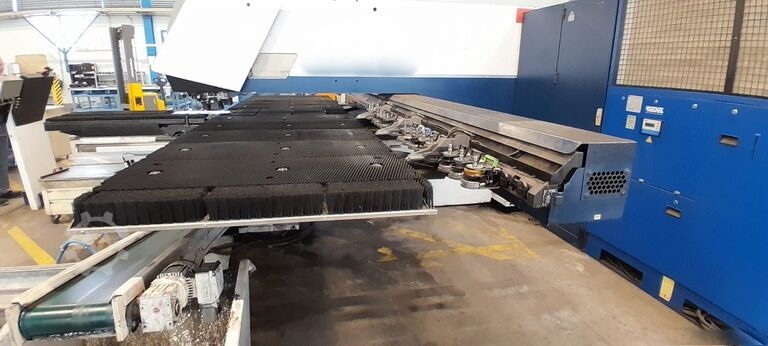

A punch press machine is a vital piece of equipment widely used in metalworking and manufacturing industries. It efficiently punches holes or shapes in sheet metal and other materials with high precision and speed. Given its critical role, proper maintenance and servicing of a punch press machine are essential to ensure its longevity, safety, and consistent performance. This comprehensive guide will take you through the best practices for maintaining and servicing a punch press machine, covering everything from cleaning and lubrication to inspection, troubleshooting, and safety.
Before diving into maintenance, it's crucial to understand the basic components and operation of a punch press machine. This knowledge helps target maintenance efforts to the most critical parts, ensuring smooth operation and preventing costly breakdowns.
- Ram/Slide: This is the moving part of the punch press that holds the punch tool and moves vertically to perform the punching operation.
- Die: The stationary part that works in conjunction with the punch to shape or cut the material.
- Clutch and Brake: These components control the ram's motion, engaging and disengaging the drive mechanism.
- Hydraulic or Mechanical Drive: Powers the ram movement, either through mechanical linkages or hydraulic pressure.
- Control Panel: The interface used to operate and monitor the punch press machine.
Understanding these parts allows operators and maintenance personnel to focus on the areas that require regular attention.
A clean punch press machine is a well-functioning one. Dirt, metal shavings, and dust can accumulate quickly during operations, causing wear or malfunction if not removed.
- Wipe down surfaces daily to remove dust and grime.
- Clear metal debris such as shavings and scraps from the working area, die sets, and tooling.
- Use brushes and compressed air to clean hard-to-reach areas such as feeders, rollers, and die sets.
- Inspect punches and dies for any signs of damage, cracks, or excessive wear.
- Remove flash and burrs from the workbench and tooling areas promptly to prevent interference with operations.
Regular cleaning not only maintains precision but also prevents contamination that could affect the quality of punched parts.
Lubrication is essential to reduce friction and wear on the moving parts of a punch press machine. Without adequate lubrication, components can overheat, seize, or wear prematurely.
- Use manufacturer-recommended lubricants for different components such as guides, bearings, crankshafts, and drive systems.
- Follow a strict lubrication schedule to avoid over-lubrication, which can attract dust, or under-lubrication, which causes wear.
- For machines with grease lubrication systems, bleed air pockets from the grease canister regularly to maintain consistent lubrication.
- Lubricate hydraulic components as required, including checking and topping up hydraulic fluids.
Proper lubrication extends the life of components and keeps the machine operating smoothly.
Punch press machines operate under high force and pressure, causing parts to wear out over time. Regular inspection is vital to detect wear early and replace parts before failure occurs.
- Inspect critical components such as the clutch, flywheel, belts, pulleys, bushings, bearings, and electrical wiring.
- Replace worn or damaged parts promptly to prevent further damage and maintain safety.
- Check the alignment of the ram and die to ensure precise punching and reduce uneven wear on tooling.
- Monitor the hydraulic system condition by checking fluid levels and replacing fluids at recommended intervals.
- Examine tooling (punches and dies) for sharpness and integrity; dull or damaged tooling reduces quality and increases machine strain.
The electrical system controls the punch press machine's operation and safety features. Proper maintenance ensures reliability and prevents unexpected downtime.
- Inspect wiring and connections for signs of wear, fraying, or looseness.
- Clean electrical components to remove dust and debris that can cause shorts or overheating.
- Test control systems and sensors regularly to ensure they work correctly.
- Replace faulty switches, relays, or sensors immediately to maintain safety and functionality.
Safety is paramount when operating a punch press machine due to the high forces involved.
- Ensure all safety guards and devices are installed and functioning correctly.
- Train operators thoroughly on machine structure, operation, and emergency procedures.
- Require operators to wear appropriate protective gear, such as gloves, eye protection, and hearing protection.
- Never bypass safety controls or operate the machine with multiple sheets loaded simultaneously.
- Keep the work area clean and free of obstacles to prevent accidents.
- Conduct regular safety audits to maintain a safe working environment.
| Maintenance Task | Frequency | Description |
|---|---|---|
| Cleaning work area and machine | Daily | Remove debris, wipe surfaces, clean die area |
| Lubrication of moving parts | Daily to weekly | Apply recommended lubricants to guides, bearings, crankshaft |
| Inspect punch and die | Weekly | Check for wear, cracks, alignment |
| Check hydraulic fluid levels | Weekly | Top up fluid and inspect for leaks |
| Inspect electrical wiring and controls | Monthly | Check connections, clean components |
| Tighten loose fasteners | Monthly | Prevent misalignment and vibration damage |
| Replace worn parts | As needed | Replace damaged or worn components |
| Full mechanical inspection | Quarterly | Disassemble key parts for detailed inspection |
| Operator safety training | Annually or as needed | Refresh knowledge and safety protocols |
Modern punch press machines can benefit from condition monitoring technologies that help predict maintenance needs before failures occur.
- Vibration analysis can detect bearing wear or misalignment.
- Thermal imaging identifies overheating components.
- Oil analysis detects contamination or degradation in hydraulic fluids.
- These tools help schedule maintenance proactively, reducing unexpected downtime.
The quality of punching depends largely on the condition of the punch and die.
- Sharpen punches and dies regularly to maintain clean cuts and reduce machine strain.
- Use die cushions or back gauges to support material and improve accuracy.
- Store tooling properly to prevent damage and corrosion.
For hydraulic punch press machines:
- Monitor hydraulic fluid temperature to avoid overheating.
- Use clean, manufacturer-recommended hydraulic fluids.
- Replace hydraulic filters regularly to prevent contamination.
- Inspect hoses and seals for leaks or cracks.
- Cause: Misalignment of punch and die, worn tooling, or incorrect setup.
- Solution: Check and realign tooling, replace worn punches or dies, verify machine setup.
- Cause: Insufficient lubrication, loose fasteners, worn bearings.
- Solution: Lubricate moving parts, tighten all bolts and screws, inspect and replace bearings.
- Cause: Low fluid levels, leaks, or contaminated fluid.
- Solution: Check and refill hydraulic fluid, inspect hoses and seals, replace fluid if necessary.
- Cause: Damaged wiring, faulty sensors, or control panel issues.
- Solution: Inspect and repair wiring, replace sensors, test control panel components.
- Cause: Debris buildup, incorrect material thickness, or tooling damage.
- Solution: Stop machine, clear debris, verify material specifications, inspect tooling.
Proper maintenance and servicing of a punch press machine are essential for maximizing its lifespan, ensuring operator safety, and maintaining high-quality production. By adhering to a regular cleaning and lubrication schedule, conducting thorough inspections, promptly replacing worn parts, and maintaining electrical and hydraulic systems, you can keep your punch press machine running smoothly and efficiently. Safety checks and operator training are equally important to prevent accidents and ensure a safe working environment. Leveraging modern condition monitoring tools and using visual aids for training can further enhance maintenance effectiveness. A well-maintained punch press machine is not only a durable asset but also a key contributor to efficient and safe manufacturing processes.
Lubrication should be done daily or weekly depending on the machine usage and manufacturer recommendations. Critical moving parts like guides, bearings, and crankshafts require regular lubrication to prevent wear and overheating.
Signs include unusual noises, vibration, misaligned punches, inconsistent punching quality, hydraulic pressure drops, and visible wear or damage on parts. Regular inspection helps catch these early.
No. Operating without safety guards is dangerous and violates safety regulations. Guards protect operators from injury and must always be in place and functional.
Use brushes, vacuum, and compressed air to remove metal shavings. Avoid using hands directly near moving parts. Always ensure the machine is powered off before cleaning.
Immediately check fluid levels and inspect hoses and seals for damage. Replace faulty components and refill hydraulic fluid as per manufacturer guidelines. Do not operate the machine until the issue is resolved.
