In the fast-paced industrial world, where productivity and precision drive profitability, uncoiler machines serve as a cornerstone in the metal sheet processing line. From automotive and construction to appliance manufacturing and stamping industries, a reliable uncoiler ensures seamless coil feeding, prevents material damage, and supports continuous production. Selecting the right machine for your factory requires a deep understanding of its capabilities, compatibility, and functional design. This guide explores the key features to consider when buying an uncoiler machine, helping factory owners make informed investment decisions that boost efficiency and reduce long-term costs.

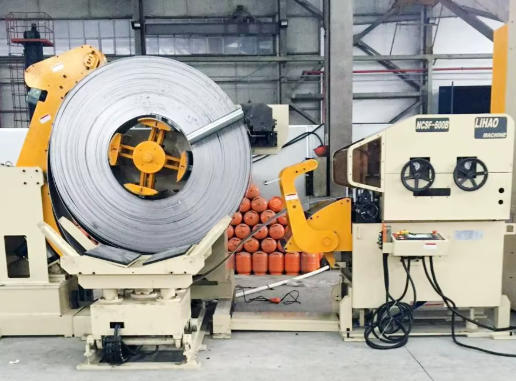

An uncoiler machine, also known as a decoiler, is designed to hold heavy coils and unroll them at a controlled speed for further processing in downstream equipment such as press machines, roll forming lines, or shears. The machine typically consists of a mandrel, a driving mechanism, and tension control systems to regulate material flow.
In a modern factory, the uncoiler acts as the first stage of production — feeding raw coil materials precisely into the next stage, ensuring that each sheet or strip maintains uniform tension, straightness, and alignment.
By maintaining controlled unwinding, an uncoiler prevents deformities, enhances product quality, and minimizes downtime in the entire coil feeding line.

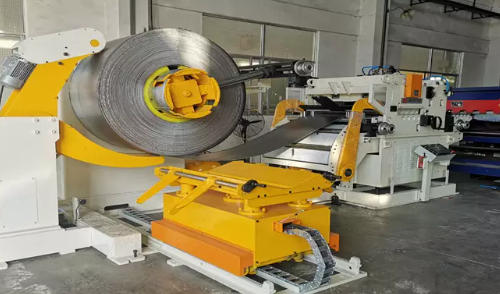

The load capacity determines the maximum coil weight the machine can handle. Factories processing thin aluminum or small steel coils might require only light-duty uncoilers, whereas heavy-duty facilities need machines capable of supporting up to 20 tons or more. Always verify that your chosen uncoiler matches these critical specifications:
- Maximum coil weight capacity (5–20 tons depending on industry use).
- Coil width range, ensuring compatibility with your typical material sizes.
- Outer and inner diameter adjustments to accommodate different coil formats.
Choosing an uncoiler with appropriate capacity prevents overload stress, reduces maintenance frequency, and maintains safe working operations.
The next key feature is the operation mode. Manual uncoilers offer simplicity and affordability, best suited for small workshops or medium-volume production. They rely on hand-cranked expansion and manual adjustment.
By contrast, motorized uncoilers are driven by electric or hydraulic systems, enabling automatic speed synchronization and smoother unwinding. They are typically found in automated roll forming or stamping lines, where efficiency and precision are crucial.
Some advanced models include servo-controlled systems that adjust coil feed rates according to sensor feedback — minimizing coil tension fluctuations and material stress during processing.
Tension control plays a vital role in maintaining smooth material flow. Without proper regulation, the coil might unwind too quickly or resist feeding, leading to scratches, uneven edges, or even line stops.
The modern uncoiler offers several sophisticated braking technologies:
- Mechanical brakes – cost-effective but less precise for high-speed operations.
- Pneumatic brakes – provide uniform tension through air pressure adjustments.
- Servo or electronic brakes – deliver superior precision, ideal for thin or delicate materials.
Factory owners should prioritize tension systems that maintain consistency across varying speeds and coil diameters. For large production lines, electronic tension feedback ensures stable, repeatable performance.
The mandrel holds the coil securely and rotates during unwinding. Its expansion mechanism should align with your coil size variety and changeover frequency.
Manual mandrels with mechanical screws work effectively for low-production environments, but hydraulic expansion mandrels are the industry standard for high-volume lines. They offer quick adjustments, uniform expansion pressure, and solid coil grip — reducing chances of coil slippage and minimizing downtime.
If your operation frequently changes coil sizes or materials, investing in automatic hydraulic mandrels can drastically improve setup efficiency.
Safety should never be overlooked in coil feeding systems. High-speed unwinding involves heavy, rotating parts and potential hazards. New-generation uncoilers include advanced protection and ergonomic features such as:
- Emergency stop and safety interlocks
- Protective guarding around rotating shafts
- Automatic over-speed sensors to prevent coil runaway
- Coil centering devices and pinch rollers for precise alignment
- Backup tension brakes for sudden stoppages
Some models even use infrared or laser safety sensors to halt operations if personnel enter restricted zones, creating a safe and compliant production environment.
An uncoiler should never operate as an isolated unit. Its feed rate must align perfectly with downstream machines such as straighteners, feeders, and press systems. Proper synchronization prevents coil slack or excessive tension.
Key technologies include:
- Loop control units that monitor coil slack and automatically adjust speed.
- Variable frequency drives (VFDs) for seamless speed variation.
- PLC-controlled systems allowing total line communication and synchronization.
When paired with a servo feeder, speed control allows continuous feeding without material distortion — an essential feature for high-speed stamping lines.
Handling coils manually can be inefficient and unsafe. Choose machines that incorporate loading assistance systems, such as hydraulic coil lifters or coil cars. These enable operators to position heavy coils accurately onto the mandrel, reducing risk of injury or coil damage.
Automated coil loading carts equipped with alignment sensors ensure the coil is perfectly positioned each time and speed up the loading process in high-output environments.
An uncoiler's reliability stems from its design and materials. For long-term durability, opt for machines built with:
- Heavy-duty steel frames to absorb vibration and torque.
- Precision-machined shafts and bearings for smooth rotation.
- Corrosion-resistant coating or powder paint finish.
- Reinforced base supports for large coil weights.
High structural stability reduces vibration, ensuring feeding accuracy and extending equipment lifespan — a critical advantage for high-speed applications.
Most coil processing lines require a straightener to remove coil curvature and a feeder to guide material into the press or cutting system. To achieve ideal results, choose an uncoiler that can integrate seamlessly with these units:
- Compatible line heights and feed directions
- Communication interfaces for synchronized control
- Modular connection points for expansion
A combined uncoiler-straightener-feeder configuration offers compact footprint, reduced installation time, and optimized line efficiency — a modern standard for space-limited workshops.
Today's manufacturing plants emphasize automation and smart data management. An uncoiler equipped with intelligent control systems can optimize performance and offer real-time insights:
- Touchscreen interfaces and PLC controllers for operator-friendly control.
- Remote diagnostics and preventive maintenance alerts.
- Automatic coil alignment and speed adjustment according to material thickness.
- Compatibility with Industry 4.0 smart factory solutions.
Such features reduce human error, allow predictive servicing, and provide data for continuous improvement — essential benefits for competitive, high-volume factories.
Energy consumption significantly affects a plant's operating costs. An efficient uncoiler not only saves electricity but also supports environmental initiatives. Look for machines with:
- Servo motors optimized for power savings.
- Regenerative braking systems that recover kinetic energy.
- Eco-friendly hydraulic systems that minimize oil usage.
Modern uncoilers designed with these considerations are not only eco-conscious but also economically beneficial in the long run.
Reliable post-purchase service ensures long-lasting performance. Manufacturers offering quick technical support and spare parts availability can drastically minimize production interruptions.
Evaluate suppliers based on their service network, technical training programs, and maintenance documentation. Proper after-sales support is particularly important if your factory runs 24/7 operations with minimal downtime tolerance.
Each production environment has unique demands. Some factories require compact uncoilers for limited space, while others need large-scale, heavy-duty models. Many manufacturers offer custom-built machines tailored to customer requirements — such as dual mandrel configurations, adjustable coil car systems, or vertical arrangements.
Customization ensures the equipment aligns perfectly with your workflow, maximizing operational flexibility and productivity.
Price alone shouldn't dictate your purchase. A low-cost uncoiler may seem attractive initially, but frequent maintenance or poor synchronization can lead to significant losses over time.
Evaluate machines on total operating cost, including maintenance, energy consumption, spare parts accessibility, and expected service life. Investing in a higher-quality, well-supported model often provides greater long-term returns through improved uptime and reliability.
Finally, select a manufacturer with proven experience in coil feeding technology, a strong reputation for innovation, and documented technical certifications.
Experienced suppliers often offer comprehensive line solutions — from coil cars and straighteners to feeders and press automation — ensuring total compatibility and easier maintenance coordination. Their expertise can also support factory layout planning and installation guidance.
Choosing the right uncoiler machine requires a holistic approach — evaluating technical performance, safety, automation capabilities, and supplier reliability. The machine's load capacity, tension system precision, mandrel expansion, and speed synchronization directly affect production quality and efficiency.
Factories aiming for seamless coil processing and minimal downtime should prioritize hydraulic expansion, electronic tension controls, and integrated automation systems.
A durable, well-engineered uncoiler isn't merely equipment; it's a long-term industrial asset that supports sustainable and profitable production. Always consult professional manufacturers, compare features, and consider the lifetime operating value before purchasing. With the right choice, your factory gains not only efficiency but also enhanced competitiveness in the global manufacturing market.
Manual expansion requires mechanical adjustment to fit the coil, suitable for smaller operations. Hydraulic expansion automatically adapts to different coil diameters using hydraulic pressure, offering faster setup and improved safety.
Evaluate your largest coil specifications — including weight, width, and diameter — and ensure the machine's rated capacity meets at least 120% of your maximum coil weight for added safety and flexibility.
Yes, but for optimal feeding quality and surface flatness, pairing the uncoiler with a straightener and feeder is recommended, especially in high-precision applications like stamping or roll forming.
An electronic tension system automatically adjusts braking force and unwinding speed based on sensor feedback, reducing coil deformation and maintaining uniform feed — resulting in higher precision and fewer line stoppages.
Perform regular lubricant checks, clean the mandrel and rollers, inspect hydraulic seals, and calibrate tension controls. Scheduled preventive maintenance every six months keeps the system running safely and efficiently.
