CNC punch presses are essential machines in modern sheet metal fabrication, combining precision, speed, and automation to produce complex metal parts efficiently. This comprehensive article explores what a CNC punch press is, how it works, its types, advantages, applications, and maintenance. We will also include relevant images and videos to illustrate the concepts and conclude with a FAQ section to address common questions.
A CNC punch press is a computer numerically controlled machine designed to punch holes, shapes, and forms into sheet metal with high precision. It uses programmed instructions to control the movement of the punch and die tools, enabling the creation of complex patterns and features like countersinks, beads, louvres, and more on metal sheets. Unlike manual punch presses, CNC punch presses automate the process, improving accuracy, repeatability, and production speed.
The machine typically consists of a turret holding multiple punch tools, a hydraulic or mechanical ram that applies force, and a CNC control system that directs the punching operations based on a digital file.
The CNC punch press operates by converting digital design files into precise mechanical actions. The process begins with programming the machine using CAD/CAM software, which translates the desired shapes and hole patterns into coordinate instructions.
- The sheet metal is loaded onto the machine bed.
- The CNC system moves the sheet to the correct position using servo motors.
- The turret selects the appropriate punch tool from its stations.

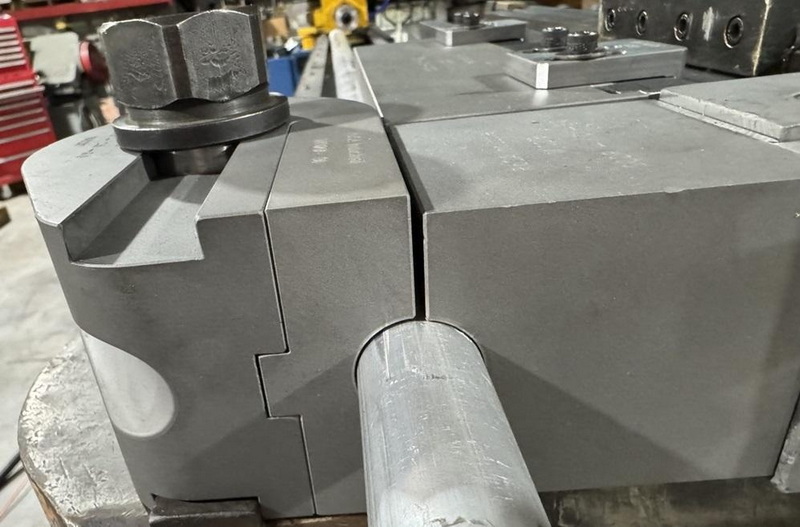

- The ram applies force, pressing the punch through the sheet metal against the die, creating the desired hole or shape.
- The sheet is repositioned automatically for the next punch.
- This cycle repeats until the entire pattern is completed.
The machine can switch between different tools automatically, allowing complex multi-shape parts to be produced in a single run without manual tool changes.
The turret punch press features a rotating turret that holds multiple punch and die tools. It is highly versatile, capable of performing various operations like punching, forming, embossing, and notching without changing tools manually. The turret can rotate to bring the required tool into position quickly, enabling fast production cycles.
This type is widely used in industries requiring diverse sheet metal parts, such as automotive, aerospace, and electronics.
Mechanical punch presses use a mechanical system to drive the ram, often powered by a flywheel and clutch. They are known for high-speed punching and are suitable for repetitive, high-volume production where speed is critical.

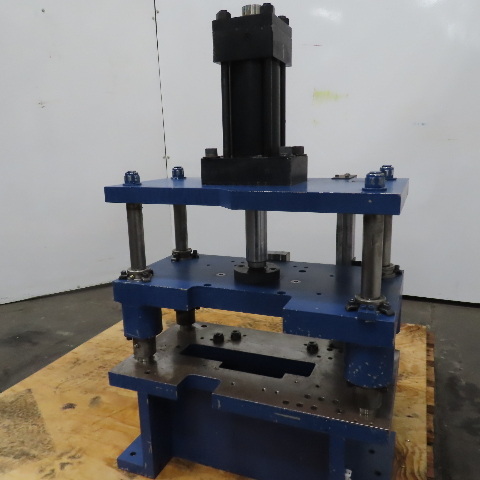

Hydraulic punch presses use hydraulic cylinders to apply force. They offer greater control over punching pressure and speed, making them suitable for thicker materials or more delicate operations.
These machines use servo motors to control the ram, offering precise control over punching speed and force with energy efficiency and reduced noise. They are increasingly popular for their flexibility and lower operating costs.
CNC punch presses deliver exceptional precision due to computer control of the punching coordinates and tool selection. This ensures every part produced matches exact specifications, with high repeatability even in large production runs.
The automation of tool changes and sheet positioning allows CNC punch presses to operate at high speeds, significantly increasing throughput compared to manual or conventional machines.
With multiple tools available on the turret, CNC punch presses can perform various operations such as perforation, cutting, embossing, and forming on different sheet metal materials including carbon steel, aluminum, copper, and galvanized steel.
Automated loading and unloading systems reduce manual labor, allowing continuous operation and lowering labor costs. The CNC control system also monitors the process for errors, improving production efficiency and reducing waste.
Compared to laser cutting machines, CNC punch presses consume less power and do not require auxiliary gases, making them cost-effective for many applications.
Modern CNC punch presses incorporate safety controls such as brake anti-misoperation devices, safety hooks, and switches to protect operators during machine operation.
CNC punch presses are widely used across various industries for producing sheet metal components:
- Automotive Industry: Manufacturing body panels, brackets, and structural parts.
- Aerospace: Producing lightweight, complex-shaped components.
- Electronics: Fabricating enclosures, chassis, and mounting plates.
- Home Appliances: Creating panels and frames for appliances.
- Solar Panels: Punching frames and mounting parts.
- Bank Cards and Precision Components: Producing intricate designs with tight tolerances.
1. Design Input: The part design is created in CAD software and converted into CNC programming code.

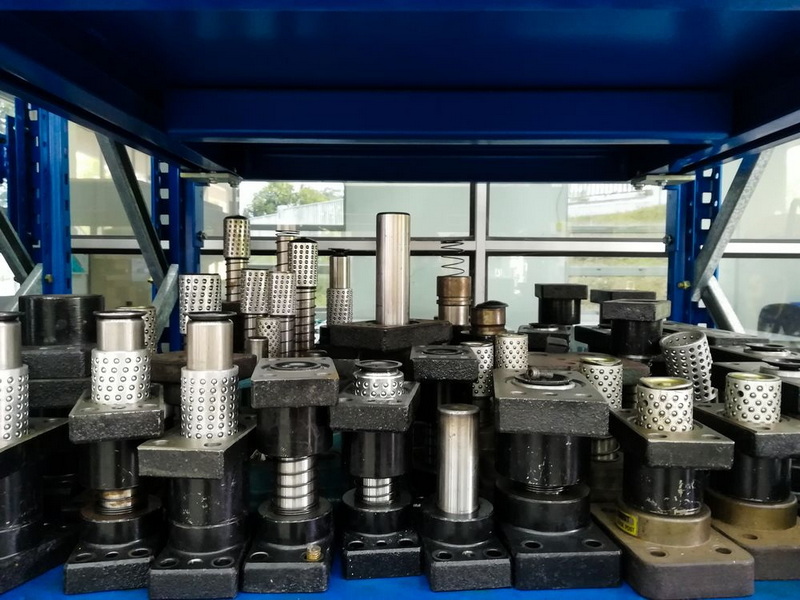

2. Tool Preparation: Punch tools are selected and loaded into the turret.
3. Sheet Loading: The metal sheet is loaded onto the machine bed.
4. Punching Process: The CNC system controls the sheet movement and tool selection to punch the programmed pattern.
5. Unloading: Finished parts are removed, and scrap is cleared automatically or manually.
6. Quality Inspection: Parts are inspected for edge quality and dimensional accuracy; minor manual finishing may be applied if needed.
Proper maintenance ensures the longevity and performance of CNC punch presses:
- Regular Lubrication: Keep moving parts like the ram and turret well-lubricated.
- Tool Inspection: Check punches and dies for wear and replace as necessary.
- Software Updates: Maintain CNC control software for optimal performance.
- Cleaning: Remove metal debris and dust to prevent jams.
- Safety Checks: Regularly test safety devices and emergency stops.
Modern CNC punch presses often integrate advanced automation technologies to maximize productivity and reduce human intervention. Automated sheet loaders and unloaders can feed raw sheets into the machine and remove finished parts seamlessly, enabling continuous operation even during off-hours.
Robotic arms can be employed for stacking and sorting punched parts, minimizing manual handling and enhancing workplace safety. Additionally, integration with factory management software allows real-time monitoring of production metrics, tool wear, and maintenance schedules, ensuring optimal machine utilization.
CNC punch presses contribute to sustainable manufacturing by minimizing material waste through precise punching and nesting of parts on sheets. The machines' energy-efficient designs, especially servo-electric models, reduce power consumption compared to older mechanical systems.
Moreover, the ability to reuse scrap metal and recycle materials further supports eco-friendly practices in sheet metal fabrication industries.
A CNC punch press is a sophisticated, automated machine that revolutionizes sheet metal fabrication by combining precision, speed, and versatility. It uses computer numerical control to punch complex shapes and forms into metal sheets efficiently, reducing labor costs and increasing production output. Whether in automotive, aerospace, electronics, or general manufacturing, CNC punch presses are indispensable for producing high-quality metal parts with consistent accuracy. Their advanced features, including multi-tool turrets, automated loading systems, and safety controls, make them a smart investment for modern fabrication shops aiming for productivity and quality.
The integration of automation and environmental considerations further enhances their role in sustainable and efficient manufacturing processes, making CNC punch presses a cornerstone technology in the metalworking industry.
CNC punch presses can process a wide range of sheet metal materials including carbon steel, stainless steel, aluminum, copper, galvanized steel, and aluminum-zinc plates. The choice depends on the machine's tonnage and tooling.
While both can cut sheet metal, CNC punch presses use mechanical force to punch holes and shapes, often faster and more cost-effectively for certain thicknesses. Laser cutters use focused light to cut and can handle more intricate cuts but usually at higher operating costs.
Most CNC punch presses can handle sheet metal thicknesses from about 0.5 mm up to 6 mm for mild steel, with some capable of thicker materials depending on their power and tooling.
Yes, many CNC punch presses can perform shallow drawing, embossing, bending, and other forming operations in addition to punching holes, increasing their versatility.
The turret holds multiple tools and rotates to bring the required punch and die into position automatically during the program cycle, eliminating the need for manual tool changes and speeding up production.
