A hydraulic press is a powerful machine that uses hydraulic cylinders to generate a compressive force. It operates on the principle of Pascal's law, allowing a small force applied on a small area to be magnified into a much larger force on a bigger area. This technology has revolutionized manufacturing and industrial processes by enabling precise shaping, molding, and compressing of materials with efficiency and high force.
A hydraulic press is a mechanical device that uses the static pressure of a fluid, usually oil, to shape, deform, or compress materials. It was invented by Joseph Bramah in 1795, who applied the principles of fluid mechanics to create a machine capable of multiplying force. This invention, sometimes called the Bramah press, marked a significant advancement in mechanical engineering.
The press consists mainly of two interconnected cylinders filled with hydraulic fluid. A small piston (plunger) applies force to the fluid, which transmits pressure to a larger piston (ram), generating a much greater force on the material to be pressed.
The impact of the hydraulic press on industry cannot be overstated. Before its invention, metal forming and shaping were labor-intensive and limited by human strength or cumbersome mechanical systems. The hydraulic press introduced a new era of precision and power, enabling the mass production of complex parts and components with consistent quality.
The core principle behind the hydraulic press is Pascal's law, which states that pressure applied to a confined fluid is transmitted undiminished throughout the fluid. This means that when a force is applied to a small piston, the pressure created is transferred equally to a larger piston, resulting in a magnified force.

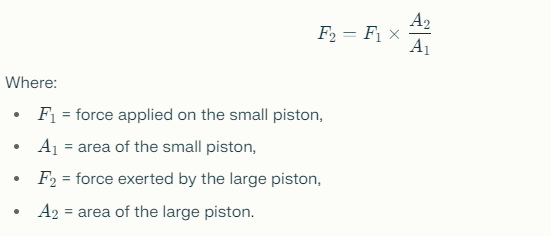

Mathematically, this can be expressed as:
This relationship allows a small input force to generate a much larger output force, depending on the ratio of the piston areas. For example, if the large piston has an area ten times greater than the small piston, the output force will be ten times the input force.
Understanding the components helps appreciate how the press functions as a whole:
- Hydraulic Pump: This device converts mechanical energy, often from an electric motor, into hydraulic energy by pumping oil through the system. It creates the flow of fluid necessary for pressure generation.
- Hydraulic Cylinder: The heart of the press, this cylinder contains a piston connected to a ram. The hydraulic fluid pressure pushes the piston, which in turn applies force to the workpiece.
- Control Valves: These regulate the flow and direction of hydraulic fluid, enabling precise control over the movement and pressure of the piston.
- Hydraulic Fluid: Typically oil, this fluid transmits power efficiently and lubricates the system. It must be incompressible and stable under pressure.
- Reservoir: Stores the hydraulic fluid and allows for expansion, cooling, and removal of air bubbles.
1. Force Application: The operator or an automated system applies a small force to the small piston, either manually or via a motor-driven pump.
2. Pressure Transmission: The hydraulic fluid transmits this pressure through connecting pipes to the larger piston.
3. Force Multiplication: The larger piston moves with a force magnified according to the piston area ratio, pressing the material beneath it.
4. Material Processing: The material is shaped, compressed, or molded depending on the die or tooling attached to the ram.
5. Control and Safety: Control valves and sensors ensure the press operates within safe limits, adjusting pressure and stroke length as needed.
Hydraulic presses come in various types depending on their design, size, and application. Each type offers unique advantages suited to specific industrial needs.
This design features four vertical columns supporting the upper and lower plates. It provides excellent stability and strength, making it ideal for heavy-duty operations like forging and large metal forming. The open frame allows easy access to the workpiece.
Named for its “C” shaped frame, this press offers greater accessibility on three sides, making it suitable for smaller parts and assembly operations. It is often used in workshops and smaller manufacturing plants.
The H-frame press is robust and designed for high precision and heavy loads. Its symmetrical frame reduces deflection, ensuring consistent pressing force and accuracy in forming parts.
Hydroforming presses use hydraulic fluid pressure to shape metal sheets or tubes into complex shapes. This process is common in automotive and aerospace industries where lightweight, strong, and complex parts are required.
This press uses a rubber pad as a flexible die to form sheet metal without damaging its surface. It is useful for prototyping and small batch production where tooling costs need to be minimized.
Hydraulic presses are indispensable in many industries due to their versatility and power. Below are some key application areas:
- Metal Forming: Hydraulic presses are widely used for forging, stamping, blanking, and deep drawing of metal parts. They can shape metals into complex geometries with high accuracy and repeatability.
- Automotive Industry: Many car parts, such as engine blocks, transmission components, suspension parts, and body panels, are manufactured using hydraulic presses. The ability to apply high force with precision is critical in this sector.
- Consumer Goods: Hydraulic presses form parts for furniture, appliances, and tools. For example, they press metal hinges, handles, and frames.
- Electronics: In electronics manufacturing, hydraulic presses are used to form circuit boards, connectors, and casings with delicate precision.
- Concrete Block Production: Hydraulic presses compact concrete mixtures into uniform blocks and paving stones, ensuring strength and durability.
- Foundation Pile Installation: Hydraulic presses help drive steel piles into the ground, providing stable foundations for buildings and bridges.
- Prefabricated Building Components: Laminated wood panels and insulated building panels are bonded and pressed using hydraulic machines.
- Geology: Hydraulic presses crush rock samples into fine powders for geochemical analysis and research.
- Powder Compacting: In powder metallurgy, hydraulic presses compact metal powders into solid shapes before sintering.
- Recycling: Hydraulic balers compress recyclable materials like cardboard, plastic, and metal for easier handling and transport.
Hydraulic presses offer numerous benefits that make them preferred choices in various industries.
Compared to mechanical presses, hydraulic presses can generate very high forces without requiring large, bulky machinery. This compactness saves factory floor space.
The ability to finely control pressure, speed, and stroke length allows for delicate operations and complex shapes. This precision reduces material waste and improves product quality.
Hydraulic presses enable the production of parts with minimal scrap by accurately shaping materials. This efficiency contributes to cost savings and environmental benefits.
They can handle a wide range of materials, including metals, plastics, rubber, composites, and powders. This versatility allows manufacturers to use one machine for multiple applications.
Modern hydraulic presses incorporate safety valves, overload protection, and emergency stop features, reducing the risk of accidents.
Proper maintenance is crucial for the longevity and safe operation of hydraulic presses.
- Regular Inspection: Check hydraulic fluid levels, cleanliness, and condition. Contaminated fluid can damage components.
- Seal and Hose Checks: Inspect seals and hoses for leaks or wear. Hydraulic leaks can cause pressure loss and safety hazards.
- Valve and Pump Maintenance: Ensure valves and pumps operate smoothly and respond correctly.
- Operator Training: Proper training on machine operation and emergency procedures is essential.
- Safety Guards: Install physical barriers and interlocks to protect operators from moving parts.
The hydraulic press is a cornerstone of modern manufacturing and industrial processing. Its ability to amplify force through hydraulic fluid pressure, based on Pascal's law, allows it to perform tasks ranging from metal forming to concrete block production with high precision and efficiency. Invented over two centuries ago, it remains a vital tool due to its versatility, power, and adaptability in numerous fields.
From forging automotive parts to compacting recyclable materials, the hydraulic press continues to drive innovation and productivity. Its combination of high force, precision control, and safety features makes it indispensable in today's industrial landscape.
The hydraulic press operates on Pascal's law, which states that pressure applied to a confined fluid is transmitted equally throughout the fluid, allowing a small force on a small piston to be magnified into a larger force on a bigger piston.
Key components include the hydraulic pump, hydraulic cylinder (with piston and ram), control valves, hydraulic fluid, and a reservoir for the fluid.
Hydraulic presses are used in automotive, manufacturing, construction, electronics, geology, and consumer goods industries for tasks such as metal forming, molding, compacting, and assembly.
A hydraulic press uses fluid pressure to generate force, allowing for more precise control and higher force in a compact space, whereas a mechanical press relies on mechanical levers and linkages.
Safety features include relief valves to prevent overpressure, limit switches to control stroke length, emergency stop buttons, and protective guards to ensure operator safety.
