In modern manufacturing, efficiency, precision, and consistency form the foundation of competitiveness. Among the most indispensable tools in the production process lies the 40 ton punch press—a machine capable of shaping, cutting, forming, and fabricating metal sheets with immense accuracy and force. Whether in automotive production lines, metal workshops, or appliance manufacturing plants, this power-driven equipment enables precise repetition and mass production without sacrificing quality.
The following in-depth analysis examines what makes a 40 ton punch press vital for efficient manufacturing in today's industrial landscape. We will explore its structure, function, benefits, technological integrations, and how it supports cost-effective, sustainable operations globally.
A punch press applies compressive force via a punch-and-die set to alter the shape or surface of a workpiece. The machine's "40 ton" classification signifies that it can exert 40 tons of pressure, making it ideal for medium-scale forming and punching tasks.
1. Frame: Provides the main structure that maintains rigidity during pressing operations.
2. Ram (Slide): Moves vertically to apply the punching force.
3. Bed and Bolster Plate: Support and secure the die assembly.
4. Clutch/Brake Assembly: Controls the ram motion precisely for repetitive cycles.

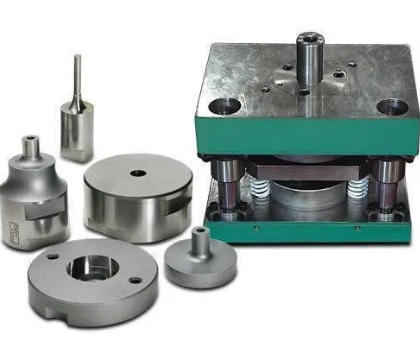

5. Tooling (Punch and Die): The custom-made parts that define the final component geometry.
6. Drive Mechanism: Can be mechanical, hydraulic, or servo-controlled, influencing speed and pressure characteristics.
7. Control System: Modern presses use PLC or CNC systems to manage automation, precision, and safety interlocks.
The balance between speed, strength, and precision in a 40 ton press enables it to handle an exceptionally diverse range of materials and part geometries.
The 40 ton press delivers rapid cycle times, allowing hundreds of punching strokes per minute. High-speed production combined with automated feeding systems enables continuous operation, reducing downtime and increasing productivity.
Die setups are optimized for minimal scrap generation. When equipped with nesting software, CNC punch presses can arrange punching patterns to use every inch of sheet material efficiently—significantly cutting down waste.
Every cycle produces identical parts with controlled tolerances, typically within ±0.001–0.003 inches. This consistency is essential in industries that depend on high-volume precision manufacturing, such as automotive parts and electronics housings.
The 40 ton punch press can seamlessly switch between various tool and die configurations, allowing manufacturers to execute multiple operations—punching, embossing, forming, notching—on one machine.
With automation, servo controls, and ergonomic operation panels, human error is minimized, and the workload on operators significantly decreases. This promotes workplace safety and efficiency.
The 40 ton punch press is a versatile machine, serving as the backbone of production in several fields.
Ideal for making brackets, shells, enclosures, frames, and panels where consistent hole patterns and bends are needed. Fabrication workshops rely heavily on such presses for volume-driven projects.
Punch presses process sheet metal parts like door panels, fasteners, brackets, and clips. Their speed and accuracy ensure every component fits perfectly into assembly lines.
Used for producing perforated panels, switchboards, connectors, and mounting brackets for devices. The precision of CNC control ensures delicate parts are handled without deformation.
Vent covers, air conditioner bodies, washing machine covers, and refrigeration panels are formed using punch presses due to their ability to produce clean cuts and embossed textures.
Products like hinges, handles, and building connectors are mass-produced efficiently using this equipment, making it critical for architectural and infrastructure hardware suppliers.
A 40 ton punch press is available in different technological configurations, each serving distinct purposes and industries.
| Type | Mechanism | Key Benefits | Best Used For |
|---|---|---|---|
| Mechanical Press | Energy stored in a flywheel and transmitted by mechanical linkage. | Extremely fast cycle rate, consistent accuracy, economical operation. | High-volume production and thin to medium sheet metals. |
| Hydraulic Press | Pressure generated by hydraulic pistons and fluid. | Variable force, longer stroke, smoother operation, low noise. | Thicker or denser materials requiring deeper forming or embossing. |
| Servo Press | Electrically controlled servo motors provide power instead of traditional drives. | Adjustable stroke profiles, energy efficiency, adaptive speed control. | Smart manufacturing requiring high flexibility and reduced downtime. |
Servo systems now dominate modern manufacturing cells for their responsiveness, energy savings, and flawless repeatability. Many manufacturers upgrade their mechanical lines with servo retrofits for digital integration.
Automation plays an essential role in achieving lights-out manufacturing, where machines run with minimal human supervision. With CNC-controlled 40 ton presses, manufacturers can optimize operational control and drastically reduce error.
- Precise Control: Every parameter—stroke depth, dwell time, feed rate—is programmable.
- Multi-tool Stations: Allow quick tool changes without manual intervention.
- Pattern Optimization: Software designs the best layout to minimize waste.
- Integration with Robotics: Robots can load and unload sheets automatically.
- Data Monitoring: Sensors and IoT modules track equipment health and production quality.
Through computer control, even mid-sized factories can achieve automation levels previously reserved for large-scale smart plants.
Operating a 40 ton punch press involves significant force, hence stringent safety measures are critical.
- Light curtains and photoelectric sensors to prevent hand injury.
- Dual-hand control buttons ensuring safe operations.
- Emergency stop circuits and overload detection.
- Enclosed guarding systems and noise reduction panels.
- Brake monitoring for instantaneous stoppage.
Compliance with OSHA, CE, and ISO standards assures both operator safety and machine reliability, a top priority in global manufacturing.
- Ensure stable, vibration-resistant flooring to prevent movement during punching cycles.
- Verify precision alignment between upper and lower dies.
- Properly ground electrical and hydraulic systems to avoid fluctuations.
- Maintain adequate clearance space for loading and maintenance access.
Operators must undergo proper training to handle tool changes, pressure adjustments, and safety locking mechanisms. Using programmable panels simplifies the setup for repeat jobs, saving time and effort.
1. Check and lubricate moving parts daily.
2. Inspect die wear to maintain punching precision.
3. Replace hydraulic oil when contaminated or discolored.
4. Periodically calibrate CNC systems for positional accuracy.
5. Run regular vibration and thermal tests to detect irregularities.
Consistent maintenance ensures continuous output, improved product quality, and lower long-term costs.
The financial and ecological returns of investing in a 40 ton punch press are substantial.
- Lower Operational Costs: Automated cycles reduce dependence on skilled labor.
- Material Conservation: Advanced nesting cuts waste and boosts yield.
- Energy Efficiency: Servo and hybrid models consume up to 30% less power.
- Reduced Downtime: Automated error detection prevents long stoppages.
- Compact Design: Occupies less floor space without compromising strength.
Moreover, the durability of such machines minimizes replacement frequency, reducing industrial waste generation—an advantage in sustainable production strategies.
Choosing the right punch press means aligning its specifications with production needs.
Key Considerations:
- Material Type: Softer metals like aluminum may prefer mechanical presses, while hard stainless requires hydraulic force.
- Stroke Rate and Length: Define based on material thickness and job type.
- Control System: CNC systems add flexibility for complex shapes.
- Die Compatibility: Evaluate your plant's tooling inventory.
- After-sales Support: Choose manufacturers offering reliable service and spare part accessibility.
Working with experienced equipment suppliers ensures long-term technical stability and integration support for future upgrades.
A mid-level electronics manufacturer integrated a CNC 40 ton press into their sheet fabrication line. The results after six months were remarkable:
- Output increased by 32% per production shift.
- Scrap rates decreased by 18% due to optimized tool movement.
- Setup time for new jobs dropped by 40% through digital programming.
- The company achieved full ROI within 15 months, thanks to energy savings and reduced overtime.
Such outcomes underline the transformative role of a 40 ton punch press in building resilient, efficient, and cost-effective production ecosystems.
The evolution of 40 ton presses continues alongside digital transformation. Equipped with smart sensors, data analytics, and AI-assisted predictive maintenance, presses now communicate within broader factory networks.
- Cloud-based machine monitoring for remote maintenance.
- Digital twins simulating punch press performance for optimization.
- Integration with automated material feeders and inspection systems.
- Predictive AI algorithms that detect tool wear before failure occurs.
These technologies transform traditional press operations into data-driven, self-correcting systems—leading the era of intelligent manufacturing.
The 40 ton punch press represents more than a manufacturing tool—it is the cornerstone of productivity, accuracy, and industrial modernization. Its balance between power and flexibility allows manufacturers to transition effortlessly from prototype production to large-scale operations.
From reduced costs and energy savings to unmatched repeatability and automation readiness, the 40 ton punch press exemplifies how advanced machinery supports industrial efficiency and sustainability. As factories move toward smart automation, this machine remains indispensable, bridging traditional craftsmanship with the future of intelligent fabrication.

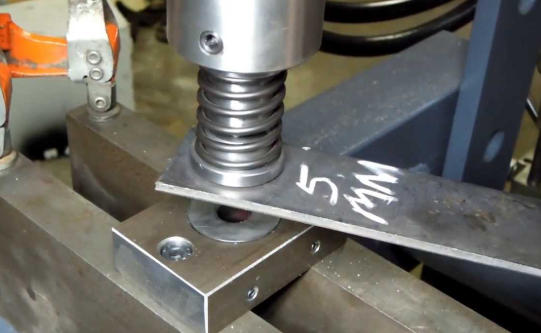

The machine can process various metals including mild steel, stainless steel, copper, brass, aluminum, and titanium sheets ranging up to 5 mm in thickness.
By optimizing material usage, reducing waste, and employing energy-efficient drive systems like servo motors, the press contributes significantly to green manufacturing goals.
Yes. Small workshops value its efficiency and compact size, while large-scale operations integrate multiple presses into automated systems for mass production.
When properly maintained, the machine can last 20 to 30 years, operating efficiently even under continuous use.
Absolutely. Older mechanical presses can be retrofitted with servo drives, digital controls, and sensors to meet Industry 4.0 standards.
