Hydraulic presses are fascinating machines capable of generating immense force from relatively small inputs. But can a small hydraulic press really lift a heavy object? This article explores the principles behind hydraulic presses, their capabilities, and how even a small hydraulic press can lift surprisingly heavy loads. We will also include visual aids to help you understand the mechanics and practical applications of hydraulic presses.
A hydraulic press is a machine that uses liquid pressure to generate a compressive force. It operates based on Pascal's Law, which states that pressure applied to a confined fluid is transmitted equally in all directions. This principle allows a small force applied on a small piston to be magnified into a much larger force on a bigger piston, enabling the press to lift or compress heavy objects.
- The press consists of two connected cylinders of different sizes filled with hydraulic fluid.
- When force is applied to the smaller piston, it creates pressure in the fluid.
- This pressure is transmitted to the larger piston, which exerts a larger force because of its greater surface area.
- The force multiplication allows the hydraulic press to lift or press heavy objects with relatively little input force.
This means a hydraulic press can lift weights far beyond what the input force alone could manage.
Yes, a small hydraulic press can lift a heavy object, thanks to the force multiplication effect of hydraulic systems. The key is the ratio of the piston areas: the larger the area of the output piston compared to the input piston, the greater the force multiplication.
The relationship between input and output force is given by:

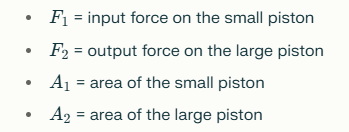

Where:
Because the fluid is incompressible, the volume displaced by the small piston equals the volume moved by the large piston. This means the small piston must move a greater distance to lift the heavy load a smaller distance, trading distance for force.

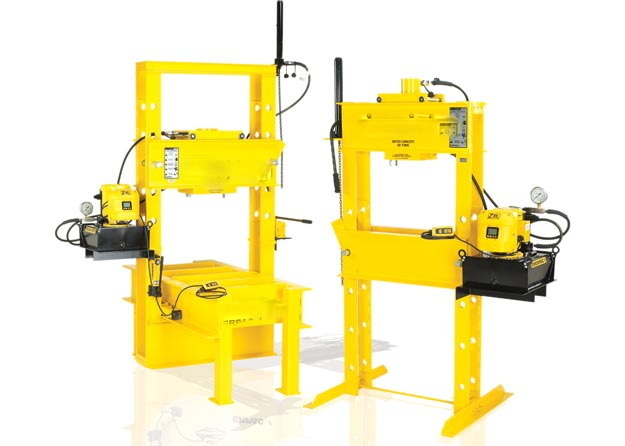

Small hydraulic presses are widely used in various industries and everyday applications where lifting or pressing heavy objects is required but space or input force is limited.
- Automotive repair: Hydraulic jacks lift cars with minimal human effort.
- Manufacturing: Small presses shape metal parts by exerting high force.
- Construction: Hydraulic lifts raise heavy beams or equipment.
- Laboratories: Small presses apply precise compressive forces for testing materials.
- Force amplification: A hydraulic press can lift heavy objects with small input force.
- Precision control: Operators can control the pressure and force accurately.
- Compact size: Even small presses can generate large forces due to fluid mechanics.
- Efficiency: Hydraulic systems transmit nearly all input force without significant loss.
While a small hydraulic press can lift heavy objects, there are practical limits:
- The size of the larger piston limits the maximum force.
- The input piston must move a longer distance, requiring more fluid displacement.
- The structural strength of the press components must withstand the forces.
- Hydraulic fluid pressure must be maintained within safe limits to avoid leaks or failures.
1. Setup: Place the heavy object on the large piston platform.
2. Apply Force: Press down on the small piston with a manageable force.
3. Fluid Pressure Transmission: The hydraulic fluid transmits pressure equally.
4. Force Multiplication: The larger piston exerts a multiplied force.
5. Object Lifting: The heavy object is lifted as the large piston moves upward.
6. Control: Release valves control the descent and pressure release.
The secret behind why a small hydraulic press can lift heavy objects lies in the physics of fluids and pressure. When a force is applied to the small piston, it creates pressure in the hydraulic fluid. This pressure is transmitted unchanged throughout the fluid, according to Pascal's Law. Because the larger piston has a greater surface area, the same pressure results in a larger force.
This means that even a small hydraulic press can generate a large lifting force if the output piston is sufficiently large. The trade-off is that the small piston must move a longer distance to displace enough fluid to raise the larger piston a smaller distance. This is a classic example of mechanical advantage, where force is traded for distance.
Hydraulic jacks used in automotive repair are classic examples of small hydraulic presses lifting heavy objects. A mechanic applies a relatively small force on the jack handle, which moves the small piston. The hydraulic fluid transmits this pressure to the large piston under the car, lifting the vehicle safely off the ground.
In material testing labs, compact hydraulic presses apply high compressive forces to test the strength and durability of materials. Despite their small size, these presses can generate thousands of pounds of force, demonstrating that a hydraulic press can lift or compress heavy objects beyond what their physical size might suggest.
To ensure that a hydraulic press can consistently lift heavy objects safely, proper maintenance is essential:
- Check Hydraulic Fluid Levels: Low fluid can reduce pressure transmission.
- Inspect for Leaks: Hydraulic fluid leaks reduce efficiency and can cause failure.
- Replace Worn Seals: Seals prevent fluid loss and maintain pressure.
- Lubricate Moving Parts: Reduces wear and improves smooth operation.
- Test Pressure Regularly: Ensure the system operates within safe limits.
Proper maintenance extends the life of the press and ensures it can lift heavy objects reliably.
While a hydraulic press can lift heavy objects, safety is paramount:
- Never exceed the manufacturer's rated capacity.
- Use the press on a stable, level surface.
- Keep hands and body parts clear of moving components.
- Wear appropriate safety gear such as gloves and eye protection.
- Regularly inspect the press for damage or wear before use.
Following these precautions ensures safe operation and prevents accidents.
A small hydraulic press can indeed lift heavy objects by exploiting the principles of fluid mechanics and Pascal's Law. The key is the force multiplication achieved through the difference in piston areas, allowing a small input force to generate a large output force. This makes hydraulic presses invaluable tools in industries ranging from automotive repair to manufacturing and construction. While there are practical limits to the size and force of small presses, their efficiency, precision, and compactness make them powerful lifting machines. Proper maintenance and safety precautions further ensure their reliable and safe operation.
A small hydraulic press can lift weights ranging from a few hundred pounds to several tons, depending on its piston sizes and hydraulic fluid pressure. The exact capacity depends on the design and specifications of the press.
The lifting capacity depends on the area ratio between the large and small pistons and the maximum pressure the hydraulic fluid can safely sustain. Larger output pistons and higher fluid pressure result in greater lifting force.
Yes, because of force multiplication, a hydraulic press can lift objects much heavier than its own weight by applying a small input force over a small piston area to generate a large output force.
Hydraulic presses typically use incompressible fluids like mineral oil or specialized hydraulic oil, which transmit pressure efficiently and lubricate the system.
When used properly and maintained well, small hydraulic presses are safe. It is important to follow manufacturer guidelines, avoid exceeding pressure limits, and regularly inspect for leaks or wear.
