Buying a 40-ton punch press is a serious investment for any metal fabrication or stamping business. This equipment serves as the backbone of sheet metal operations, helping transform flat sheets into efficiently formed components used across industries such as automotive, construction, and electronics. Choosing the right model ensures consistent production quality, increased efficiency, and reduced downtime.
However, the market offers a wide variety of machine designs, control systems, and tonnage options. Without careful evaluation, it's easy to overspend or purchase an underperforming system. This article explores all major considerations before buying a 40-ton punch press, including power, tooling, control, maintenance, and supplier reliability — helping you make a well-informed, profitable decision.
A punch press uses a die set and ram to cut, shape, or form sheet metal. The pressing force is measured in tons — in this case, 40 tons means the machine exerts 40 tons of downward pressure in each stroke. This tonnage suits small-to-medium fabrication jobs such as bracket production, electrical enclosure panels, and lightweight automotive parts.

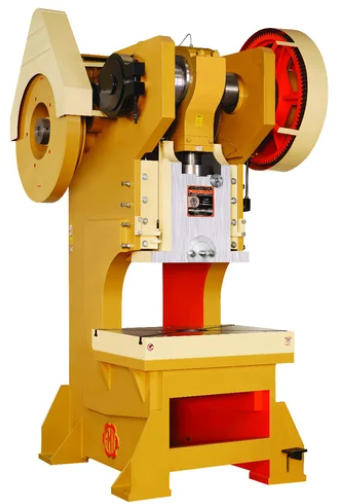

1. Mechanical Punch Press
A flywheel-driven system working through a clutch and crankshaft, offering high cycle speeds and excellent efficiency for repetitive punching tasks.
2. Hydraulic Punch Press
Utilizes hydraulic power to drive the ram, delivering consistent force and smoother motion control suitable for thicker or complex parts.
3. Servo or CNC-Controlled Punch Press
Employs electric or servo motors with computer numerical control (CNC) systems, offering programmable motion, tool positioning automation, and energy efficiency.
Selecting between these designs primarily depends on your production goals—speed, precision, and automation flexibility.
Before comparing product catalogs, start with your real-world needs. Overestimating or underestimating machine capability can severely impact your budget or workflow.
Ask yourself:
- What materials will you process (steel, stainless steel, aluminum, or composites)?
- What are the thickness ranges of these materials?
- What tolerance levels are required for your end products?
- What's the annual output volume expected?
A 40-ton capacity is excellent for materials within 0.5–5 mm thickness. If your production involves occasional thick stainless components, consider a slight capacity buffer (45–50 tons).
Ensuring you choose appropriate press tonnage prevents premature wear and damage. Although the press nameplate shows 40 tons, your actual operation may require a smaller portion of that capacity.
You can estimate tonnage using:
Tons=Perimeter (inches)×Material Thickness (inches)×25
Always leave a 10–20% safety margin, especially for continuous operations or hard materials like stainless steel. It's not advisable to operate at 100% capacity for long durations.
Larger tables make sheet handling easier and prevent multiple repositionings. For example, a 900 mm x 700 mm table comfortably handles medium-sized panels with minimal operator adjustments.
It measures the distance from the punch center to the machine frame, typically 8–20 inches for a 40-ton model. Deeper throats increase working flexibility, allowing off-center holes or larger workpieces.
You should balance accessibility with rigidity; deeper throats sometimes reduce structural stiffness if not properly reinforced.
Stroke length indicates how far the ram travels during each cycle. A longer stroke suits deep forming or bending, while short strokes speed up punching rates.
Control system sophistication also matters—the more programmable the motion, the finer your results will be.
- Mechanical presses may reach 150–250 strokes per minute (SPM).
- Hydraulic presses average 40–100 SPM, with superior pressure control.
- CNC models enable adjustable stroke profiles, minimizing blank deformation.
For precision components, choose a press that allows easy parameter programming and die safety monitoring.
High-quality tooling ensures sharp cuts, consistent part dimensions, and extended service life.
- Tool interface standardization: Whether the press accepts Trumpf- or Amada-style tools.
- Tool change mechanism: Quick-change turrets save setup time.
- Tool lubrication: Integrated systems reduce tooling wear.
- Die clearance adjustability: Helps accommodate various materials.
Poor-quality tools cause burrs, misalignment, and excessive noise—negatively affecting both part quality and machinery health.
The machine frame must endure repeated stress cycles without deflection or vibration.

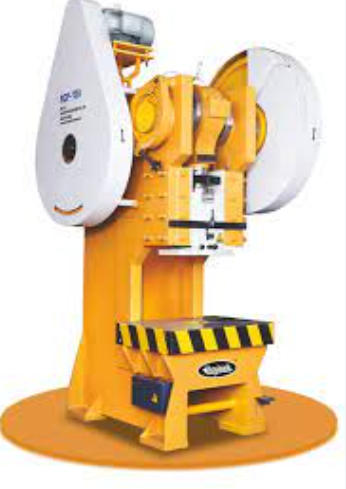

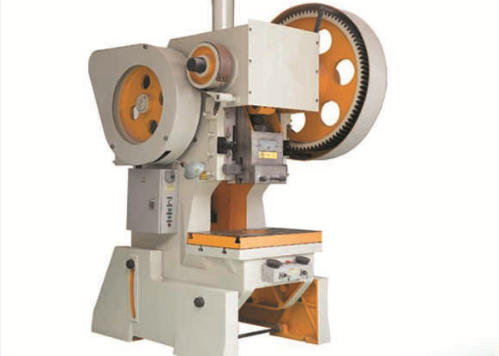

- C-Frame: Offers open access for inserting sheets manually but may deflect slightly under heavy loads.
- H-Frame (Straight-Side): More rigid and balanced, suitable for higher precision and automation setups.
A well-built frame improves die alignment, reduces noise, and ensures longer component lifespan. It's wise to inspect the machine's casting or welding integrity before committing to purchase.
Today's punch presses increasingly support smart manufacturing environments.
Key features include:
- Programmable motion (CNC/Servo): For positioning accuracy ±0.05 mm.
- Automatic feeders or material loaders.
- Touchscreen HMI (Human-Machine Interface) for real-time status tracking.
- Remote monitoring and IoT analytics for predictive maintenance.
For medium-to-heavy-duty workshops, automation can cut labor costs by up to 40% and greatly reduce setup time.
A well-maintained press lasts decades. Regular upkeep not only preserves productivity but also prevents breakdowns that could halt production.
- Lubricate bearings, gears, and transmission shafts daily.
- Check clutch/brake assemblies for response accuracy.
- Monitor oil pressure and filter conditions in hydraulic systems.
- Realign dies weekly and inspect slide clearances quarterly.
- Replace worn seals or gaskets as soon as leakage appears.
Lower-cost machines can become expensive over time if parts availability or service support are limited, so ensure your vendor provides stable supply channels.
Modern manufacturing emphasizes operator protection and safe work environments. Look for:
- Light curtains and two-hand controls to prevent accidental activation.
- Automatic overload protection devices.
- Machine guarding and interlocking systems.
- Certification under ISO 12100, CE, or OSHA requirements.
Safety-oriented machines protect operators and also align your business with insurance and regulatory obligations.
Selecting a reputable manufacturer or authorized distributor is often the most overlooked yet crucial decision.
- Does the brand have an established track record of machine reliability?
- Are local parts and service easily available?
- What's the response time for technical support?
- Does the manufacturer offer training programs?
Renowned names like Amada (Japan), Durma (Turkey), and JFY (China) lead in 40-ton CNC models. Meanwhile, emerging brands like Yawei, HARSLE, and ACCURL offer premium affordability and custom configurations.
While pricing varies significantly based on configuration, expect the following general ranges:
- Mechanical 40-ton press: $8,000–$15,000
- Hydraulic press: $12,000–$25,000
- CNC/Servo press: $30,000–$50,000
Your total ROI should consider:
- Productivity improvement (%).
- Labor reduction.
- Scrap rate reduction (from 10% down to 3% typical target).
- Estimated payback period (often 1–2 years).
Careful cost analysis ensures your purchase stays profitable throughout its lifetime.
If you are running an automated workshop, the new 40-ton press must fit flawlessly into existing infrastructure.
- CAD/CAM connection: Import programs directly without manual data entry.
- ERP connectivity: Synchronize machine schedules with production planning.
- Conveyor systems or robotic arms: For part loading/unloading automation.
Choosing a model with open software architecture (e.g., G-code compatibility) simplifies future expansions.
As sustainability becomes an industry focus, equipment energy efficiency matters more than ever.
- Servo-electric drives reduce energy usage by up to 30% compared with traditional hydraulic systems.
- Eco-hydraulic units minimize oil circulation losses.
- Noise-control designs, such as acoustic enclosures and vibration absorbers, enhance worker comfort.
- Oil mist collection systems maintain cleaner air quality.
Compliance with local environmental standards reflects your company's social responsibility and brand credibility.
1. Ignoring precision tolerance: A 40-ton press with poor slide accuracy can lead to significant scrap.
2. Undervaluing tooling quality: Cheap dies wear out quickly and cost more long-term.
3. Skipping local service checks: Imported models without nearby service centers increase downtime risks.
4. Neglecting operator training: Even an advanced CNC press underperforms without a properly trained operator.
5. Overlooking room layout: Presses need stable foundations and comfortable work clearance zones.
Mitigating these pitfalls keeps your investment protected and operations stable.
To make your final purchase decision smoother, evaluate potential suppliers using a structured checklist:
- Verified capacity and structural compliance.
- Clear installation and warranty documentation.
- After-sales service availability.
- Demonstrated machine performance videos or in-person trials.
- Export experience and technical documentation in your preferred language.
- OEM customization for special layouts or automation add-ons.
You can assign points to each vendor across performance, cost, delivery, and service, choosing the one offering the most balanced value.
A 40-ton punch press offers tremendous potential for manufacturers aiming to improve metal processing efficiency. From mechanical drives to advanced CNC systems, the right selection determines your output quality, reliability, and profitability.
When purchasing:
- Match tonnage and stroke capacity to real production needs.
- Prioritize precision, automation, and after-sales support.
- Evaluate long-term ownership costs, not just the purchase price.
An informed investment leads to smoother operation, shorter payback cycles, and higher-quality results. With proper maintenance, a modern 40-ton punch press can serve your operation for decades, forming the foundation of a productive and scalable manufacturing system.
It can process metals such as mild steel, stainless steel, brass, aluminum, and copper sheets, typically within 0.5–5 mm thickness, depending on tool setup.
CNC presses automate programming, reduce operator error, and ensure uniform part quality. They also enable tool indexing and multiple operations in one setup.
Routine checks should occur daily for lubrication and visual inspection, weekly for fasteners and alignments, and quarterly for system calibration.
Yes. Many older presses can integrate feeders, robotic arms, or CNC retrofitting systems, provided the frame and drive system are structurally sound.
Typically, a reinforced foundation 300–400 mm thick with vibration insulation pads ensures stability and reduces noise transmission during heavy cycles.
