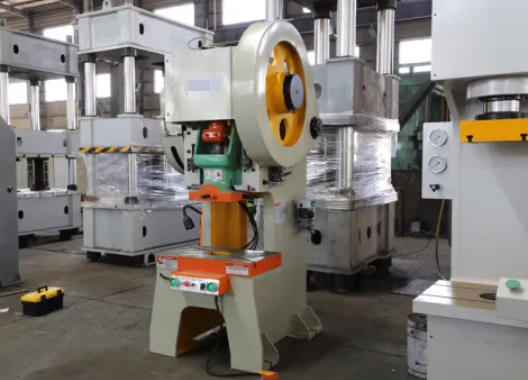

A 40 ton punch press machine is a critical piece of metal fabrication equipment used across industries such as automotive, aerospace, appliance manufacturing, and construction. It provides the force necessary to cut, stamp, or form sheet metal into desired shapes with high precision and repeatability. Selecting the right press for your operations requires more than just matching tonnage — it involves understanding machine design, technology integration, and operational efficiency.
This article explores in depth the key features to look for when buying a 40 ton punch press machine. You'll learn what makes a machine durable, efficient, and safe, and how modern innovations such as automation, servo drives, and digital control systems are transforming production quality.
A punch press operates by applying mechanical or hydraulic force through a die set to deform or punch holes in a metal sheet. A 40-ton capacity refers to the press's maximum force output — sufficient for medium to heavy-grade sheet metal parts, including washers, brackets, and enclosure components.
A typical press includes:
- Frame: The rigid body that supports all loads.
- Ram/Slide: The moving part that transfers force.
- Bed/Table: The surface that holds the die.
- Clutch and Brake Mechanism: Controls the movement of the ram.
- Control Panel: Manages modes, pressure, and automation.
- Drive Motor: Powers the press via flywheel or hydraulic pumps.
Understanding how these systems work together is key to choosing the correct model for your manufacturing line.
A high-quality 40 ton punch press machine ensures:
- Consistent part accuracy.
- Reduced tooling wear and tear.
- Improved energy efficiency.
- Safer operation and compliance with standards.
- Simplified die changes for different production runs.
Each feature you choose translates directly to performance outcomes. Investing in a machine with the proper specifications guarantees long-term savings, lower maintenance, and productivity gains.
The frame bears the entire punching load and maintains alignment between tooling surfaces. A robust frame minimizes deflection and vibration during operation.
Ideal frame characteristics include:
- Welded or monoblock cast iron construction for superior rigidity.
- Finite element analysis (FEA) optimized design for stress resistance.
- Precision machining of guide surfaces for tighter tolerances.
- Internal rib reinforcements for stable force distribution.
A well-built frame prevents die misalignment and dimensional errors while prolonging operational life.
Your production requirements determine the drive mechanism that suits you best.
Mechanical 40 Ton Punch Press:
- Uses a flywheel and crankshaft for motion.
- Provides high stroke speed (50–200 strokes per minute).
- Best for repetitive, high-output operations.
- Slightly lower cost of ownership.
Hydraulic 40 Ton Punch Press:
- Operates via fluid power and cylinders.
- Allows full pressure throughout the stroke.
- Ideal for forming deeper or thicker parts.
- Enables better control over ram speed.
Each has its niche. For fast punching jobs like electrical components, mechanical drives excel. For forming, embossing, or bending, hydraulic models provide fine-tuned force adjustment.
Modern punch presses integrate CNC (Computer Numerical Control) or PLC-based systems to streamline workflows.
Key advantages:
- Touchscreen HMIs for quick job setup.
- Recipe storage to recall process parameters.
- Programmable feeder control to handle coil or sheet material.
- Integration with factory networks for performance monitoring.
These systems not only enhance precision but also enable predictive maintenance through data logging and motor feedback, helping you detect issues before failures occur.
Stroke length defines how far the ram travels per cycle. Proper adjustment improves tool contact and precision.
Options include:
- Manual stroke adjusters with locking mechanisms.
- Electronic stroke control built into servo-driven models.
- Variable die height adjustment to fit multiple dies.
Adjustability ensures versatility for different parts — from shallow punching to deeper drawing operations.
Safety, precision, and operator control rely heavily on the clutch-brake assembly.
Preferred system features:
- Air friction or wet clutch designs for smooth motion.
- Instant braking response for emergency stops.
- Dynamic stopping sensors regulated through PLC safety circuits.
- Low inertia clutches to minimize shock loading.
Machines with dual safety control circuits (press logic and mechanical stoppage) ensure zero delay in halting motion, reducing accident risks significantly.
The ram, responsible for applying direct force on the die, must move linearly and consistently.
High-end machines feature:
- Precision ground guideways for tight tolerance motion.
- Lubrication channels that reduce wear.
- Hydrostatic or roller guides to minimize backlash.
- Automatic clearance compensation for longer part accuracy retention.
This results in cleaner edges, less burr formation, and less frequent die recalibration.
Efficiency is a growing priority. With global emphasis on sustainability, energy-smart equipment reduces both cost and carbon footprint.
Consider presses with:
- Servo-electric drives that conserve power during idle times.
- Soft-start motors for lower startup current draw.
- Optimized flywheel mass for balanced energy delivery.
- Power monitoring systems displaying real-time consumption.
Selecting energy-efficient machinery can reduce operational energy use by 15–25% annually.
Tooling flexibility is essential for modern batch production.
Recommended tooling features:
- Standardized tool holders compatible with global systems.
- Hydraulic clamping systems for rapid die swaps.
- Die-lifters and support bolts for safety during changing operations.
Some advanced presses offer auto die change systems that can reduce setup time from 30 minutes to less than 5 minutes, dramatically increasing output efficiency.
Operator safety is paramount. Today's machines include both hardware and electronic safety systems to prevent injury.
Essential safety components:
- Two-hand control buttons.
- Photoelectric sensors that detect obstruction.
- Mechanical guards and interlocked doors.
- CE and ISO certified control systems.
- Automatic overload protection.
Safety-graded electronics comply with international standards, minimizing the risk of operation under unsafe conditions.
A 40 ton punch press should be designed with simplicity in maintenance and service.
Check for:
- Accessible panels for daily inspection.
- Integrated lubrication systems.
- Self-diagnosis displays identifying fault codes.
- Wide network of parts suppliers.
Top manufacturers provide detailed maintenance manuals and online support, ensuring downtime is minimized even in continuous-use environments.
Manufacturers now offer a wide selection of optional upgrades:
- Automatic coil feeding and straightening systems for continuous sheet operations.
- Material sensors and rejection systems to ensure only defect-free parts proceed.
- Noise reduction pads that improve workplace comfort.
- Scrap removal conveyors that maintain a clean production area.
Such accessories can increase throughput, improve operator ergonomics, and reduce cleanup time per cycle.
When evaluating different brands, compare the following specifications and metrics carefully:
| Specification | Recommended Range | Importance |
|---|---|---|
| Stroke Speed | 60–150 SPM | Determines production speed |
| Slide Adjustment Range | 50–80 mm | Flexibility for different dies |
| Shut Height | 200–350 mm | Allows versatility of die setup |
| Bed Area | 500 x 900 mm (approx.) | Affects die size compatibility |
| Motor Power | 5–7.5 kW | Impacts energy demand |
| Precision Grade | JIS Level 1 or 2 | Defines dimensional accuracy |
Knowing these helps align the machine with both your product requirements and future scalability.
Selecting the right partner is as critical as the machine itself. The manufacturer's approach to engineering, service support, and warranty terms will define your ownership experience.
Tips when choosing a supplier:
1. Verify ISO 9001 and CE certification for quality assurance.
2. Request machine test runs or factory visits before purchasing.
3. Check whether they offer OEM/ODM custom engineering.
4. Review export history and spare parts policies.
5. Evaluate after-sales training programs and technician assistance.
Top-tier Chinese and Taiwanese suppliers, for example, are known for cost-effective customization, while European brands provide unmatched durability and automation integration.
Modern 40 ton punch presses incorporate smart manufacturing technologies that redefine efficiency.
Trending innovations:
- Servo Press Technology: Offers variable stroke speed and precise tonnage control with reduced mechanical wear.
- IoT Connectivity: Enables remote condition monitoring and performance analysis.
- AI-Powered Maintenance: Predicts component fatigue based on usage data.
- Low-Noise Engineering: Through vibration isolation, quieter flywheels, and improved damping frames.
These advances make press operations safer, faster, and far more energy efficient, aligning production plants with Industry 4.0 goals.
A 40 ton punch press machine is an investment that shapes the future of your fabrication capacity. From frame construction to automation, safety, and precision, every feature plays a role in determining performance and long-term reliability. Whether you choose mechanical or hydraulic models, prioritize systems with advanced control options, ergonomic design, and certified safety compliance.
When evaluating machines, look beyond tonnage alone — consider control flexibility, tooling compatibility, and service support to ensure optimal productivity. Modern presses, enhanced with servo and IoT technologies, allow manufacturers to achieve higher accuracy, lower energy use, and maximum uptime, contributing to a competitive and sustainable production workflow.
It can effectively punch, bend, or form mild steel, stainless steel, aluminum, copper, and brass sheets up to about 5–6 mm thick, depending on die size and operation type.
For standard factory usage, a press should be serviced every 500–1000 hours of operation. This involves checking lubrication systems, tightening fasteners, testing brakes, and recalibrating the ram alignment.
Yes. Most new models come with automatic sheet or coil feeding systems, programmable from the main control panel. This enables fully automated punching lines for continuous production.
Punching accuracy depends on frame rigidity, die alignment, and ram precision. Machines with servo control and feedback sensors maintain consistent tonnage throughout the entire stroke.
Always use photoelectric safety barriers, two-hand controls, and emergency stop systems. Operators should wear protective gloves and be trained to manage die setup procedures safely and properly.
