Proper press selection is one of the most crucial decisions in any metal fabrication or stamping operation. The choice of the correct punch press determines not only production efficiency but also part quality, energy usage, and long-term profitability. A 40 Ton Punch Press offers a balanced combination of power and flexibility—strong enough for industrial-grade sheet metal forming, yet compact and economical for mid-sized production lines.
This comprehensive guide will help you understand how to choose the right 40 Ton Punch Press for your production line by evaluating types, technical parameters, cost considerations, and operational strategies.
A punch press is a machine tool that shapes metal by applying pressure through a die and punch. The “40 Ton” indicates the total force output — 40 tons of pressure — which is transmitted to cut, bend, or form sheet material.
These machines are commonly used in industries such as automotive components, appliance manufacturing, electronics, and precision hardware. A 40 Ton Punch Press offers an ideal middle ground between light punching work and heavy-duty operations.
Typical applications include:
- Blanking, piercing, and trimming of small to medium parts
- Forming and embossing sheet materials
- Perforating or cutting metal parts for mechanical assemblies
- Fine blanking for precision parts
Different production targets require different press mechanisms. Choosing the best one depends on speed, precision, and material characteristics.

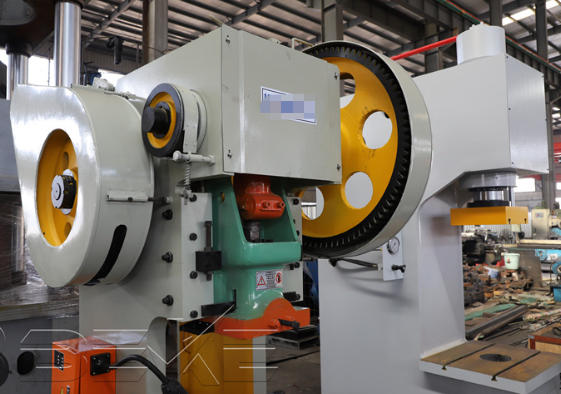

This type uses a motor-driven flywheel to convert rotary motion into linear movement through a crankshaft.
Advantages:
- Faster stroke cycles (ideal for mass production)
- Lower operating costs
- Simple design and low maintenance
Disadvantages:
- Limited stroke control
- Requires mechanical clutch maintenance
- Less suitable for variable-thickness materials
Best for: High-speed, repetitive tasks using uniform materials.
Hydraulic presses use oil pressure in cylinders to move the ram and punch. The force remains constant through the stroke range.
Advantages:
- Excellent control of tonnage and stroke
- Suitable for thicker or tougher materials
- Can easily stop mid-stroke for safety or precision
Disadvantages:
- Slower operation compared to mechanical types
- Requires periodic oil replacement and seal maintenance
Best for: Flexible operations and precision forming jobs.

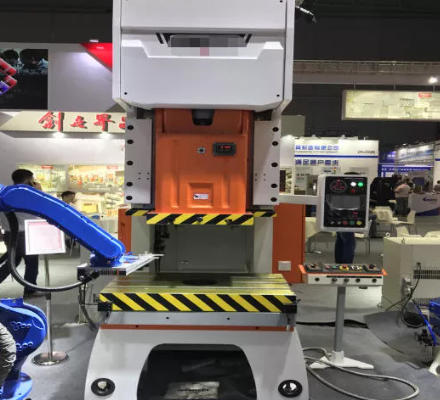

A servo-driven press integrates digital motors to control ram position and motion profiles.
Advantages:
- Very energy-efficient operation
- Programmable motion for custom forming profiles
- Extremely accurate positioning
Disadvantages:
- Higher initial investment
- Requires advanced operator training
Best for: Automated production lines requiring precision and repeatability.
When selecting a 40 Ton Punch Press, several parameters define whether it aligns with your production goals.
Ensure that the press delivers consistent tonnage across the working stroke. Overloading a press reduces its life and accuracy. Choose a model where the maximum tonnage is achieved before the die contacts the workpiece completely.
Stroke length affects the kind of operations you can perform. Deeper draws require longer strokes, while blanking or coining processes can use shorter ones for faster cycles.
Shut height—distance between slide and bed at bottom dead center—dictates die compatibility. Adjustable shut heights make it easier to fit different tooling.
A wide bed allows larger workpieces and multi-stage dies. Throat depth determines how deep the material can extend into the press without interference.
Check compatibility with your die mounts—whether it uses T-slots, standard die clamps, or quick-change systems. This affects setup efficiency and downtime.
Modern servo or hybrid presses can reduce energy use by 20–40%. Evaluate motor capacity (kW) relative to your expected duty cycle.
Digitally controlled models allow data monitoring, fault detection, and integration with production lines for smart manufacturing applications.
Not all production environments require the same press configuration.
- Prototype and Custom Jobs: A hydraulic or servo press allows flexible tonnage adjustment and variable speed control.
- Mass Production: A mechanical press offers unmatched speed and cycle consistency.
- Automated Systems: Servo-controlled press machines integrate easily with robotic part feeders, conveyors, and quality sensors.
Evaluating your process flow helps prevent over-specifying or underutilizing your equipment.
Purchasing a punch press is a long-term capital decision. To analyze your Return on Investment (ROI), consider:
Initial Cost Components:
- Machine base price
- Foundation setup and installation
- Electrical connection and safety certification
- Operator training
Operational Cost Components:
- Power consumption per shift
- Tooling wear and replacement
- Maintenance cycles and consumables
- Labor input and automation potential
While low-cost models may appear attractive, high-quality presses usually recoup their costs through reduced stoppages, better energy efficiency, and higher precision over time.
The mechanical strength of the press determines its accuracy and life expectancy.
Key elements affecting build quality:
- Frame Material: High-rigidity cast or welded steel frameworks resist deflection.
- Ram Guides: Precision linear guides or V-type slides enhance alignment accuracy.
- Lubrication Systems: Automatic oilers reduce wear on critical parts.
- Cooling Systems: For hydraulic presses, efficient heat dissipation extends system life.
Higher structural integrity means less vibration, resulting in more consistent part dimensions.
Routine maintenance ensures safe and efficient operation.
Suggested maintenance schedule:
- Daily: Check oil level, lubrication lines, and ram alignment.
- Weekly: Clean filters, inspect safety devices, and verify die clamping.
- Monthly: Calibrate sensors and check electrical components.
- Annually: Perform full alignment and condition monitoring with a certified technician.
Advanced presses feature predictive maintenance software that warns operators about issues like hydraulic leaks or motor overloads before failure occurs.
Safety is a top priority in any press operation. Choose a machine equipped with essential safety mechanisms, such as:
- Dual-hand operation buttons
- Emergency stop switches
- Light curtain guards
- Mechanical overload and clutch protection
- Die-area guarding systems
Additionally, look for models compliant with safety standards like ISO 16092 or CE to ensure operator protection and international certification.

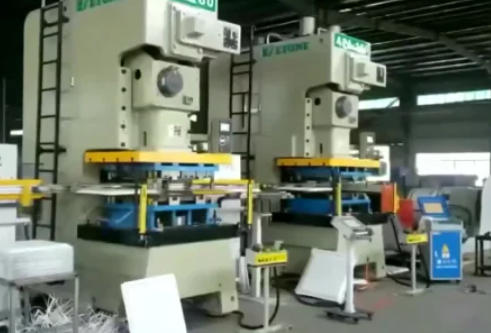

Automation and digital integration can transform a standard machine into a fully networked production asset.
- Automatic Feeders: Enable continuous sheet feeding for mass production.
- Conveyors or Robots: Assist in unloading and transporting finished parts.
- CNC Control Systems: Allow data-driven precision with minimal manual input.
- Sensors and IoT Connectivity: Enable real-time monitoring of pressure, stroke, and energy use.
A well-integrated 40 Ton Punch Press increases throughput and establishes consistency across multi-machine production systems.
Modern manufacturers increasingly value energy preservation and reduced environmental impact. Energy-efficient press models equipped with inverter motors or servo-control systems decrease electrical consumption by converting kinetic energy back into usable power during deceleration phases.
Hydraulic systems with advanced oil filtration and temperature monitoring also reduce oil degradation and waste disposal, supporting eco-friendly manufacturing.
When sourcing a machine from suppliers in China, Japan, Germany, or other industrial markets, consider the following:
- Brand reputation and years in operation
- Quality and certification records
- Warranty and technical support availability
- Local service partners or spare parts inventory
- References from existing clients in your industry
A trustworthy manufacturer can customize design features or adapt power systems to regional electrical standards (such as 220V/380V/415V, 50–60Hz).
Some high-end 40 Ton Punch Presses are equipped with advanced functions that improve efficiency and reduce human error:
- Die height memory: Automatically adjusts shut height for stored tools.
- Auto-lubrication timers: Optimizes lubrication frequency, minimizing overheating.
- Touchscreen HMI panels: Simplify parameter setup and operation feedback.
- Force monitoring systems: Detect overloads or misalignment in real time.
- Noise reduction design: Increases comfort in production areas.
These features provide accuracy, comfort, and productivity that can substantially improve long-term profitability.
A household appliance factory using stainless steel panels could integrate a 40 Ton hydraulic press for forming switch panels or control housings.
Workflow example:
1. Coil feeder loads steel sheets into the press.
2. The hydraulic press punches and forms each part within milliseconds.
3. Finished pieces move via conveyor to trimming or polishing stations.
4. Real-time sensors verify accuracy, and off-spec pieces are automatically removed.
This setup demonstrates how the correct press type directly enhances line efficiency and product consistency.
Selecting the right 40 Ton Punch Press is more than choosing a machine with the right tonnage rating. Successful purchasing decisions align machine performance, process demands, and cost-efficiency with business goals. Mechanical presses deliver unmatched speed for mass production, hydraulic versions excel in flexibility, while servo models bring ultimate control and energy savings.
Always verify that the press you choose matches your die setup, production speed, and operator skill level. With thoughtful selection and planned maintenance, a quality 40 Ton Punch Press can remain a reliable pillar of your production line for decades.
It can process steel, aluminum, copper, brass, and even nonmetallic materials like composite sheets, depending on die hardness and stroke force.
Servo presses outperform hydraulics in precision and efficiency for automated applications. However, hydraulic presses remain more versatile for varied materials and job setups.
Daily inspections and monthly maintenance checks are essential. For high-usage machines, schedule a complete preventive maintenance every 3–6 months.
Look for compliance with ISO 16092, CE, or OSHA guidelines to ensure safe operation and workplace protection.
Yes. Many models easily integrate with automated feeders, conveyors, and robotic handling systems for seamless mass production.
