In today's competitive manufacturing environment, precision and productivity are critical to maintaining competitiveness. The 40 ton punch press has become one of the most reliable and versatile machines used in metalworking and fabrication industries. With its balance of force, precision, and adaptability, it serves an essential role in punching, forming, embossing, and deep drawing operations. Capable of applying up to 40 tons of pressure, this machine allows fabricators to create complex components efficiently and consistently.
The integration of modern control systems, automatic feeding, and servo-drive technology has transformed the 40 ton punch press into a cornerstone of smart manufacturing, offering both high efficiency and flexibility in production lines.
A punch press operates using a ram and die system, where the punch tool pushes a workpiece into a die cavity, forming or cutting it into the desired shape. The 40 ton designation refers to the maximum force of 40 tons (approximately 80,000 pounds) applied by the press. This enables it to cut or form metals such as aluminum, stainless steel, copper, and mild steel with precision.
- Frame: Provides rigidity and stability during high-force applications.
- Ram (Slide): Moves vertically to transmit force onto the workpiece.
- Die Set: Determines the shape or pattern of the hole or cutout.
- Power Source: Mechanical flywheel, hydraulic pump, or servo motor.
- Control Unit: Regulates stroke length, pressure, and speed, often via CNC systems for enhanced accuracy.

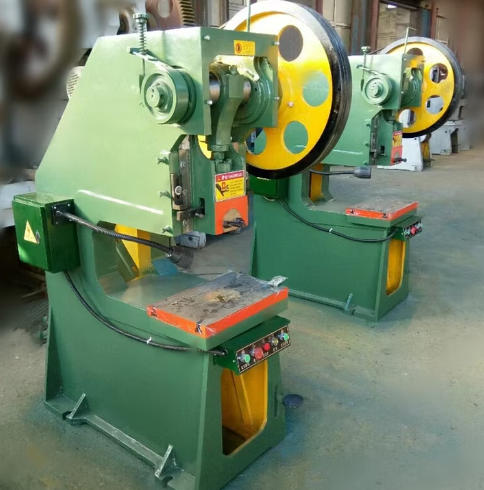

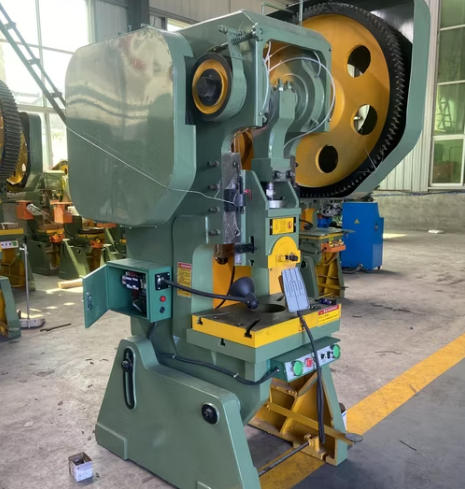

A mechanical punch press uses an electric motor and flywheel system to generate force. It's ideal for high-speed repetitive operations with thin or medium sheet metals.
Advantages:
- High production speed
- Cost-effective and easy to maintain
- Ideal for small-to-medium fabrication work
A hydraulic punch press utilizes a pump and cylinders to exert constant pressure throughout the stroke. It allows flexible force control and is suitable for thicker materials.
Advantages:
- Smooth and adjustable force output
- Greater accuracy for deep drawing or forming
- Reduced vibration and noise
The servo-driven or CNC-controlled punch press incorporates electronic precision through digital control. It can adjust speed, depth, and tonnage automatically.
Advantages:
- Improved repeatability and precision
- Lower energy consumption
- Integration with robotic feeding and smart sensors
Modern 40 ton presses can maintain dimensional accuracy within microns. CNC control ensures that each punch or cut maintains alignment, preventing cumulative error in large batch production. This consistency is essential in automotive and aerospace industries, where uniformity determines performance and safety.
Owing to its 40-ton capacity, the machine can punch multiple metals and composite alloys, from lightweight aluminum to durable stainless steel. With the right tooling, it can handle a range of thicknesses from 0.5 mm up to 6 mm, making it suitable for most medium-duty industrial applications.
Automation elements such as servo feeders and programmable die changers contribute to uninterrupted operation. Continuous feeding reduces downtime between cycles, achieving 20–30% faster throughput compared to lower-tonnage presses.
Machines of this class feature heavy-duty cast frames and precision bearings, minimizing deflection even under maximum load. A high-quality hydraulic or servo system ensures stable performance and minimal maintenance downtime over years of operation.
The hydraulic and servo drives consume power only during pressing cycles, unlike mechanical presses that run continuously. This leads to up to 40% energy savings in certain configurations, reducing overall operational costs.
Safety systems integrated into modern presses include:
- Photoelectric light curtains
- Two-hand operation mode
- Automatic overload protection
- Emergency stop buttons
These enforce compliance with safety standards while enabling semi- or fully-automated production lines.
Used to produce brackets, engine covers, panels, and reinforcements, a 40 ton press ensures accuracy in components that require consistent mechanical integrity. Automotive suppliers rely on these presses for medium-sized parts in both steel and aluminum.
Due to the high-precision requirements, aerospace fabricators use hydraulic versions for aluminum skin panels, fastener holes, and structural supports. Their controlled pressure ensures minimal distortion and excellent repeatability.
Used for punching enclosure parts, ventilation holes, and frames in washing machines, air conditioners, and ovens, the machine helps ensure standardized mass production with low cycle times.
Ideal for cutting and forming metal supports, panel frames, chair components, and building connectors, its 40-ton force allows manufacturers to efficiently handle mild and stainless steels.
The 40 ton punch press can punch stainless steel pots, sinks, and utensils accurately. This ensures clean edges and consistent surface finishes in consumer kitchen products.

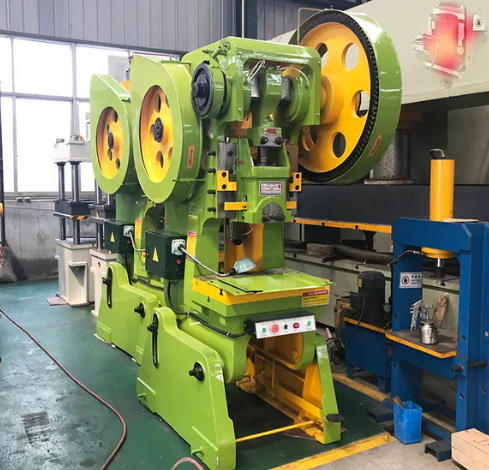

Using automated feeding and CNC programming, one operator can oversee multiple machines, substantially lowering labor costs. Automation also improves workplace ergonomics by reducing manual handling.
Hydraulic systems feature few moving parts, resulting in low mechanical wear. Preventive maintenance like regular lubrication and hydraulic oil checks is sufficient to maintain peak performance.
Compared with 60-ton or larger presses, a 40-ton model offers a perfect balance between cost, space efficiency, and performance, making it a top choice for both medium enterprises and large-scale manufacturers.
Its design is compact enough to be installed in limited workshop spaces while still offering industrial-grade power. Many models include modular frames that allow line integration with conveyors and robotic arms.
Modern 40 ton presses integrate several smart features that support Industry 4.0 manufacturing standards:
- Touchscreen Controls: Real-time monitoring and adjustment of pressure, stroke length, and cycle speed.
- IoT Connectivity: Remote diagnostics and maintenance monitoring via cloud-based platforms.
- Automatic Tool Change: Optimizes production efficiency by reducing tool changeover time.
- Servo-Drive Optimization: Balances torque and speed automatically for each material type.
These innovations enhance productivity while maintaining low error rates and promoting user-friendly operation.
A Tier 1 automotive supplier in the U.S. integrated a servo-driven 40 ton punch press into its production line for metal brackets. The results were significant:
- 35% increase in cycle efficiency
- 20% reduction in energy consumption
- Better alignment and reduced tool wear
By adopting servo technology, the company achieved higher productivity without sacrificing quality — a testament to the press's flexibility in modern manufacturing.
Leading 40 ton presses are engineered under ISO 9001 and CE certifications. Compliance with OSHA regulations ensures that these machines meet international benchmarks for:
- Operator safety
- Electromechanical reliability
- Structural integrity under repeated loads
Most prominent manufacturers such as HARSLE, Nargesa, and Pacific Press Technologies design models featuring emergency stop circuitry and light barrier systems to safeguard users during high-speed cycles.
Sustainability is becoming increasingly vital in manufacturing. A 40 ton punch press supports eco-friendly operations in several ways:
- Reduced energy waste from optimized hydraulic control
- Minimal scrap generation due to precise tooling alignment
- Noise reduction technology for quieter operations
- Long lifecycle, minimizing disposal and equipment replacement rates
These elements contribute not just to lower production costs but also to compliance with global green manufacturing initiatives.
When selecting the ideal press, factors include:
- Type of material: harder materials may require hydraulic or servo-driven models
- Production volume: mechanical presses suit mass production
- Automation level: CNC or IoT integrations for smart systems
- Safety features: essential for maintaining workplace compliance
Proactive consultation with manufacturers for custom tool design and die setup ensures that your chosen press meets both performance and quality requirements.
Routine maintenance ensures the long-term reliability of any 40 ton punch press:
- Daily inspection for leaks or misalignment
- Weekly lubrication of moving joints
- Monthly inspection of ram and die accuracy
- Annual calibration and safety system checks
Adhering to a preventive maintenance schedule minimizes unexpected failures, extending equipment life and optimizing production output.
A 40 ton punch press stands as one of the most practical and high-performing assets in metalworking. Offering a combination of strength, adaptability, efficiency, and precision, it supports production across diverse sectors — from automotive to aerospace to consumer goods. The machine's compatibility with automation and servo systems further ensures future-proof manufacturing, capable of adapting to smart factory ecosystems.
For manufacturers aiming to increase productivity while maintaining superior quality, investing in a 40 ton punch press represents a decisive step toward sustained growth and innovation in the industrial landscape.
It can process steel, aluminum, brass, copper, and stainless steel sheets ranging from lightweight gauge materials to plate-type structures, depending on the tooling setup.
Yes, its adaptability and CNC technology make it suitable for both prototype fabrication and high-volume manufacturing, ensuring flexibility across applications.
Modern presses are equipped with emergency brakes, overload protection, photoelectric barriers, and CNC-controlled safety mechanisms to prevent accidents.
Integrating automatic feeding systems, servo controls, and digital die management can drastically boost productivity while maintaining precision.
Industries such as automotive, aerospace, electronics, appliance manufacturing, and metal furniture fabrication see the most benefit due to their reliance on consistent metal forming and punching.
