A 40-ton punch press is one of the most versatile tools in modern metal fabrication. Used across industries from automotive to electronics, it offers the perfect balance of power, precision, and productivity. However, finding a reliable manufacturer requires knowledge of machine specifications, application needs, and quality certifications. This article details the top manufacturers of 40-ton punch presses, their key strengths, and technical features, helping professionals make informed purchasing decisions.
A 40-ton punch press is designed to exert 40 tons of compressive force, enabling the punching, cutting, or forming of metal sheets with precision. The "ton" capacity refers to the maximum load it can handle before deforming the workpiece.
- Sheet metal stamping for industrial components
- Electrical enclosure manufacturing
- Automotive bracket and mount fabrication
- HVAC equipment frame production
- Light construction hardware creation
Whether hydraulic or mechanical, 40-ton presses bridge light-duty flexibility and industrial-level productivity.
Modern 40-ton punch presses prioritize precision, durability, and operator safety. Typical technical specifications include:
| Specification | Range/Details |
|---|---|
| Rated capacity | 400 kN (40 tons) |
| Stroke length | 50–100 mm |
| Table size | 640 mm × 420 mm |
| Adjustable shut height | 350 mm |
| Motor Power | 4 kW |
| Frame type | C-frame or straight-side |
| Control system | Manual, pneumatic, or CNC-integrated |
| Stroke per minute | 50–120 strokes (depending on design) |
Some advanced models feature automatic lubrication systems, laser safety sensors, and programmable digital interfaces for precise control of stroke and pressure.
A punch press operates through a simple yet powerful mechanism:
1. Material setup: The workpiece is aligned on the die set.
2. Ram motion: The upper die is driven downward by mechanical or hydraulic force.
3. Punching action: The punch penetrates the material, forming or cutting as required.
4. Return stroke: The machine resets for the next operation.
Hydraulic models maintain consistent pressure throughout the cycle, while mechanical types favor faster strokes per minute for repetitive parts.

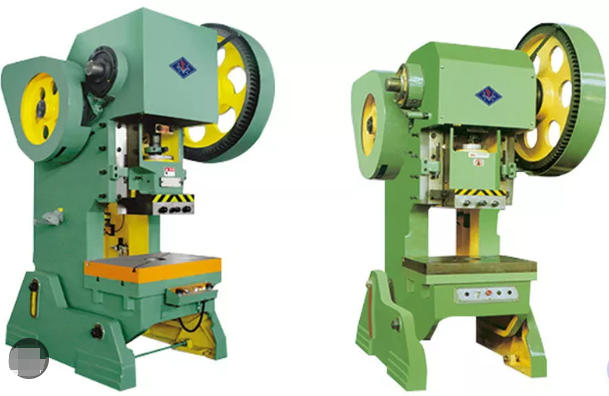

HARSLE's J23-40T mechanical power press is a hallmark of precision and reliability. With a 40-ton capacity and a 100 mm stroke length, it ensures consistent output in small to medium-scale sheet metal operations. Features include a forged steel gear setup, automatic lubrication, and pneumatic clutch system. The brand also supports global after-sales service and 3-year warranties, making it a trusted name for exporters and fabricators.
Since 1962, SEYI has developed robust stamping machinery known for its balance between quality and cost. Their servo-driven mechanical presses allow variable stroke and programmable speed control. SEYI's 40-ton models also comply with CE and ISO standards, making them popular across Europe and Southeast Asia.
Schuler integrates engineering precision with sustainability. Its servo hydraulic series combines energy-efficient drives with consistent force control. The 40-ton edition is compact yet capable of handling heavy-duty tooling operations. Schuler's reputation for innovation makes it a premium choice for high-tech manufacturing sectors.
Based in Minnesota, Edwards designs hydraulic shop presses known for versatility and reliability. Their 40-ton version includes an open-frame design, flexible tooling options, and ergonomic control mechanisms. These presses are widely used in repair shops, fabrication facilities, and ironworking applications in the U.S.
Founded in 1937, JIER delivers high-speed stamping presses for industrial automation. Its 40-ton punch press offers quick-die-change systems and proportional hydraulic control. These machines excel in automotive and appliance parts production, where accuracy and efficiency are paramount.
A pioneer in smart sheet metal processing, PRIMA POWER's servo-electric 40-ton punching units are known for energy efficiency and minimal vibration. They feature integrated CAD/CAM software and intelligent error detection systems, ideal for modern smart factories.
With over half a century of experience, Stamtec's mechanical presses achieve industry-leading uptime. Their 40-ton OBI (open back inclinable) presses are preferred for medium-volume production, offering simple setup and outstanding repeatability.
Scotchman's hydraulic and ironworker lines provide American-built durability. Their 40-ton presses are equipped with foot control safety features, robust welded frames, and a long operational lifespan suited for multipurpose fabrication environments.
Xuduan specializes in heavy-duty metal forming machinery. The 40-ton hydraulic series offers closed-loop control and real-time feedback monitoring systems. Known for their integration with automated production lines, Xuduan presses combine Chinese scale manufacturing with European technology standards.
Toledo manufactures automated press controls and tonnage monitors, paired with mid-range presses between 20–100 tons. Their 40-ton press is ideal for high-speed electronic and precision component manufacturing due to its fine-tuned control system and compact frame design.
The HARSLE J23-40T exemplifies the balance between quality, safety, and cost-efficiency.
- Forged steel gears: Enhance transmission strength and longevity.
- Automatic lubrication: Reduces friction and extends mechanical life.
- Adjustable slide stroke: Supports variable operation depths for different materials.
- Integrated lighting: Improves visibility during manual operations.
- Dynamic brake system: Ensures immediate stops for safety.
| Attribute | Specification |
|---|---|
| Stroke per minute | 50 |
| Motor (Power) | 4.0 kW |
| Weight | 2400 kg |
| Table dimensions | 640 × 420 mm |
| Frame design | Cast steel inclinable (J23 type) |
| Power supply | 3-phase, customizable voltage |
This configuration delivers a high return on investment for workshops focusing on low to mid-volume production.
When selecting a 40-ton punch press, consider the following aspects:
1. Type of Press – Choose between mechanical (speed-oriented) and hydraulic (precision-oriented) based on production type.
2. Clutch System – Opt for pneumatic or wet clutches to ensure smooth engagement and minimal wear.
3. Frame Design – C-frames are versatile; straight-side designs are ideal for heavy duty and high-tolerance operations.
4. Automation Compatibility – For large-scale operations, CNC or robotic integration increases efficiency.
5. Maintenance and Support – Ensure the manufacturer provides accessible technical assistance and spare parts globally.
A 40-ton punch press is crucial in:
- Automotive components manufacturing for producing brackets, seat frames, and clips.
- Electrical enclosures where fine-quality punching and tapping are necessary.
- Metal furniture fabrication for riveting holes in panels.
- Aerospace auxiliary parts, demanding lightweight and precision punching.

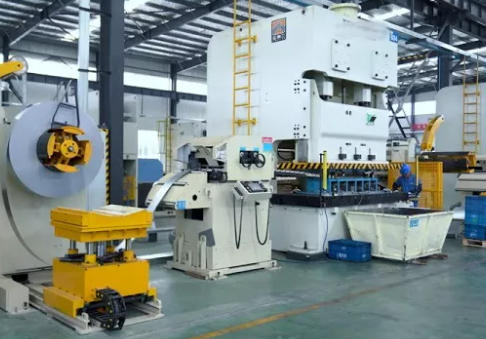

Factories often integrate these presses into automated feeding systems for uninterrupted production.
Technological enhancements have transformed punch presses into advanced manufacturing hubs:
- Servo-electric drives: Enable precise speed modulation for complex shapes.
- IoT integration: Allows remote monitoring and predictive maintenance.
- Quick-die-change systems: Minimize downtime between part runs.
- Safety automation: Infrared scanners prevent accidental hand injuries.
- Noise reduction technology: Improves workplace ergonomics.
With these advancements, manufacturers like PRIMA POWER and HARSLE drive the industry toward fully intelligent metal forming factories.
The global sheet metal machine market is projected to grow steadily, driven by increased demand for electric vehicles, renewable energy components, and smart infrastructure projects. The 40-ton punch press segment remains popular due to its flexible tonnage range, relatively low maintenance cost, and adaptability to different tooling.
Emerging Asian suppliers now match or exceed Western quality benchmarks, offering competitive pricing and international certification, attracting global buyers.
The 40-ton punch press is a cornerstone of efficient sheet metal fabrication. From HARSLE's precision manufacturing to Schuler's servo-driven excellence, these machines combine speed, strength, and safety. Choosing between mechanical and hydraulic models depends on your production requirements, budget, and automation preferences.
For high-throughput industries, servo and CNC-integrated systems deliver long-term reliability and ROI. For smaller workshops, traditional mechanical designs remain cost-effective and easy to maintain. Ultimately, the most trusted brands — HARSLE, SEYI, Stamtec, Edwards, and PRIMA POWER — continue to set the benchmark for durability, innovation, and performance.
A mechanical punch press uses a flywheel and clutch for quick repetitive strokes, while a hydraulic press relies on fluid-driven pistons for controlled, steady pressure.
Routine lubrication every 500 hours and a full inspection or servicing every 12 months keeps the press in optimal condition.
Automotive, HVAC, metal furniture, and electrical component manufacturers commonly use 40-ton systems for their flexibility and moderate capacity.
Yes. Most modern presses can handle stainless steel up to 5–6 mm thick and aluminum sheets up to 8 mm, depending on die design.
While not mandatory, CNC and servo options significantly reduce scrap rates, improve consistency, and cut setup times even for small-scale manufacturers.
