In modern industrial production, efficiency and precision are at the heart of competitiveness. Manufacturers around the world are constantly upgrading their machinery to meet increasing demands for speed, consistency, and quality. Among the many tools used in the metal fabrication industry, the 40 Ton Punch Press stands out as one of the most reliable and cost-effective solutions for medium- to large-scale metal forming operations.
This heavy-duty yet versatile machine delivers a perfect balance between power and productivity. Whether used for punching holes, forming shapes, embossing, or blanking, the 40 Ton Punch Press enhances throughput rates, sharpens dimensional accuracy, and supports a wide range of industrial manufacturing tasks.

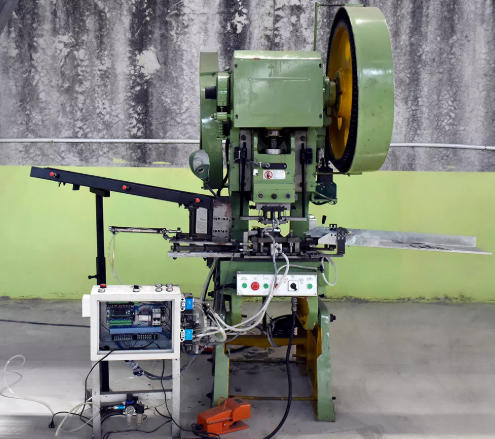

The 40 Ton Punch Press is a robust metal-forming machine capable of exerting up to 40 tons of force to perform sheet-metal operations with remarkable consistency. It bridges the gap between small manual presses and heavy industrial punch presses, offering an efficient solution for both high-volume production and custom fabrication.
In industries where production targets are tight and product dimensions are critical, such as automotive parts, electronics components, and metal enclosures, the 40 Ton Punch Press has become indispensable. It enables manufacturers to maintain high standards while reducing human labor and material waste.
At its core, a punch press operates through a powerful punching mechanism that uses a punch tool and die to shape metal sheets. The metal blank is placed between the two components, and with a precise downward stroke, a section of the material is cut out or compressed into a desired form.
The 40-ton force capacity ensures that even thicker materials like steel plates or heavy aluminum sheets can be worked efficiently without distortion or misalignment.
This process can be controlled manually or automated through CNC systems, which improve speed, accuracy, and repeatability. Advanced models integrate servo motors that replace traditional flywheels, providing better control over stroke speed, depth, and positioning.

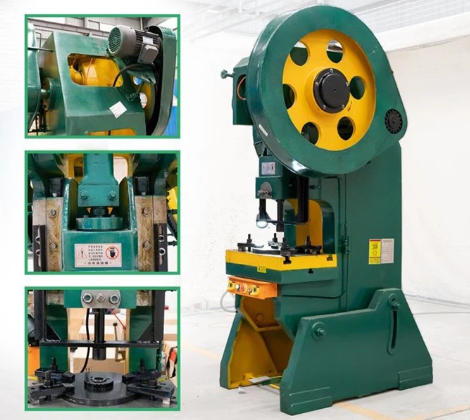

A standard 40 Ton Punch Press consists of several key components that contribute to its functionality and reliability:
- Frame: The structural backbone, often built from cast iron or welded steel, designed to absorb vibration and maintain stability during high-load operations.
- Ram (Slide): The moving component that carries the punch tool and transmits force to the die.
- Clutch and Brake System: Responsible for engaging or stopping motion instantly, ensuring operational safety.
- Bolster Plate: The work surface that supports the die assembly and workpiece.
- Power Source: Mechanical energy from a motor, hydraulic pump, or servo drive system.
- Control Panel: Provides human-machine interface (HMI) for adjusting speed, stroke, and automation settings.
This robust design ensures maximum uptime and consistent accuracy over millions of strokes.
A 40 Ton Punch Press delivers hundreds of strokes per minute with extreme precision. Modern servo-driven models can adjust stroke length dynamically, optimizing each operation for speed and material type.
CNC control systems maintain tolerance levels within microns, which is critical for parts like electrical terminal plates or automotive components. Precision tooling minimizes deformation and enhances repeatability.

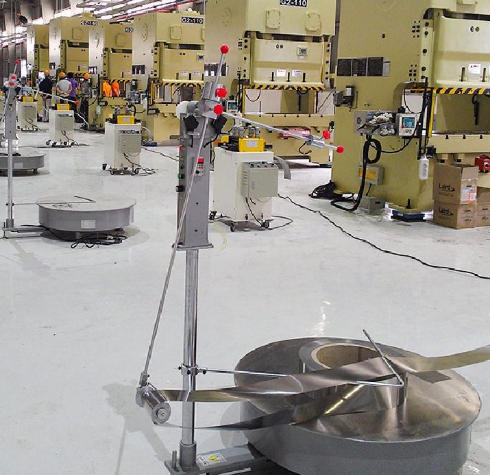

Automation and continuous feed mechanisms transform manufacturing efficiency. A single operator can manage multiple machines simultaneously, translating into more parts per hour and higher profit margins.
Precise punching ensures optimal material utilization and lower rejection rates. Advanced nesting software can also plan the layout of punch paths to minimize scrap.
Today's 40 Ton Punch Press machines can handle various operations such as embossing, coining, forming, and perforating—all within the same setup. This flexibility makes them suitable for multiple industries.
Because of its balance between power and efficiency, a 40 Ton Punch Press is widely used across different production fields:
- Automotive Manufacturing: Forming brackets, gears, sensor plates, and body reinforcements.
- Home Appliances: Producing washing machine drums, refrigerator plates, and microwave enclosures.
- Electrical Equipment: Creating switch plates, contact terminals, and transformer components.
- Construction Hardware: Making fasteners, brackets, door hinges, and anchor plates.
- Aerospace and Electronics: For lightweight aluminum sheet components that require strict tolerances.
Each of these industries benefits from the machine's repeatable accuracy and high-speed output, which are essential for meeting large-scale production demands.
In recent years, manufacturers have increasingly turned to smart automation systems that enhance punch press operations through advanced connectivity.
- CNC Programming: Allows operators to store and recall multiple punch patterns, reducing changeover time.
- Automatic Tool Changers: Maximizes machine uptime by instantly switching between tools.
- IoT Data Monitoring: Collects operational data, enabling predictive maintenance and efficiency tracking.
- Robot Arm Integration: Automatically loads and unloads raw materials, reducing manual handling.
As a result, a 40 Ton Punch Press can operate nearly autonomously in modern smart factories. This integration not only improves throughput but also minimizes human error, ensuring consistent quality across every production batch.
While productivity is paramount, safety remains a critical aspect of punch press operations. A 40 Ton Punch Press incorporates several advanced safety mechanisms:
- Two-Hand Control System: Requires the operator to use both hands, preventing accidental engagement.
- Light Curtains and Safety Sensors: Halt the machine instantly when intrusion is detected.
- Overload Protection: Automatically stops the press when the applied force exceeds the safe limit.
- Noise and Vibration Reduction: Modern designs include damping systems for better workplace ergonomics.
Operators must receive technical training and follow strict operating procedures. Proper setup and die alignment are essential to ensure safe and efficient use.
When analyzing the cost-benefit ratio, the 40 Ton Punch Press provides a strong return on investment for manufacturers aiming to scale production.
Key savings areas include:
- Reduced Labor Dependency: With automation features, fewer operators are needed per machine.
- Lower Energy Consumption: Energy-efficient servo systems reduce power costs by 20–30%.
- Minimal Downtime: Remote diagnostics and preventive maintenance help avoid disruptions.
- High Material Efficiency: Optimized punch layouts translate to less waste and more usable material.
Even in small and medium enterprises, upgrading to a 40 Ton Punch Press has been shown to improve profitability within the first year of operation.
Keeping a 40 Ton Punch Press in peak condition requires disciplined maintenance routines.
Daily Checks
- Ensure adequate lubrication on sliding surfaces and bearings.
- Clean punch and die sets after each shift.
- Remove metal shavings and residues from the work area.
Weekly and Monthly Checks
- Inspect mechanical connections and adjust alignment.
- Test brake performance and safety controls.
- Replace worn seals or hoses in hydraulic systems.
- Review stroke accuracy using calibration gauges.
Manufacturers should maintain detailed operation logs and plan predictive maintenance intervals using IoT-based monitoring to extend the machine's life and maintain consistent quality output.
Not all presses are created equal, and selecting the correct one requires a careful review of operational requirements.
Considerations include:
- Type of Materials Used: Thicker metals require slower, more consistent force delivery—ideal for hydraulic presses.
- Production Volume: For repetitive mass production, a mechanical or servo press offers faster cycles.
- Tool Compatibility: Verify that your existing tooling system matches the new press specifications.
- Automation Compatibility: Assess CNC or robotic integration potential based on your facility's infrastructure.
- After-Sales Support: Choose a supplier with a reliable service network and global parts availability.
A well-selected 40 Ton Punch Press transforms manufacturing productivity and positions your facility for long-term competitiveness.
The ongoing shift towards Industry 4.0 continues to redefine the capabilities of punch presses.
Emerging technologies include:
- AI-Based Process Optimization: Artificial intelligence analyzes production data to refine operations and predict tool wear.
- Digital Twin Technology: Virtual simulations allow manufacturers to test new punch designs before physical production.
- Servo-Hybrid Systems: Combine hydraulic consistency with mechanical speed for maximum flexibility.
- Energy Recovery Units: Convert kinetic energy from deceleration into reusable power for the next cycle.
- Remote Diagnostics: Service engineers can access machine performance data in real-time, reducing repair times.
Manufacturers implementing these innovations benefit from smarter, cleaner, and more efficient production processes.
The 40 Ton Punch Press continues to play a vital role in the advancement of industrial manufacturing. Its combination of force, speed, precision, and adaptability makes it the centerpiece of many production systems.
By enhancing production capacity, reducing material waste, and improving quality consistency, it provides manufacturers with a competitive advantage in today's demanding market. When integrated with automation and data-driven technologies, a 40 Ton Punch Press not only increases throughput but also contributes to sustainable, smart manufacturing practices.
Whether you're running a high-volume automotive parts line or a precision electronics workshop, the 40 Ton Punch Press is the key to achieving better productivity and profitability.
It can punch and form materials such as carbon steel, stainless steel, copper, brass, and aluminum sheets with thicknesses up to 6–8 mm, depending on die quality and press type.
Integrate automatic feeders, use CNC control systems, and schedule preventive maintenance. These steps help minimize downtime and boost production speed.
A high-quality press can last over 15 years with proper lubrication, maintenance, and tool care. Servo and hydraulic variants typically have longer service lives due to reduced mechanical wear.
Automation improves part consistency, ensures faster cycle times, and reduces worker fatigue. With robotic loading and real-time sensors, the press can operate nearly continuously.
Yes. Newer servo and hydraulic models are energy-efficient and generate less noise and vibration, aligning with environmental regulations and improving workplace safety.
