Operating a 40-ton punch press demands technical precision, physical discipline, and a deep understanding of industrial safety. These machines are designed to deliver extreme force for punching, forming, and shaping metal components efficiently. However, even minor negligence during operation or maintenance can lead to catastrophic accidents. This comprehensive guide integrates detailed safety, inspection, and maintenance best practices to help operators and employers minimize risks and maximize performance in metal fabrication environments.
A 40-ton punch press uses mechanical, pneumatic, or hydraulic principles to apply massive force on metal sheets. It's a central tool in stamping, automotive, and manufacturing operations.
- Ram or Slide: The moving part applying the pressing force.
- Bolster or Bed: The stable base supporting the workpiece.
- Clutch and Brake: Control the motion of the ram.
- Flywheel (in mechanical types): Stores kinetic energy for punching.
- Electric or Hydraulic System: Supplies the required motion and power.
- Die Set: Shapes or cuts the work material.
- Control Panel: Enables manual or automated control.
Each component has critical safety and maintenance requirements that must be respected to ensure both operator and equipment longevity.
The OSHA Standard 29 CFR 1910.217 governs safety for mechanical power presses. Compliance ensures both legal and operational safety.
- Two-hand Control Systems – Operators must press both buttons simultaneously to activate the press.
- Point-of-Operation Guarding – Prevents accidental contact with moving dies.
- Regular Inspections – All mechanical, hydraulic, and electrical parts must pass inspection before operation.
- Lockout/Tagout (LOTO) – Required during servicing to prevent accidental activation.
- Maintenance Recordkeeping – Document all checks and safeguards systematically.
Following these measures not only preserves workplace safety but also reduces insurance liabilities and machine downtime.
Operators must wear appropriate personal protective equipment (PPE) during all punch press operations.
- Safety goggles or a face shield prevent eye injuries from flying shards.
- Gloves made with cut-resistant materials safeguard hands from sharp metal edges.
- Hearing protection is crucial for operating in high-decibel press environments.
- Close-fitted work clothing and non-slip, steel-toed boots eliminate entanglement and impact hazards.
Loose apparel or jewelry should never be worn while operating machinery, as entanglement in moving parts is a leading cause of industrial injuries.
Machine guarding acts as the first line of defense. Guards isolate the operator from direct exposure to moving parts.
- Fixed Guards: Permanently attached covers blocking dangerous zones.
- Interlocked Guards: Automatically deactivate the press if opened.
- Light Curtains: Sensor arrays that halt press action when interrupted.
- Presence-Sensing Devices: Detect movement and instantly stop the cycle.
- Pullback and Restraint Systems: Physically remove the operator's hands from danger.
All safety guards should comply with OSHA standards and undergo functionality testing before each shift begins.
Prior to activating the press:
1. Examine all safety devices.
2. Confirm clutch, brake, and interlock integrity.
3. Assess air and hydraulic pressures.
4. Inspect for electrical insulation damage.
5. Confirm that the die set is correctly aligned and tightly locked.
6. Remove all tools or loose materials from the workbench.
A clear, organized workspace prevents trip hazards and enhances operator concentration.
A small deviation in die alignment or improper fastening can cause costly breakdowns or material damage. Follow strict setup steps:
- Align punches and dies carefully.
- Tighten bolts evenly to prevent misalignment.
- Run an initial test cycle at low speed.
- Measure die clearance using precision gauges.
During setup, only authorized, trained personnel should operate the control panel to prevent uncoordinated actions.
Avoid overstressing the machine. Maintain recommended cycle times and load limits. Overloading accelerates component wear and shortens press lifespan.
Operators should never look away during press cycling. Random vibrations or unexpected pauses could signal potential mechanical failure.

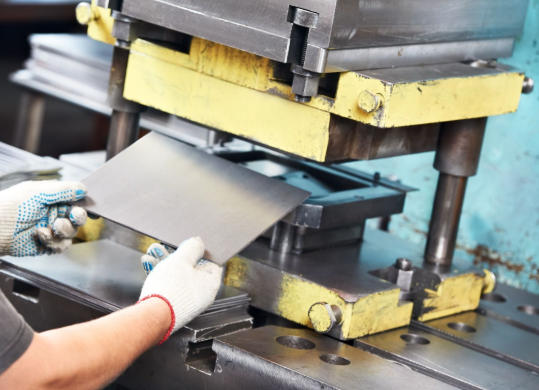

Manual feeding must always involve safety controls. Automatic feeders and mechanical parts handling are safer alternatives to hand feeding.
At the end of a shift or during breaks:
- Turn off the power source.
- Release built-up pressure or stored energy.
- Engage the emergency stop button if maintenance will be performed.
Improper shutdown can leave the press charged and hazardous even when idle.
Lockout/Tagout practices isolate power sources during maintenance or die change.
1. Shut down and isolate electrical and hydraulic systems.
2. Drain stored pneumatic pressure.
3. Attach lockout devices to energy sources.
4. Apply warning tags to prevent accidental start-up.
5. Verify zero-energy condition before beginning work.
Always ensure all workers recognize and honor LOTO tags. Neglecting this step is one of the most frequent causes of workplace injury.
To handle unexpected breakdowns or injuries:
- Mark emergency stop locations clearly.
- Train all staff in machine shutdown and basic first aid.
- Maintain ready access to fire extinguishers and spill kits.
- Establish a line of communication for emergencies, ensuring backup communications during outages.
Regular drills keep reaction time sharp, helping operators stay composed and effective during real dangers.
A successful punch press operation depends on collaboration between employers and workers. Management must actively promote:
- Routine refresher courses.
- Reward systems for zero-incident records.
- Open reporting of safety concerns.
- Transparent incident reviews and corrective action meetings.
Creating a culture of accountability ensures workers view safety not as regulation compliance, but as professional responsibility.
A well-maintained 40-ton punch press operates with minimal vibration, accurate stroke alignment, and consistent product quality. Neglecting maintenance results in more frequent malfunctions and hazards.
- Clean external surfaces and die sets.
- Lubricate the ram, gears, and guideposts.
- Remove metal debris and oil buildup from the press bed.
- Check fluid levels and leaks.
- Inspect press alignment and fasteners.
- Examine all safety interlocks.
- Calibrate electrical sensors and limit switches.
- Evaluate clutch operation and brake balance.
- Inspect hydraulic or pneumatic lines for cracks.
- Test motor insulation and grounding.
- Replace worn seals and bearings.
Routine preventive maintenance reduces downtime, prevents defects, and prolongs machine life.
Regular servicing goes beyond cleaning and lubrication—it ensures deeper system diagnostics and predictive maintenance.
- Use recommended fluid grades and replace them per schedule.
- Inspect for leaks in seals and hoses.
- Track hydraulic temperature to avoid overheating.
- Replace filters periodically to prevent contamination.
Vibrations often loosen fasteners. Check bolts, joints, and couplings frequently to prevent gradual machine misalignment.
- Clean control panels regularly.
- Replace damaged cables immediately.
- Examine relays and PLC modules for overheating or loose wiring.
- Excessive Noise or Vibration: Tighten fasteners, lubricate bearings, or realign the ram.
- Misaligned Punch: Inspect the die seat and adjust ram alignment.
- Irregular Cuts: Sharpen or replace dull tooling.
- Hydraulic Pressure Drops: Check fluid levels or repair leaks.
- Electrical Malfunction: Test switches and fuses.
Consistency in diagnosing and resolving such signals prevents larger failures later.
Modern presses now integrate sensors that monitor vibrations, temperature, oil quality, and electrical loads. Predictive analytics helps maintenance teams pinpoint upcoming failures before they occur.
Key technologies include:
- Vibration Analysis – Detects bearing or shaft misalignment.
- Thermal Imaging – Identifies overheating zones.
- Oil Sampling – Reveals contamination or wear particles.
- Load Sensors – Track working stress distribution.
These tools allow manufacturers to schedule maintenance proactively rather than reactively, improving productivity and workplace safety.
Metalworking and hydraulic systems produce oil residues, metal shavings, and chemical contaminants that must be disposed of properly:
- Store waste oil in sealed containers.
- Recycle metal scrap separately from solid waste.
- Use oil-absorbent mats to prevent floor slips.
- Dispose of filters and fluids via certified waste handlers.
Environmental safety improves compliance, reduces fines, and sustains eco-friendly manufacturing operations.
Automation technologies further reduce human exposure to pressing zones:
- Robotic feed arms handle materials precisely.
- Controlled ejection systems remove finished pieces automatically.
- Programmable logic controllers (PLCs) maintain consistent cycles with minimal operator contact.
Automation should not replace operator vigilance. Human oversight is required to verify calibration, ensure sensor alignment, and intervene during irregularities.
Document every safety procedure and maintenance cycle thoroughly. Logs verify compliance, track machine performance, and simplify audits. Maintain records of:
- Safety inspections.
- Training sessions.
- Maintenance schedules.
- Incident and near-miss reports.
- Guarding device certifications.
Auditors and internal safety committees rely on these documents to ensure ongoing adherence to regulatory standards.
Operating a 40-ton punch press safely is a complex discipline that merges technical precision, operator awareness, and institutional responsibility. Eliminating shortcuts, embracing regular maintenance, and maintaining thorough safety training programs form the foundation of safe press operation. Modern technology—together with an unrelenting commitment to personal discipline—ensures that both workers and equipment perform optimally without compromise. The goal isn't just compliance—it's cultivating a zero-incident, high-efficiency production culture.
Operator distraction, lack of guarding, and improper setup are top causes. Strict adherence to OSHA safety standards and proper supervision drastically reduces risks.
Daily cleaning, weekly inspections, and quarterly detailed maintenance are essential. Hydraulic system fluids should be replaced per manufacturer recommendations to prevent pressure failures.
Automated or mechanical feeding systems minimize hand exposure. If manual feeding is necessary, always use safety tools and make sure light curtains remain active.
Never. Removing guards violates OSHA law and endangers lives. Guards must always remain installed and functional before any punching operation begins.
Combine written training with visual aids, videos, and supervised practice. Include emergency simulations and measure operator competence regularly.
