Maintaining and cleaning a benchtop punch press is essential for ensuring its longevity, precision, and safe operation. Whether you use your benchtop punch press for metalworking, crafting, or small-scale manufacturing, regular maintenance prevents costly downtime, preserves the quality of your work, and extends the machine's service life. This comprehensive guide will walk you through the best practices for cleaning, lubricating, inspecting, troubleshooting, and safely operating your benchtop punch press. Throughout the article, we will also provide practical tips, visual aids, and video references to help you master the maintenance process.

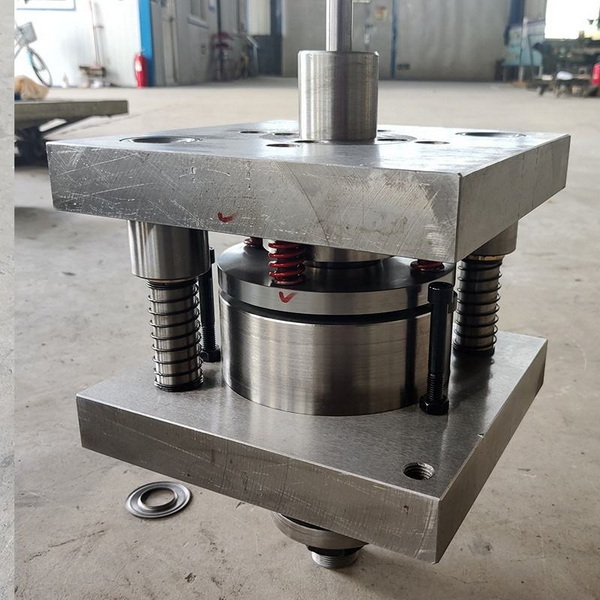

Before diving into maintenance, it's important to understand the key components of your benchtop punch press:
- Ram (or Slide): The moving part that applies force to punch the material.

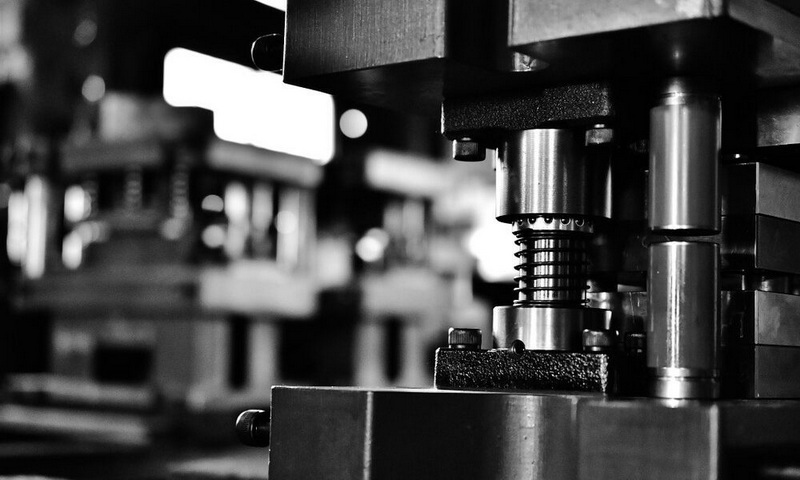

- Die and Punch: The tooling that shapes or cuts the material.
- Guideways: Rails that guide the ram's movement.
- Clutch and Brake System: Controls the ram's motion.
- Hydraulic or Mechanical Drive: Powers the punch press.
- Worktable: Supports the material being punched.
Knowing these parts helps you focus your maintenance efforts effectively.
Start each day by wiping down the press surfaces with a soft cloth or brush to remove dust, metal shavings, and debris. Avoid using compressed air, as it can blow debris into sensitive areas and cause damage or contamination. Pay special attention to the die and punch area where residue tends to accumulate.
Check the die and punch for any signs of wear, cracks, or deformation. Worn tooling can cause poor-quality punches and damage the machine. Replace or sharpen punches and dies as needed to maintain precision.
Apply lubricant to the ram, guideways, and punch holders to reduce friction and wear. Use manufacturer-recommended lubricants, typically light machine oil or grease suitable for your press type. Proper lubrication ensures smooth operation and prevents overheating.
For hydraulic benchtop punch presses, verify that hydraulic fluid is at the correct level and is clean. Low or contaminated fluid can impair performance and damage components.
- Remove and Clean Tooling: Dismantle punches and dies carefully. Use a soft brush and mild detergent solution or isopropyl alcohol to clean tooling surfaces thoroughly. Avoid abrasive materials that can scratch or damage the tooling.
- Check Clutch and Brake Pins: Inspect these parts for wear and apply high-temperature grease if necessary to ensure proper engagement and prevent slippage.
- Inspect Guideways and Ram: Clean guide rails and ram surfaces, removing any buildup of dirt or grease. Check for smooth movement without binding.
- Check for Oil or Air Leaks: Inspect hydraulic lines and pneumatic components for leaks or damage.
- Anti-Rust Protection: Apply anti-rust oil or paint to exposed metal surfaces like the worktable, guide rails, and tooling to prevent corrosion.
- Alignment Checks: Use precision tools to verify that the die and punch are properly aligned. Misalignment causes uneven wear and poor punch quality.
- Hydraulic System Maintenance: Change hydraulic oil if contaminated and replace filters as recommended by the manufacturer.
Turn off and unplug the machine to ensure safety. Remove all removable parts such as punches, dies, and guards.
Use a soft brush or compressed air (with caution) to clear metal shavings, dust, and residue from the machine and tooling.
Soak punches and dies in a mild detergent or 95% ethanol solution for 15 minutes to an hour to loosen stubborn residue. Gently scrub with a soft brush, especially in hard-to-reach areas.
Dry all parts thoroughly with a lint-free cloth or air dry to prevent rust. Inspect for any damage or wear that may require repair or replacement.
Apply appropriate lubricants to moving parts, including the ram, guideways, clutch pins, and bearings. Reassemble the machine carefully, ensuring all parts are securely in place.
Run a test cycle to verify smooth operation and proper punch quality.
- Use lubricants recommended by your press manufacturer.
- Apply grease or oil to clutch and brake pins to avoid sticking.
- Lubricate guide rails and ram regularly to reduce friction.
- Avoid over-lubrication, which can attract dirt and cause buildup.
- For hydraulic systems, use clean, manufacturer-approved hydraulic fluid and change it periodically.
| Problem | Possible Cause | Solution |
|---|---|---|
| Ram not moving smoothly | Lack of lubrication or debris | Clean and lubricate ram and guideways |
| Poor punch quality | Worn or damaged punches/dies | Inspect and replace or sharpen tooling |
| Clutch not engaging | Worn clutch pins or lack of grease | Grease pins or replace clutch components |
| Hydraulic pressure low | Low fluid or leaks | Check fluid level, inspect and repair leaks |
| Excessive noise or vibration | Loose bolts or worn bearings | Tighten bolts, replace bearings if needed |
- Always disconnect power before maintenance.
- Wear protective gloves and eye protection.
- Never reach into the die area while the machine is powered.
- Use safety brackets or guards when working with long materials.
- Follow manufacturer's safety guidelines and operating procedures.
Visual aids and videos can significantly improve your understanding of benchtop punch press maintenance. Here are some ways to incorporate these resources:
- Detailed Photos: Show close-ups of the ram, die, punch, clutch pins, and guideways to help identify parts.
- Step-by-Step Cleaning Images: Visual guides for disassembling, cleaning, lubricating, and reassembling the press.
- Lubrication Demonstrations: Videos demonstrating proper application of grease and oil to critical components.
- Troubleshooting Clips: Visual examples of common issues and their fixes, such as adjusting clutch pins or replacing worn tooling.
Including these resources in your maintenance routine can reduce errors and improve efficiency.
Precision is key to the performance of a benchtop punch press. Regularly calibrate the machine to ensure the ram and die are perfectly aligned. Use dial indicators or laser alignment tools to check for any deviation. Misalignment can cause uneven wear on tooling and poor-quality punches, so addressing this promptly is crucial.
Proper storage of punches and dies extends their lifespan. Store tooling in clean, dry containers or racks to prevent rust and damage. Handle tooling carefully to avoid dropping or nicking cutting edges. Label tooling sets clearly to avoid confusion and ensure correct installation.
Keep your benchtop punch press in a clean, dry environment to minimize exposure to dust, moisture, and corrosive substances. Temperature fluctuations can affect hydraulic fluid viscosity and machine components, so maintain a stable workspace temperature for optimal performance.
Even with diligent in-house maintenance, schedule professional servicing periodically. Technicians can perform detailed inspections, replace worn internal parts, and update hydraulic systems, ensuring your benchtop punch press remains in peak condition.
Proper maintenance and cleaning of your benchtop punch press are vital to ensure its efficient, safe, and long-lasting operation. By following a regular maintenance schedule that includes daily cleaning, weekly inspections, lubrication, and periodic detailed servicing, you can prevent common issues such as wear, misalignment, and mechanical failures. Always use the correct lubricants and cleaning agents, inspect tooling regularly, and adhere to safety protocols. Incorporating these practices will enhance the quality of your punched products, reduce downtime, and extend the life of your benchtop punch press.
You should perform basic cleaning daily by wiping surfaces and removing debris. A thorough cleaning, including disassembly and detailed tooling cleaning, is recommended at least once a month.
Use light machine oil or grease recommended by your press manufacturer. Clutch and brake pins often require high-temperature grease to ensure smooth engagement.
Replace punches and dies when you notice wear such as cracks, deformation, dull edges, or when punch quality deteriorates. Regular inspection helps catch these signs early.
Compressed air can be used carefully to remove loose debris but avoid blowing dust into sensitive areas or crevices where it can accumulate and cause problems.
Always disconnect power before maintenance, wear protective gear, never reach into the die area while powered, and use safety guards or brackets when handling materials.
