Selecting the right punch press for your manufacturing operation can significantly affect your production efficiency, cost, and quality. Two of the most common options are 40-ton punch presses and 20-ton punch presses. While both machines perform similar functions—applying force to shape, cut, or form metal sheets—the differences in their capabilities, applications, and operating costs can lead to dramatically different results depending on your needs.
This comprehensive guide compares the key specifications, applications, advantages, and limitations of 20-ton and 40-ton punch presses to help you make an informed purchasing decision.

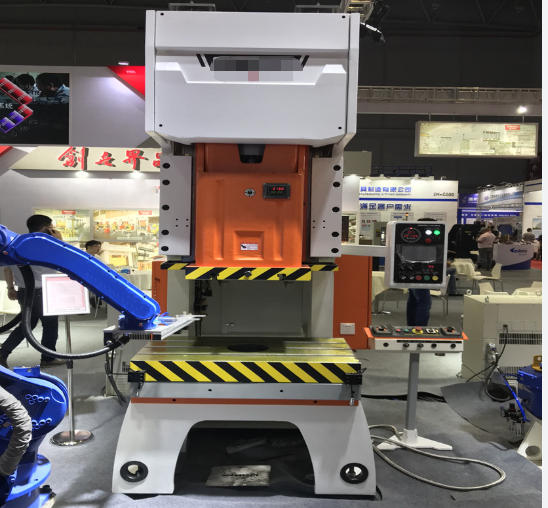

A punch press is a type of machine tool that uses a mechanical or hydraulic mechanism to apply pressure on a die, cutting, forming, or stamping materials—commonly metal or plastic sheets. It's widely used in manufacturing industries like automotive, construction hardware, electronics, and metal fabrication.
- Frame: Provides structural support and absorbs operating stress.
- Ram/Slide: Moves vertically to apply the punching force.
- Bed: Holds the die and workpiece securely.
- Flywheel/Clutch System: Stores and transfers mechanical energy.
- Control Panel: Ensures operational safety and precision.
“Tonnage” refers to the maximum force a press can exert. This is the key factor that determines the machine's ability to handle material thickness and hardness.
- A 20-ton punch press exerts up to 20 tons of pressure.
- A 40-ton punch press can exert double the force—40 tons.
Proper tonnage selection prevents damage to the tooling, reduces waste, and preserves part quality.
- 20-Ton Press: Ideal for light to medium-duty operations, such as punching thin steel sheets, aluminum, or soft metals.
- 40-Ton Press: Suitable for heavier-duty applications, including thicker steel, stainless steel, and structural parts.
The higher tonnage allows a 40-ton press to work on larger dies and tougher materials, improving flexibility for complex projects.
| Material | 20-Ton Press | 40-Ton Press |
|---|---|---|
| Aluminum Sheet | Up to 3 mm | Up to 6 mm |
| Mild Steel | Up to 2 mm | Up to 5 mm |
| Stainless Steel | Up to 1.5 mm | Up to 4 mm |
If you frequently process thicker materials, a 40-ton machine will serve better and produce longer-lasting dies.
- 20-Ton Press: Offers sufficient speed for small- to medium-scale production lines.
- 40-Ton Press: Performs better in high-volume manufacturing where greater force and faster cycles improve throughput.
Larger presses can support automated feeding systems and continuous operations for mass manufacturing.
- 20-Ton Press: Consumes less energy and has lower operational costs.
- 40-Ton Press: Requires more power and cooling, but modern models often include energy-efficient motors and controls.
If minimizing electricity costs is a priority, smaller presses may be preferable, especially when your workload doesn't require high tonnage.
Because of their greater force and frame rigidity, 40-ton presses are larger and heavier, requiring more floor space and stronger foundations.
| Aspect | 20-Ton Press | 40-Ton Press |
|---|---|---|
| Average Weight | 400–600 kg | 900–1500 kg |
| Footprint | Compact | Requires industrial floor setup |
| Mobility | Easier to relocate | Stationary installation |
For small workshops, space constraints may make a 20-ton press more practical.
Both types require periodic maintenance, such as lubrication, die inspection, and part replacement. However:
- 40-ton presses tend to have more robust construction designed for heavy workloads, offering a longer operational lifespan.
- 20-ton presses have simpler systems, reducing maintenance time and part replacement costs.
- Thin sheet metal parts
- Electrical casing production
- Decorative metalwork
- Component prototyping
- Small manufacturing shops
- Automotive parts (e.g., brackets, reinforcements)
- Industrial enclosures and chassis
- Hardware tool production
- HVAC components
- Medium-to-large manufacturing plants
Each machine fits distinct business situations: lighter equipment suits precision and smaller projects, while heavier presses excel in continuous production of durable parts.
The initial investment for a punch press depends on its power, automation level, and brand reputation.
| Factor | 20-Ton Punch Press | 40-Ton Punch Press |
|---|---|---|
| Purchase Cost | $4,000 – $9,000 | $8,000 – $20,000 |
| Operation Cost | Lower | Moderate to High |
| Maintenance | Simple | More complex |
| Lifespan | 8–10 years | 10–15 years |
Always evaluate long-term ROI: if your production needs will grow, a 40-ton press might save future upgrade costs.
Cycle speed dictates how many operations per minute (OPM) the press can perform.
- 20-ton presses: up to 60–120 OPM.
- 40-ton presses: around 40–100 OPM, depending on stroke and material resistance.
While smaller presses are faster, their lower power limits usage. For balanced performance, some manufacturers choose hybrid hydraulic-mechanical systems.
Both versions can offer high precision if well-maintained. However, automated 40-ton systems with servo control can deliver greater consistency in repetitive production.
Higher-tonnage presses generally produce more vibration, which can affect surrounding equipment. Vibration dampening bases or shock-absorbing mounts are recommended when installing 40-ton models.
Safety should never be compromised, regardless of tonnage.
Key safety features include:
- Dual control buttons to prevent accidental actuation.
- Emergency stop systems.
- Photoelectric guards.
- Overload protection systems.
Operators should also receive proper training on tooling changeovers, pressing angles, and material handling.
When deciding between a 20-ton and 40-ton punch press, consider:
1. Material Type and Thickness: Thicker or harder materials demand higher tonnage.
2. Production Volume: High-volume production benefits from faster, high-force presses.
3. Available Space: Smaller shops may prefer compact presses.
4. Budget and ROI: Factor both initial and operating costs.
5. Expansion Plans: Plan for future scalability.
Rule of Thumb: Always choose a press with 20–30% higher tonnage capacity than your immediate needs. This prevents premature wear and provides flexibility for future projects.
A metal fabrication company producing light brackets initially used a 20-ton mechanical press. As demand grew and thicker materials entered production, they upgraded to a 40-ton hydraulic model. The results included:
- 35% increase in production throughput.
- 22% reduction in tool wear.
- Improved part consistency.
Though energy consumption rose slightly, overall profitability and reliability improved.
Modern manufacturers must also factor in environmental performance:
- The 20-ton press uses less electricity, generating fewer CO₂ emissions.
- The 40-ton press, although more powerful, can be fitted with variable-frequency drives (VFD) and energy regeneration systems to offset consumption.
If your company prioritizes sustainability, evaluating press energy certifications and control technologies is critical.
Upgrade to a 40-ton system if:
- Your product line requires thicker sheet metals.
- Your existing 20-ton press frequently runs at maximum load.
- You need faster throughput with minimal downtime.
Upgrading early ensures better efficiency and prevents costly repairs from overloading a smaller press.
Choosing between a 40-ton and a 20-ton punch press depends on your material thickness, production volume, and future growth plans. A 20-ton press is perfect for light fabrication, low-cost operations, and workshops with limited space. Meanwhile, a 40-ton press suits medium-to-heavy industries that prioritize durability, speed, and precision for large-scale production.
When in doubt, evaluate both tonnage and economic efficiency—then invest in the equipment that best aligns with your strategic goals.
Tonnage depends on material thickness, type, and punch perimeter. Engineers usually calculate it using the formula: T=L×t×S is shear strength.
Yes, but only for thin sheets—typically up to 1.5 mm thick. For thicker stainless steel, a 40-ton press ensures better results and prevents equipment strain.

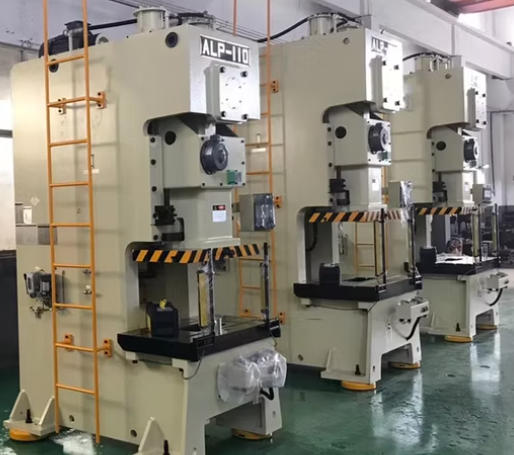

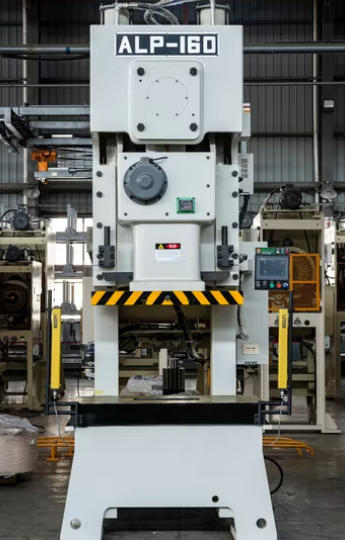

Hydraulic presses provide consistent tonnage through the stroke, ideal for deep forming. Mechanical presses offer faster cycle times—best for high-speed stamping of thin materials.
Regularly inspect oil levels, lubricate moving parts, calibrate ram alignment, and replace worn dies. Preventive maintenance extends machine longevity and precision.
If your operation focuses on small, precise parts, a 20-ton machine offers a faster payback. For diverse or heavy-duty production, the 40-ton version yields higher long-term ROI through versatility and durability.
