In today's fast-evolving industrial landscape, manufacturing efficiency is defined by automation, precision, and safety. Among the innovations transforming industrial production, uncoiler machines—sometimes referred to as decoilers—are revolutionizing raw material handling. Traditionally, coil processing began with manual loading or simple reel holders, which often resulted in material distortion, inconsistent tension, and operational hazards. The rise of uncoiler technology has changed that narrative entirely by automating and optimizing the coil unwinding process for industries such as automotive, metal fabrication, kitchenware, and construction.
This article expands on the mechanical principles, advantages, and economic implications of modern uncoiler machines compared to traditional methods. It also explores advanced features, smart integration, and industrial adaptability—providing a comprehensive understanding of which system delivers superior performance in modern manufacturing.

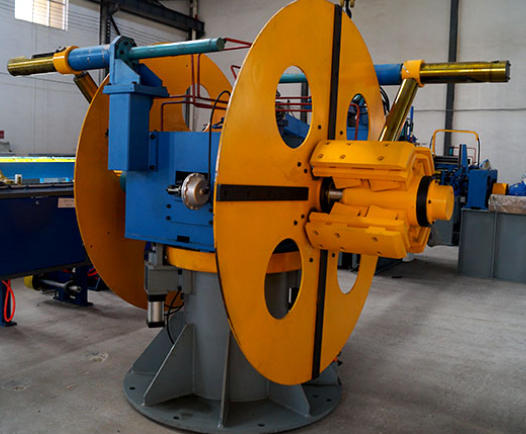

An uncoiler machine is an essential piece of coil-handling equipment positioned at the start of automated production lines. Its role is to support, hold, and unwind metal or composite coils while feeding materials into processes such as cutting, rolling, or stamping. With integrated sensors and automation, uncoilers maintain tension accuracy, prevent coil damage, and ensure smooth, consistent feeding.
1. Material Unwinding: The uncoiler rotates the coil and releases material in a controlled manner.
2. Tension Regulation: For optimum dimensional precision, dedicated tension control systems balance stretching and slack.
3. Automation Integration: Through digital controllers and servo drives, the uncoiler communicates seamlessly with downstream machines like straighteners or feeders.

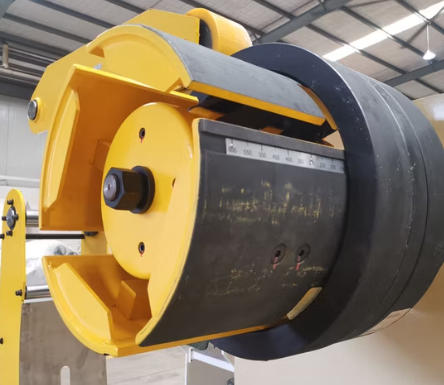

Modern uncoilers combine mechanical engineering and hydraulic precision. The operation begins when a coil is placed onto the mandrel—a sturdy shaft that locks and expands to hold the coil securely. Hydraulic or electric drives rotate the coil, and tension sensors regulate speed and rotation.
Advanced Steps in Operation:
1. Coil Loading: A hydraulic cart or manual lift places the coil on the mandrel.
2. Expansion and Securing: Hydraulic arms expand to fit tightly into the coil's core.
3. Drive and Rotation: A motor-driven or hydraulic drive initiates coil rotation.
4. Tension Adjustment: Braking systems and sensors manage precise unwinding pressure.
5. Feeding Output: The strip feeds into attached machinery or storage loops for continuous processing.
Integrated models often include straighteners and feeders, transforming the uncoiler into an all-in-one system ideal for high-volume production.
Modern uncoilers are sophisticated in both construction and control systems, designed for maximum precision and durability.
- Frame: Built from high-strength beam steel, welded and shot-blasted for rigidity.
- Mandrel: Made from heat-treated chromium-manganese alloys with reinforced expansion arms.
- Hydraulic System: Controls expansion, braking, and feeding; operates at pressures up to 15 MPa.
- Control Cabinet: Features PLC controllers, servo interfaces, and operator touch panels for speed and tension adjustment.
- Coil Capacity: 3 to 50 tons (depending on model and design).
- Operating Speed: Up to 300 feet per minute in high-speed lines.
- Mandrel Expansion Range: 460mm to 520mm for standard coils, adjustable hydraulically.
- Feed Precision: ±0.2mm accuracy for consistent coil output.
High-performance uncoilers also include Variable Frequency Drives (VFDs) that optimize rotational torque while saving energy.
Before automation, coil handling utilized basic manual reels or mechanical unspoolers. Operators manually adjusted tension and maintained rotation. Although inexpensive, these conventional methods have multiple limitations in modern contexts.
- Tension Inconsistency: Manual control causes irregular feed tension, affecting downstream precision.
- Safety Hazards: Manually loaded coils expose operators to crush and springback risks.
- Production Delays: Coil replacement and realignment require frequent stops.
- Quality Variations: Uneven unrolling frequently causes surface scratches or distortions.
These inefficiencies prove costly in continuous production environments, where every moment of downtime reduces profitability.
Automated feed control drastically reduces setup times. In advanced systems, coil loading and securing can occur within minutes, compared to the hours of downtime associated with manual adjustments.
Advanced uncoilers employ dynamic feedback systems with electronic braking and tension control that automatically adjust to coil diameter changes. This ensures uniform thickness, perfect straightness, and defect-free product output.
Modern hydraulic uncoilers can safely handle coil weights exceeding 30,000 lbs, making them indispensable in high-volume metal fabrication industries.
Coil support rollers and auto-centering guides prevent edge damage and flattening during unwinding.
Multiple safety systems—light towers, infrared sensors, and emergency brakes—keep operators safe from sudden recoil or overload incidents.
Uncoilers today are compatible with Industry 4.0 standards, integrating with robotic feeders and real-time monitoring software for productivity analytics.
Uncoiler machines serve diverse sectors that rely on rolled metal materials:
- Automotive: Feeding steel panels for body and chassis manufacturing.
- Construction: Supplying coils for roofing panels and structural beams.
- Home Appliances: Processing aluminum or stainless-steel sheets for components.
- Aerospace: Producing consistent, defect-free lightweight alloy strips.
- Packaging: Ensuring precise roll-fed material delivery in automated packing lines.
Their reliability directly supports lean manufacturing principles by reducing scrap and minimizing setup downtime.
Built-in sensors record wear data from bearings, motors, and hydraulic subsystems, enabling predictive servicing to prevent unexpected failures.
Modern units allow wireless HMI control, enabling operators to manage operations from a safe distance or central control station.
Connected via industrial Ethernet, uncoilers can stream real-time data on feed rate, torque load, and temperature, supporting smart factory analytics.
Energy-saving VFD-controlled motors and regenerative braking cut energy costs, aligning with eco-conscious production goals.

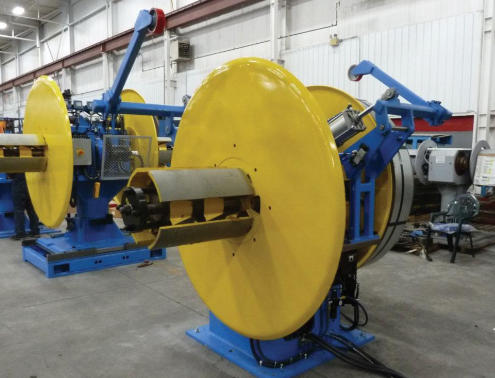

Recent models include dual-head uncoilers, where one coil loads while the other feeds, ensuring non-stop production. For instance, an 8-ton dual-head hydraulic system can unwind materials at speeds up to 45 m/min with automated switching between coils.
Other precision innovations include:
- Ultrasonic Sensors: Control decoiling speed dynamically.
- Hydraulic Pressure Stabilizers: Maintain consistent tension under varying coil diameters.
- Self-Lubricating Bearings: Minimize maintenance cycles while enhancing rotational consistency.
Such mechanisms reduce operator intervention while achieving unprecedented accuracy in feed control.
In automotive stamping lines, time and precision drive profitability. Using traditional coil handling could cause uneven tension, misalignment, and costly downtime. In contrast, integrating hydraulic uncoilers with servo-feeding systems ensures:
- Seamless coil transitions.
- Elimination of tension irregularities.
- Consistent feed speeds that match press cycles exactly.
Manufacturers report up to 30% productivity gains after switching to automated uncoilers combined with smart feed control.
Although the investment in a high-end uncoiler system may be significant, its ROI is compelling. The key financial advantages include:
- Reduced Labor Costs: Fewer operators required per line.
- Higher Throughput: Faster coil changeovers and continuous feeding boost production rate.
- Material Savings: Reduced scrap translates into direct cost recovery.
- Lower Maintenance Costs: Predictive diagnostics reduce machine downtime.
Payback periods for advanced uncoilers typically range from 12 to 24 months, depending on production volume and material type.
| Key Factor | Traditional Handling | Modern Uncoiler Systems |
|---|---|---|
| Material Loading | Manual | Hydraulic or Motorized (Automated) |
| Tension Control | Inconsistent | Sensor-Based Precision Control |
| Coil Capacity | Up to 3 tons | Up to 50 tons |
| Production Speed | Slow, manual rate | Continuous, up to 300 FPM |
| Safety Standard | Low | High with Multiple Safety Systems |
| Integration Capability | Limited | Industry 4.0 Compatible |
| Material Waste | High | Minimal |
| Operator Requirement | 2–3 per line | 1 operator or remote monitoring |
When comparing uncoiler machines to traditional methods, the difference is clear: uncoilers provide superior efficiency, better safety, and higher precision. They minimize downtime, reduce labor dependency, and support advanced manufacturing goals. In industries where time, accuracy, and quality define competitiveness, uncoilers represent not just a technological upgrade—but a strategic advantage.
Traditional coil handling remains viable for small-scale or non-automated production, but for modern facilities striving for higher output and refined precision, uncoiler systems stand out as the superior choice. They embody the essence of industrial evolution: efficiency, intelligence, and safety combined.
By automating coil loading, securing, and feeding, uncoilers eliminate manual delays, allowing materials to flow continuously through the production line with minimal human intervention.
Depending on the model, hydraulic uncoilers manage coils ranging from 3 tons to over 50 tons, making them suitable for both medium and heavy industries.
Yes. Most uncoilers integrate easily with feeders, straighteners, and press systems using standardized interfaces and programmable controller settings.
Safety sensors, interlocks, and remote operation reduce the risk of accidents from coil springback or misalignment during operation.
For any operation processing coils daily, upgrading delivers immediate productivity gains, higher quality consistency, lower waste, and long-term cost savings.
