Setting up a small punch press in your garage or home workshop can be a rewarding project that enhances your metalworking capabilities. Whether you want to create precise holes, shapes, or forms in sheet metal, a small punch press is a versatile tool that fits well in limited spaces. This comprehensive guide will walk you through everything you need to know—from selecting the right punch press to safely installing and operating it in your personal workspace. Along the way, you will find practical tips, visual aids, and video references to help you achieve a professional setup.
A small punch press is a compact machine designed to punch holes or shapes in metal sheets or other materials by applying mechanical force. Unlike large industrial punch presses, small punch presses are suitable for home workshops or garages due to their size and ease of use. They are often manually operated or powered by a small motor, making them ideal for hobbyists, fabricators, and small business owners.
Punch presses have been used in metalworking for over a century, evolving from simple manual devices to sophisticated hydraulic and electric machines. Early punch presses were hand-operated and used primarily in small workshops. With industrial advancements, hydraulic and electric punch presses became common, offering greater power and precision. Today, small punch presses combine traditional mechanics with modern technology to provide efficient and accessible metalworking solutions for home users.
Selecting the right small punch press is critical to ensure it meets your specific needs and fits your workspace. Here are some detailed considerations:
- Size and Footprint: Measure your available space carefully. Small punch presses vary from benchtop models to floor-standing units. A benchtop hand punch press is ideal for limited spaces and light-duty work, while floor models suit heavier tasks.
- Punching Capacity: Understand the maximum thickness and material types the press can handle. For example, some presses can punch thin aluminum sheets easily but struggle with thicker steel. If you plan to work with a variety of metals, choose a press with higher tonnage capacity.
- Operation Type:
- Manual presses provide excellent control and are cost-effective but require physical effort.
- Hydraulic presses offer more power and smoother operation, suitable for thicker materials or repetitive work.
- Electric presses combine power and speed with automation features, ideal for small production runs.
- Die and Punch Compatibility: A versatile punch press supports multiple die sets and punch sizes, allowing you to create different hole shapes and sizes. Check if the press uses standard tooling or proprietary systems.
- Build Quality: Look for presses with sturdy frames made of cast iron or steel to reduce vibration and increase precision. A well-built press lasts longer and maintains accuracy.
- Additional Features: Some presses include adjustable stroke lengths, foot pedals for hands-free operation, safety guards, and digital stroke counters. These enhance usability and safety.
For example, if you are a hobbyist working on light sheet metal projects, a benchtop manual punch press with adjustable stroke and a few die sets will suffice. For small business fabrication, a hydraulic or electric small punch press with higher capacity and automation might be more appropriate.
Proper preparation of your workspace is essential for a safe and efficient setup:
- Stable Workbench: Choose or build a sturdy workbench that can support the weight and force of the punch press without wobbling. Reinforce the bench if necessary.
- Adequate Lighting: Install bright, focused lighting over the punch press area to ensure precise alignment and safe operation.
- Clear Floor Space: Keep the area around the press free from clutter, tools, and debris to allow easy movement and prevent accidents.
- Power Supply: For electric or hydraulic small punch presses, ensure you have an accessible power outlet with the correct voltage and amperage. Use surge protectors if needed.
- Ventilation: Maintain good airflow to dissipate heat generated during punching and to reduce fumes if you apply lubricants or work with coated metals.
- Noise Control: Punch presses can generate noise during operation. Consider soundproofing or using ear protection to protect your hearing.
Before beginning installation, gather the following:
- Wrenches and screwdrivers for assembly and adjustments
- Clamps or bolts to secure the press to the workbench
- A spirit level to ensure the press is perfectly horizontal
- Lubricants such as machine oil for moving parts
- Safety equipment: gloves, safety glasses, and ear protection
- Punches and dies compatible with your press
- Measuring tools such as squares, calipers, and rulers for alignment
- Cleaning cloths and degreasers for maintenance
Having all these tools ready will streamline the setup process and help maintain safety.
Carefully unpack your small punch press and inspect all components for damage or missing parts. Read the manufacturer's manual thoroughly to understand assembly requirements and safety instructions.
Position the punch press on your workbench and secure it using bolts or heavy-duty clamps. A firmly mounted press prevents movement during operation, which is crucial for accuracy and safety.
Adjust the ram stroke so the punch travels just enough to fully penetrate the material and enter the die without damaging tooling. Use the depth adjustment screw or stop to set the bottom dead center point precisely.

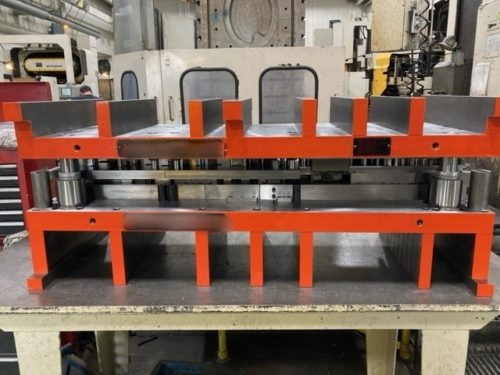

Insert the punch into the punch holder, lightly tighten the set screws, and install the die in its holder. Align the punch and die carefully to maintain even clearance around the cutting edges, which prevents premature wear and ensures clean cuts.
Manually cycle the press to check alignment and smooth operation. Use a thin plastic or nylon strip as a gauge to verify the punch enters the die without excessive force or misalignment.
Install all safety guards and shields provided with your punch press. Position foot pedals or hand levers within easy reach to maintain control. Never operate the press without these safety features in place.
Use scrap material to perform a test punch. Inspect the quality of the hole or shape and adjust the setup if necessary. This step helps avoid damaging valuable materials.
Operating a small punch press involves risks that must be managed through strict safety practices:
- Training: Ensure you fully understand the operation, setup, and emergency procedures before using the press.
- Protective Gear: Always wear gloves to protect your hands, safety glasses to shield your eyes from metal shards, and ear protection if noise levels are high.
- Keep Hands Clear: Use feeding tools or push sticks to position material, keeping hands away from the punch area.
- Inspect the Machine: Before each use, check for loose bolts, worn parts, or unusual noises that could indicate a problem.
- Emergency Stops: Familiarize yourself with the emergency stop mechanism and ensure it is functional.
- Avoid Loose Clothing and Jewelry: Loose sleeves, necklaces, or rings can get caught in moving parts, causing injury.
- Work Area Cleanliness: Keep the floor and work surfaces clean and free of oil or metal shavings to prevent slips and accidents.
- Proper Lighting: Maintain bright, shadow-free lighting to avoid mistakes and ensure safe operation.
- Use Guards: Never bypass or remove safety guards; they are designed to protect you.
- Stay Focused: Avoid distractions and never operate the press under the influence of alcohol or drugs.
To keep your small punch press operating smoothly and safely, follow these maintenance tips:
- Lubricate Moving Parts: Regularly apply machine oil or grease to bearings, slides, and pivot points to reduce wear.
- Tighten Loose Fasteners: Periodically check and tighten bolts, screws, and set screws to maintain structural integrity.
- Clean After Use: Remove metal shavings, dust, and dirt from the press and work area to prevent buildup that can impair function.
- Replace Worn Tooling: Punches and dies wear over time; replace them promptly to maintain punch quality and prevent damage.
- Inspect Hydraulic Systems: For hydraulic presses, check fluid levels and look for leaks regularly.
- Follow Lockout/Tagout Procedures: When performing maintenance, ensure the press is disconnected from power sources to prevent accidental startup.
- Store Dies and Punches Properly: Keep tooling in a dry, organized area to prevent rust and damage.
Setting up a small punch press in your garage or home workshop is a practical way to expand your metalworking capabilities. By carefully selecting the right press, preparing your workspace, following detailed setup steps, and prioritizing safety, you can achieve professional results in a compact environment. Regular maintenance will ensure your small punch press remains reliable and efficient for years to come. With the right knowledge and precautions, your small punch press will become an indispensable tool for your projects.
A small punch press can typically handle sheet metals like aluminum, steel, and brass, depending on its capacity. Always check the maximum thickness rating before use to avoid damaging the press or tooling.
Yes, many small punch presses can punch plastics, leather, rubber, and other soft materials. However, ensure the tooling is appropriate for the material to avoid wear or damage.
Proper alignment is achieved when the punch enters the die with even clearance all around without forcing. Using a thin plastic or nylon gauge during setup helps verify this alignment and prevents premature tooling wear.
Yes, but always follow safety guidelines, wear protective gear, and ensure emergency stops are functional. Avoid distractions and never operate the press if you feel unwell or fatigued.
Perform basic maintenance such as cleaning and lubrication after every use. Conduct thorough inspections monthly or after heavy use to check for wear and tighten loose components.
