In the industrial and metalworking sectors, machines that shape, form, or cut metal play pivotal roles in manufacturing processes. Among them, rolling machines and punch press machines are fundamental but serve very distinct functions. Understanding their differences is crucial for manufacturing professionals, engineers, and content creators specializing in industrial equipment to select the right tools for specific applications.
This article will explore the core differences between rolling machines and punch press machines, covering their working principles, main applications, advantages, and examples. At the end, you'll find relevant FAQs and a conclusion to summarize key points.
A rolling machine is a type of industrial equipment used primarily to bend and shape metal sheets or plates into curved forms such as cylinders, cones, or other rounded profiles. The process involves metal deformation through plastic bending using rollers.
Rolling machines operate by passing a flat metal sheet or plate between multiple rollers. A typical three-roll bending machine has two lower rolls and one upper roll. The upper roll applies downward pressure while the lower rolls rotate to feed the metal plate through. This combination of pressure and rotation causes the metal to plastically deform, gradually bending into the desired curved shape.
The upper roller is often hydraulically controlled to adjust pressure and achieve the required bending radius. The metal sheet typically undergoes multiple passes through the rollers to form the final shape. This process compresses and stretches different layers of the metal, creating a permanent deformation that results in a cylindrical, conical, or other curved form.
Rolling machines can also have four or more rolls for more complex bending tasks, and they are widely used to shape thick steel plates or other metals.
Rolling machines come in various configurations to meet different industrial needs:
- Three-Roll Bending Machines: Most common type, used for bending metal sheets into cylindrical and conical shapes.
- Four-Roll Bending Machines: Improve bending accuracy and reduce material slip by using an additional roll.
- Roll Forming Machines: Continuously shape metal strips into specific profiles, often used for producing long structural sections.
- Plate Rolling Machines: Specifically designed to roll thick plates into cylindrical shapes used in heavy industries.
- Metal Production: Used to produce sheets, plates, bars, and profiles from metal ingots, including steel, aluminum, and copper.
- Automotive Industry: Manufacturing vehicle body panels, chassis components, and structural elements.
- Construction Sector: Producing structural steel sections such as beams, columns, and channels.
- Oil and Gas: Bending large metal plates for oil tanks and pipeline components.
- Aerospace and Shipbuilding: Crafting curved panels and parts for aircraft and ships.
Rolling machines are fundamental to industries requiring metal bending with precision and consistency.

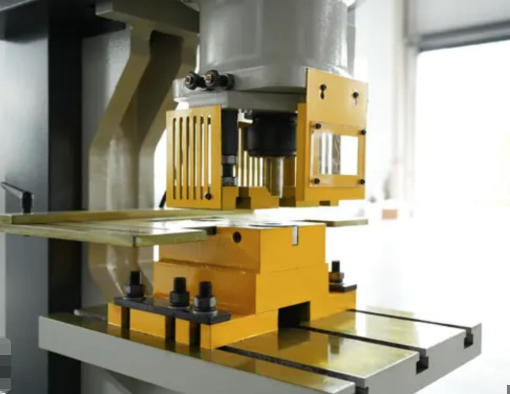

A punch press machine is a powerful industrial device used to *cut, shape, or form* sheet metal and other materials by applying a pressing force with a punch tool through a die. It is essentially a stamping machine designed for high-speed and precise fabrication of metal parts through punching, notching, piercing, slotting, or perforating.

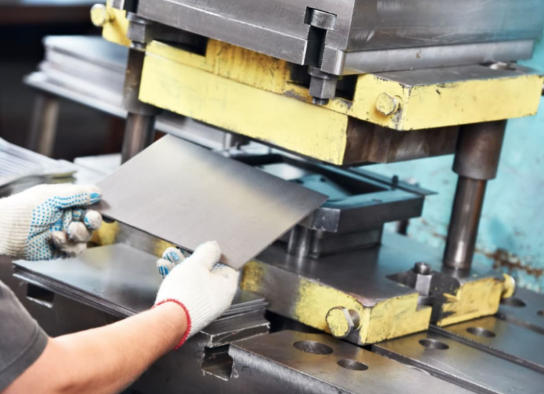

Punch press machines operate by vertically applying force. The machine's ram, which holds the punch tool, moves downward driven by mechanical, hydraulic, or servo mechanisms. The punch tool presses the metal sheet against a stationary die, cutting or deforming the material into the desired shape.
The punch press cycle includes several steps:
1. Setting up the machine with the corresponding punch and die.
2. Positioning the metal sheet on the worktable.
3. Engaging the ram to punch or form the metal.
4. Ejecting the finished part and returning the ram to its original position.
5. Repeating the process for high-volume manufacturing.
This vertical punching action allows the production of highly consistent parts, making punch presses indispensable in mass production.
There are several types of punch press machines depending on their power source, structure, and mode of operation:

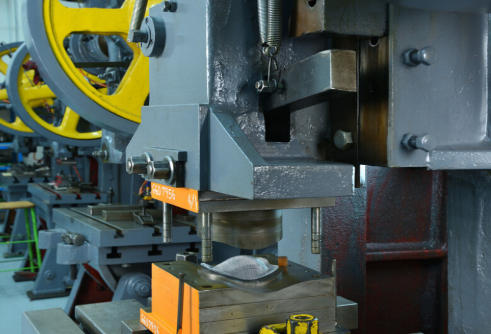

- Mechanical Punch Press: Uses a crankshaft mechanism for fast and repetitive punching.
- Hydraulic Punch Press: Uses hydraulic fluid pressure to provide controlled, consistent force useful for thicker materials or specialty applications.
- Pneumatic Punch Press: Uses air pressure for lighter punching tasks where speed and lower force are needed.
- Servo Punch Press: Uses an electric servo motor for precise control of punching speed, position, and force, ideal for advanced manufacturing needs.
- Automotive Manufacturing: Producing brackets, panels, and numerous components with precision.
- Electronics: Creating casings, panels, and intricate metal parts for devices.
- Construction: Fabricating structural elements such as frames and bolts.
- Consumer Goods: Mass-producing parts for kitchen appliances and other products.
- Aerospace: Manufacturing aerospace-grade components with high tolerances.
Punch presses provide speed, accuracy, and repeatability, making them ideal for processes requiring consistent metal part production.
| Aspect | Rolling Machine | Punch Press Machine |
|---|---|---|
| Primary Function | Bending and shaping metal into curved forms | Cutting, stamping, or forming shapes in sheet metal |
| Working Motion | Rotational (rollers rotate to bend metal) | Vertical pressing (ram moves up and down) |
| Material Formed | Typically metal sheets and plates for curvature | Sheet metal for holes, shapes, and stamped parts |
| Operation Type | Plastic deformation via bending | Shearing or forming via punch and die |
| Typical Applications | Cylindrical tanks, pipes, curved panels | Automotive parts, electronics panels, structural components |
| Production Volume | Suitable for custom and large part bending | Ideal for high-speed mass production |
| Precision Focus | Radius and shape accuracy in bends | Shape, hole size, and cut accuracy |
| Tooling | Rollers configured for bending | Dies and punches specific to shapes and cuts |
- Can handle heavy-duty bending of thick plates.
- Creates smooth, continuous curves with high dimensional accuracy.
- Suitable for large parts like tanks, pipes, and cylindrical vessels.
- Versatile with various roll configurations for different bend shapes.
- Enables customized bending configurations depending on production needs.
- Ability to produce complex, intricate cuts and shapes.
- High throughput with quick cycle times for mass production.
- Consistent repeatability for large runs of identical parts.
- Tool changes enable multiple operations in one setup (turret punches).
- Minimal operator intervention with automated loading/unloading capabilities.
When deciding between these machines for metal fabrication, consider these factors:
- Type of Operation Needed: Is your task primarily bending into curves or cutting/punching shapes?
- Material Thickness: Rolling machines can bend thicker plates, while punch presses are limited by punch and die strength.
- Production Volume: Punch presses excel in high-volume production runs with repetitive part shapes.
- Precision Requirements: Punch presses offer higher precision in cutting and shaping irregular profiles.
- Machine Setup and Tooling Costs: Rolling machines require fewer tooling changes but are slower for small parts; punch presses involve higher tooling complexity but offer speed for repetitive tasks.
- Part Size and Shape: Large cylindrical parts need rolling machines; complex flat shapes better suit punch presses.
Recent innovations include hydraulic and CNC-controlled rolling machines that allow programmers to set precise bending angles and radii with minimal manual adjustments. Automation integration enables handling heavy plates safely while maintaining production efficiency.
Modern punch presses increasingly use servo-electric drives for energy efficiency, better control, and reduced noise. CNC punch presses with turret tooling enable multi-shape production without changing machines. Additionally, press automation includes robotic material handling and quality inspection.
Rolling machines and punch press machines are integral to metal fabrication but serve very different functions. Rolling machines specialize in bending and shaping metal sheets into curves and cylindrical geometries, ideal for applications in construction, automotive, and oil sectors. In contrast, punch press machines excel at cutting, stamping, and forming flat sheet metal into precise shapes, optimized for mass production in automotive, electronics, and consumer goods industries.
Choosing between these machines depends on the manufacturing requirements — whether the need is to bend metal into curved forms or to cut and form parts with consistent shapes. Understanding these key differences empowers professionals to optimize their production processes with the right machinery.
Rolling machines can process a variety of metals including steel, stainless steel, aluminum, copper, and other metal alloys suitable for bending and shaping into curves.
No, punch press machines primarily punch, cut, and form metal shapes using dies and punches. They do not bend metal sheets like rolling machines.
Rolling machines are generally used for larger sheets and plates requiring bending. Small parts are typically produced using punching, stamping, or other forming machines.
Industries such as automotive manufacturing, electronics, aerospace, consumer goods, and construction heavily utilize punch presses for mass production of metal parts.
Yes, rolling machines are designed to bend thick metal plates, often exceeding 50mm in thickness, especially in hydraulic roll bending machines.
