A 40-ton punch press is central to many manufacturing operations due to its versatility and production consistency. Whether in sheet metal fabrication, automotive component stamping, or appliance manufacturing, this machine stands out for its balance between force, speed, and affordability. As technology progresses, the modern 40-ton punch press has evolved into multiple forms—mechanical, hydraulic, pneumatic, and servo-electric—each designed for different industrial scenarios. This comprehensive analysis aims to help factories determine which 40-ton punch press model truly delivers the best long-term value.

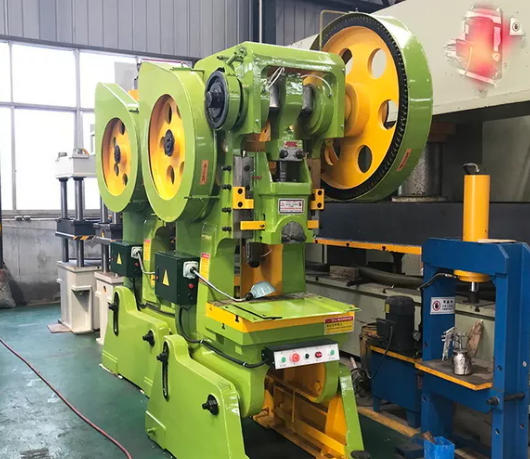

A 40-ton punch press is a machine that exerts up to 40 tons of pressure per stroke to punch, blank, or form metal sheets. It accomplishes this through either mechanical or hydraulic means. Mechanical presses use flywheel and crankshaft motion, while hydraulic ones rely on fluid compression.
The operation involves a consistent cycle: a motor rotates the flywheel, which stores kinetic energy. That energy is transferred through a clutch and crankshaft system, converting rotational momentum into a vertical ram movement. The attached punch tool presses the sheet metal into a die, producing precise cuts or forms.
The typical benefits of mechanical 40-ton presses include:
- Consistent tonnage during each stroke.
- High-speed operation suited for continuous production.
- Reliable alignment between punch and die.
- Simple mechanical structure, easy maintenance.
However, hydraulic models improve on flexibility—offering variable force, adjustable stroke lengths, and enhanced safety systems. These characteristics make hydraulic presses ideal for deep forming and custom-tool operations.
A general-purpose 40-ton punch press integrates multiple engineering parameters that define its performance capability. Technical specifications typically include:
| Specification | Common Range or Feature |
|---|---|
| Nominal Force | 40 Tons |
| Stroke Length | 20 mm to 170 mm |
| Strokes per Minute | 40–100 spm |
| Throat Depth | 400 mm |
| Motor Power | 7.5–15 kW |
| Table Size | 800 × 1200 mm |
| Ram Adjustment | 80 mm |
| Max. Die Height | 430–600 mm |
| Material Thickness Capacity | Up to 4 mm (Steel) |
| Control System | Manual / Pneumatic / CNC Servo |
Many industrial 40-ton models now include PLC electronic controls, integrated lubrication systems, anti-vibration pads, hydraulic overload protection, and safety light guards. Optional accessories such as die ejectors, strain gauge systems, and digital displays enhance both precision and operational safety.
A mechanical pressing system primarily uses energy stored in a flywheel, translating it into direct mechanical force. Contrastingly, a hydraulic press uses pumps and fluid reservoirs that generate pressure through piston movement, enabling variable tonnage output.
| Feature | Mechanical Press | Hydraulic Press |
|---|---|---|
| Power Source | Flywheel & Crankshaft | Hydraulic Pump & Cylinder |
| Force Output | Fixed (Maximum 40 Tons) | Adjustable & Controlled |
| Stroke Type | Fixed Stroke | Adjustable Speed & Dwell |
| Operation Noise | Louder | Quieter |
| Precision | High for repetitive jobs | Superior for custom forming |
| Energy Efficiency | Excellent for continuous production | Moderate, depends on fluid pressure |
| Best Application | Punching, blanking, coining | Forming, deep drawing, compression molding |
Mechanical presses achieve higher cycle rates, making them ideal for repetitive stamping of thin sheet metal. Hydraulic variants slow the stroke cycle but offer smoother force distribution, making them superior for workpieces requiring gradual shaping or variable pressure control.
This rugged press excels in speed and reliability for medium-scale production environments. It features an integrated motorized lubrication system and a one-piece welded steel frame for excellent rigidity. The press can achieve 50 strokes per minute and is often used in producing automotive parts, electrical housings, and tool accessories. Optional pneumatic feeders allow integration with automated lines.
A high-end servo-driven model, the EM 3612 ZRT embodies next-generation technology. Its programmable speed, power modulation, and digital tool management make it a top contender for precision sheet metal punching. It supports CNC programming for multi-axis control, allowing operators to perform hundreds of punching sequences per hour with minimal setup.
This CNC-compatible pneumatic press combines the speed of a mechanical design with the stability of pneumatic clutch and brake systems. With 55 strokes per minute and electro-pneumatic safety mechanisms, it suits large-scale continuous operations in home appliance and hardware factories. The robust cast iron frame further enhances its vibration resistance.
As a technological leader, the TruPunch 5000 sets the benchmark for automation. With stroke speeds exceeding 180 spm, real-time monitoring systems, and tool-changing robotics, it's built for mass production with zero downtime. The software integration permits unattended night shifts, significantly improving efficiency for large-scale manufacturers.
With global industries targeting carbon reduction, energy efficiency plays a growing role in choosing the right machine. Mechanical systems are more energy-efficient during continuous runs because they rely on momentum storage. However, servo-electric and hydraulic models excel at adaptive energy consumption, adjusting power draw to match force requirements.
Modern manufacturers are also incorporating:
- Variable frequency drives (VFDs) to optimize motor performance.
- Eco-hydraulic circuits that reuse hydraulic oil energy.
- Automatic standby modes for idle cycles, reducing electricity consumption by 15–30%.
These enhancements contribute to both environmental sustainability and long-term operational savings.
The versatility of a 40-ton press makes it a valuable asset across multiple sectors:
- Automotive Industry: Stamping brackets, brake pedals, and light housings.
- Electrical Components: Switch enclosures, terminal plates, mounting hardware.
- Aerospace Manufacturing: Precision lightweight aluminum parts.
- Packaging Industry: Container lids, metallic labels, and sealing rings.
- Construction: Window fittings, curtain wall components, and channel sections.
This wide-ranging adaptability explains why 40-ton presses remain among the most commonly installed tonnage classes globally.
Despite their durability, punch presses require systematic maintenance to ensure safe, long-term use. Regular inspections help avoid costly downtime and tool wear.
- Lubricate crankshaft bearings every shift.
- Inspect clutch lining and flywheel tension weekly.
- Re-align punch and die alignment every 10,000 stroke cycles.
- Clean debris and oil residues from the bolster to prevent slippage.
- Check oil pressure and fluid cleanliness monthly.
- Replace oil every 3000 working hours.
- Monitor seals and valve conditions for early leakage detection.
Operators should use double-hand safety controls, wear protective gloves, and ensure light curtains or guards are active during pressing operations. Regular safety audits and emergency-stop tests can prevent workplace injuries and damage.
Cost considerations vary widely. A base mechanical press might start at $8,000–$10,000, while advanced servo or CNC models can exceed $60,000. However, when factoring in:
- Production cycle efficiency.
- Maintenance savings.
- Labor reduction through automation.
- Energy efficiency improvements.
The initial cost difference decreases substantially. For small and mid-size workshops, hybrid mechanical-pneumatic models like the HARSLE J23-40T often provide the best return on investment. For large manufacturing lines, servo or CNC-equipped hydraulic models may offer greater long-term value through versatility and automation compatibility.
Machines today prioritize operator comfort and functional integration. Enhanced ergonomics promote consistent output and reduce fatigue. Features such as adjustable working tables, noise reduction insulation, foot pedal controls, and digital displays contribute significantly to improved usability. Sophisticated operator panels even allow beginners to manage multi-step punching sequences with minimal supervision.
Digital transformation has reached press machine technology. Many 2025 models come equipped with:
- IoT-enabled sensors for predictive maintenance.
- Cloud data tracking to monitor stroke count, power use, and tonnage history.
- AI system diagnostics to optimize tool-change intervals.
- Networked CNC interfaces for workflow automation.
These innovations align with Industry 4.0 trends, improving uptime by predicting part failures and dynamically adjusting stroke parameters for efficiency.
The comparison of mechanical, hydraulic, and servo-electric punch presses reveals that no single 40-ton model fits every production need. While the HARSLE J23-40T remains a market favorite for cost-effective high-speed operations, manufacturers seeking automation and versatility may lean toward the Amada EM 3612 ZRT or Trumpf TruPunch 5000. On balance, the best value depends on the specific production scale, budget constraints, and precision requirements.
A careful evaluation of features, maintenance, and energy efficiency ensures that your chosen press machine delivers consistent productivity and profitability for years to come.
A 40-ton punch press is ideal for mild steel, stainless steel, aluminum, copper, and brass sheets, generally up to 4 mm thickness.
Hydraulic presses offer greater flexibility through adjustable stroke and variable pressure, while mechanical presses are faster and more efficient for repetitive stamping.
For mechanical models, perform lubrication daily and full mechanical inspections quarterly. Hydraulic models require regular oil analysis and filtration checks.
Yes, many contemporary presses feature PLC or CNC control for programmable punching operations and automated feeding systems.
When properly maintained, mechanical presses can last 15–25 years, while hydraulic or servo models typically exceed 20 years due to reduced mechanical wear.
